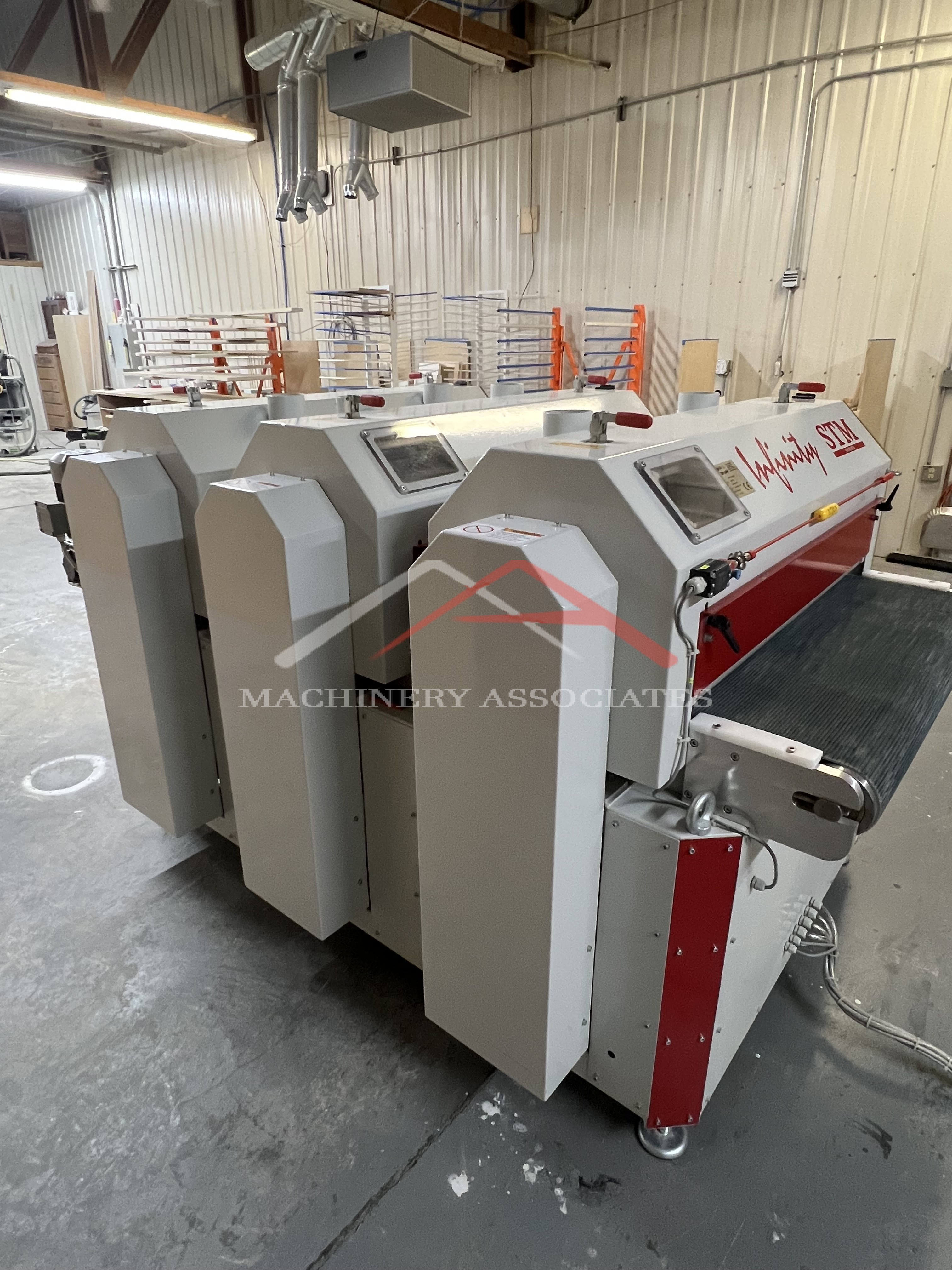

Stanza/ALPHA-BRUSH INFINITY 3S-1350 BRUSH SANDER

Improve the QUALITY and the CONSISTENCY of your sanding with a reduction in LABOR CONTENT!

Part Thickness 6-100mm (.25-4”)                                                                                Part Width (up to) 1350 (52")                                                                                      2,2 KW motors for sanding media ( speed 100-700 rpm ) Easy changing of abrasives.    0,75 kw Conveyor Motor
Heavy duty construction
Digital height readout

L: 2350mm x W: 1800mm x H: 1375mm (93” x 71” x 54”)

The Innity machine is the perfect solution for small to medium custom size production. It is built with heavy duty motors, components & frame designed for years of demanding use & can be used in the wood, metal, plastic & composite industry. The machine is designed with an interchangeable system, that will allow fast changing of the different units for different applications. The different units are easily changed by lifting up the front cover, then lifting the two handles on top & slide the unit into a trolley for easily moving or storage.
The machine has separate adjustable speed control for each unit as well for the conveyor. The height adjustment is done by turning a handwheel & measured down to 0.1 mm with electrical SIKO counters. (Can be set to US or Metric). The machine is already prepared with vacuum table outlet so an externalvacuum fan can easily be connected.
