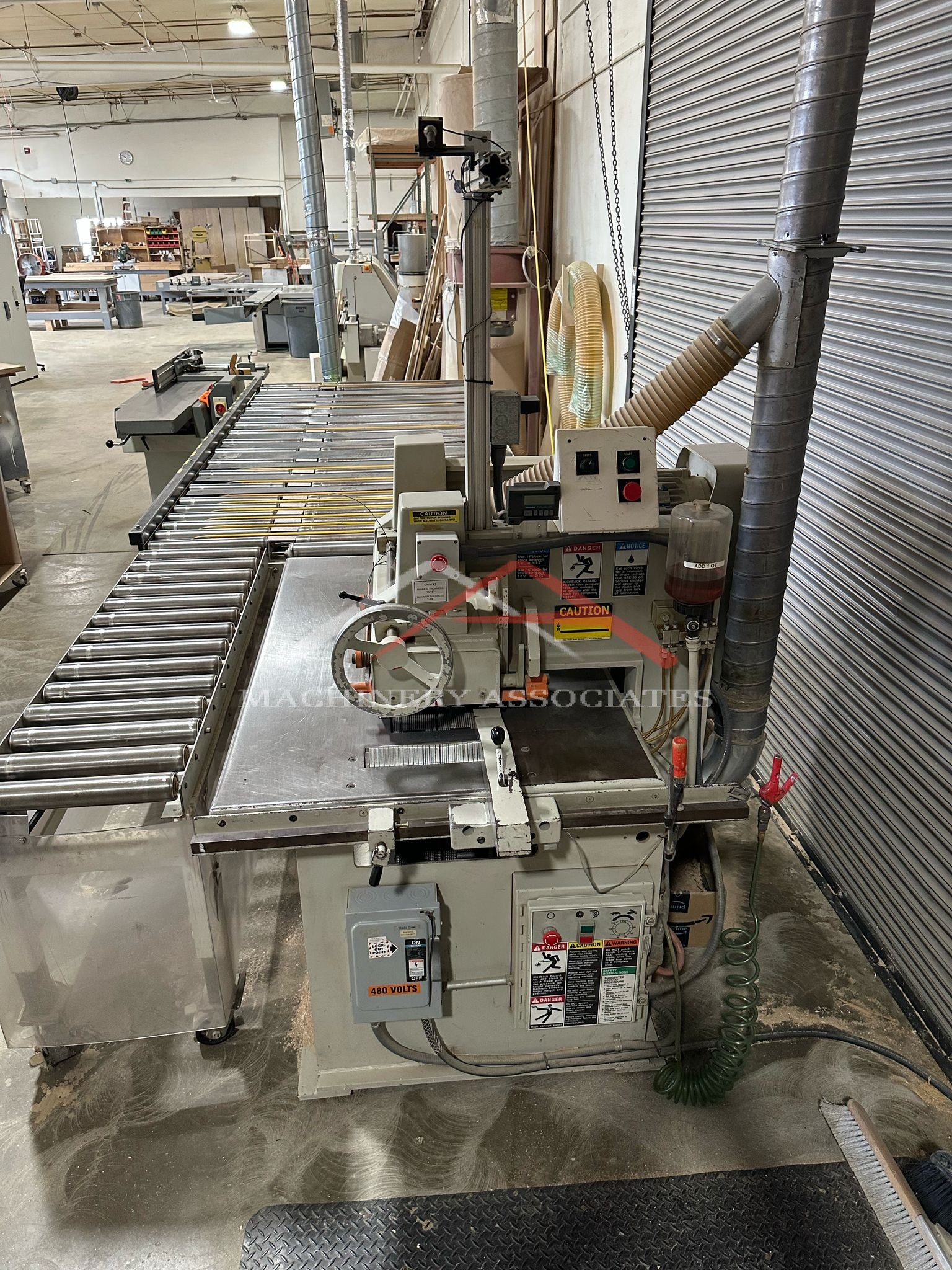

Diehl ESL20 Straight-Line Rip Saw w/Thomas 60X144X5 Return Conveyor
Well taken care of and in beautiful condition!!
| MA ID: | RSL - 14348 |
| Price: | $16,900.00 |
| Category: |
Rip Saw - Single (straightline) |
| Manufacturer: | Diehl |
| Model: | ESL 20 |
| Year of Manufacture: | 2000 |
| Condition: | Very Good |
| Electric: | 460 Voltage 60 Cycle 3 Phase |
|
Diehl ESL20 Straight-Line Rip Saw w/Thomas 60X144X5 Return Conveyor
10 HP 3490 RPM belt driven fixed arbor main motor 1 HP 1,800 RPM feed drive has a fixed speed of 60 FPM 16″ Max. blade dia. allows for 2-1/2″ max. material thickness 14″ blade will allow for up to a 1-1/2″ max. material thickness 19″ of clearance (@throat) 37″ X 56″ Table A laser is attached to a stand for to mark lumber in the location of the blade. A proscale is added on the machine for more accurate fence location Machine has central lube. |
|
| Shipping Footprint: | 16 (length) x 8 (width) x 5 (height) |
| Weight: | 6000 lbs |
