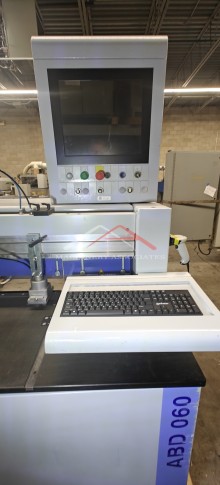

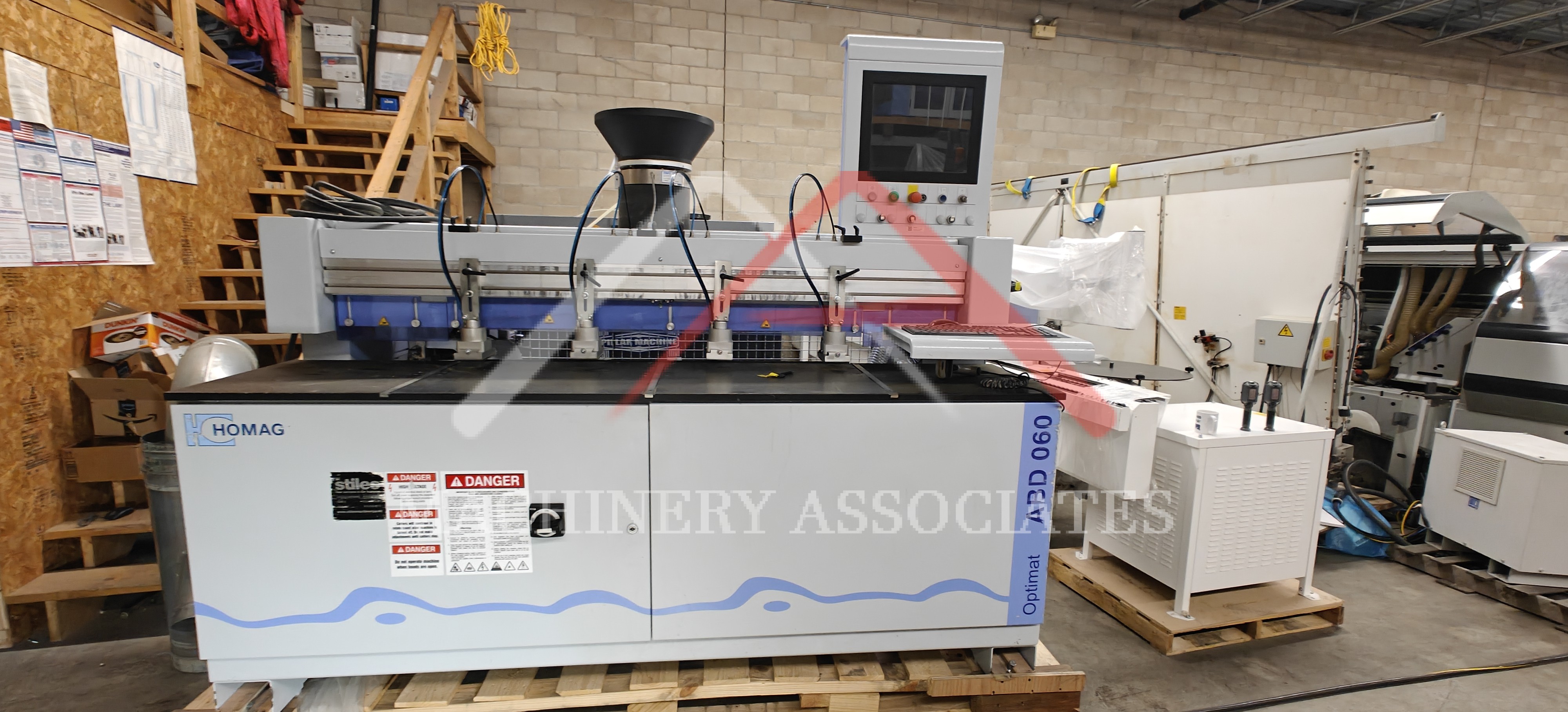

Homag Drillteq ABD 060 Drill and Dowel Inserter
Later model ABD 060....well taken care of.
| MA ID: | BGD - 14323 |
| Price: | $27,900.00 |
| Category: |
Bore/Glue/Dowel |
| Manufacturer: | Homag |
| Model: | ABD 060/12 BC |
| Year of Manufacture: | 2017 |
| Condition: | Very Good |
| Electric: | 480 Voltage 60 Cycle 3 Phase |
|
2017 Weeke ABD 060 Drill and Dowel Inserter
Panel Dimensions Length (Max)=1250mm (49") - (Min)= 20mm (.79") Width (Max)=800mm (31.5") - (Min)= 50mm (2") Thickness (Max)= 60mm (2.36") - (Min)=10mm (.39") Horizontal Spindle(s) - 3 Rotation Speed of Spindle - 7500rpm Drill Shank - 10mm Drill Length - 70mm Dowel Driver - 1 Dowel Diameter - 8mm Dowel Length 30 + 35mm CNC Control - PC based with WoodWOP7 Programming. ABD Work Software Tool Database Production List Software Schuler MDE Basic (Machine Maintenance Software "LinkRite" Software was also optioned on this machine
Barcode Control Package
|
|
| Shipping Footprint: | 8' 6" (length) x 5' (width) x 6 (height) |
| Weight: | 2500 lbs |
