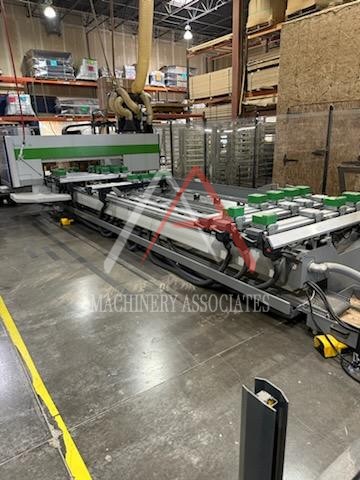

Rover A 1659 Pod & Rail 5 AXIS CNC
2016 Biesse 5 Axis CNC - Great Condition - Lots of high production features - Spare fresh factory rebuilt electro-spindle included!
| MA ID: | RC5 - 14149 |
| Status: | Archived |
| Price: | $60,000.00 |
| Category: |
CNC Router (5-axis)Point to Point |
| Manufacturer: | Biesse |
| Model: | Rover A 1659 |
| Year of Manufacture: | 2016 |
| Condition: | Very Good |
| Electric: | Multi:380/400/415 Voltage 60 Cycle 3 Phase |
|
Machine Description: 17.4 Hp Liquid Cooled HSK 63F 5 AXIS Main Spindle 24,000 RPM Max Included as a spare: New factory rebuilt Spindle! NC Controlled 12 Position Dust Hood C AXIS - Full rotation - 18RPM B AXIS - Full rotation - Non-stop Maximum Angle Undercut 10 Degrees B axis rotation @ 16RPM BH29 Boring Head W/Auto-Lube - VS Control to 6K RPM Grooving saws - 1 in X - 1 in Y 13 Vert Spindles - 8 in X - 5 in Y 5 x Horizontal Double Output Spindles - 3 in X - 2 in Y 1 Sawblade 120mm DIA 16 Position Onboard Revolving Tool Changer Tool Length Presetter Additional Z carriage for back operating units controlled by an independent Z axis. Working Fields** X = 5920 mm Y = from 1580 to 1660 mm, according to working conditions Z = 200 mm - 5 axes unit and boring unit, with modules H=74 mm Z = 245 mm - 5 axes unit and boring unit, with modules H=29 mm Axes stroke** X = 6346 mm; Y = 2294 mm; Z1 = 515 mm: Z2 = 371 mm. Unit Option: To allow panel panel with dimension in Y up to 2100 mm. Unit Option: The NC lifts the safety strips during the phases of loading/unloading and operating unit positioning. Panel Supports (NC Controled and Positioned)** For safe loading/unloading of panels 8 ATS panel supports SA working table (Set-Up Assistant)** Manual working table positioning system aided by direction and position lights. Vacuum 300 m3/h at 60 Hz BSolid Software - 5 AXIS Machining Belt Conveyor For Chip Removal MultiTap Transformer Remote keypad Centralized Automatic Lubrication Light Barrier Safety System Pendulum machining capable **COMPLETE FACTORY SPECS AVAILABLE ON REQUEST |
|
| Weight: | 12000 lbs |
Please confirm all data before committing to a purchase.
*Subject to credit approval. Additional programs available.
