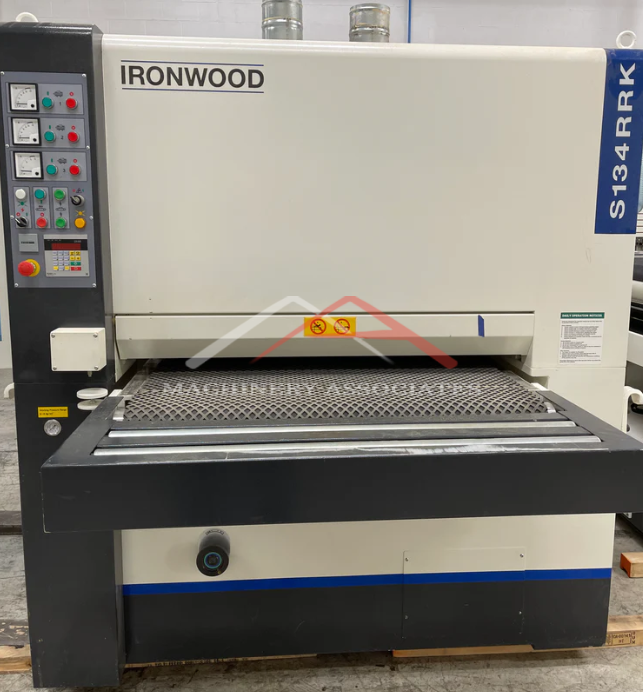

Ironwood S134RRK 3 Head 42" Wide Belt Sander

Very clean, well maintained, comes from a bank repo

MA ID: SWM - 14132
Status: Archived
Price: $32,500.00
Category:

Wide belt and drum (Multi contact)

Manufacturer: Ironwood
Model: S134RRK
Year of Manufacture: 2020
Condition: Very Good
Electric: 460 Voltage 60 Cycle 3 Phase
Ironwood Wide Belt Sander

Specifications:

Working width max.: 1070 mm (42”)

Conveyor belt width: 1100 mm (43”)

Abrasive belt width: 1100 mm (43”)

Abrasive belt length: 1900 mm (75”)

Work piece thickness min.: 3 mm (1/8”)

Work piece thickness max.: 150 mm (5.9”)

Work piece length min.: 450 mm (17.5”)

Variable conveyor speed: 3.6 – 14 MPM (12 - 46 FPM)

Feed motor: 3 HP

Table rise/fall motor: ½ HP

Head #1: 250mm steel contact roller: 20 HP 65 fps belt speed

Head #1: Rotation direction: Against feed

Head #2: 250mm 85 shore rubber contact roller: 20 HP 65 fps belt speed

Head #2: Rotation direction: With feed

Head #3: Combination head – 140mm 65 shore rubber contact roller with felt pad: 15 HP 40 fps belt speed

Head #3: Rotation Direction: Against feed

Dust collection requirements: 3,070 CFM

Dust outlet – head #1: 2 ports | 123 mm (5”)

Dust outlet – head #2 and #3 (shared): 3 ports | 123 mm (5”)

Compressed air requirements: 90 PSI

Air consumption per cycle: 4 CFM

Air jet belt cleaning air consumption: 24 CFM


Shipping Footprint: 104 (length) x 86 (width) x 89 (height)
Weight: 8500 lbs
All Information including Photos and Videos are supplied by a 3rd party Source.
Please confirm all data before committing to a purchase.
*Subject to credit approval. Additional programs available.
