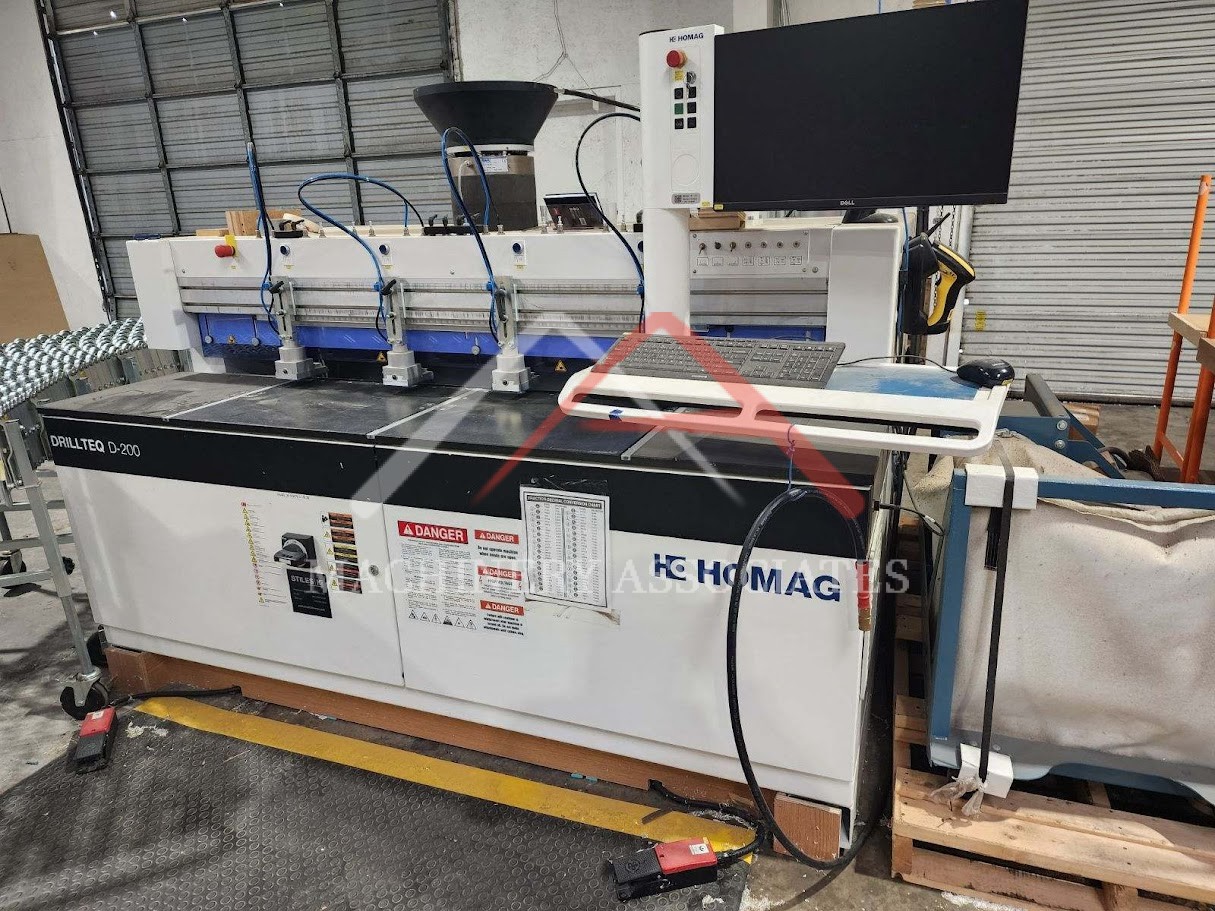

2022 Homag Drillteq D-200

Great machine ready in August 2024. Fully Functional!

MA ID: BGD - 14063
Price: $45,000.00
Category:

Bore/Glue/Dowel

Boring Horizontal

Manufacturer: Homag
Model: D-200
Year of Manufacture: 2022
Condition: Excellent
Electric: 480 Voltage 60 Cycle 3 Phase
Hours on meter: 1303
Homag Drillteq D-200

Machine Description:

(3) Independantly Selectable Horizontal Spindles

Rotational Spindle Speed 7500 rpm maximum

Drill Shank Diameter 10 mm (0.39")

Total Length of Drill Bit 70 mm (2.75")

Automatic Glue Sprayer (Programmable)

Automatic Dowel Insertion with Hopper Style Feeder

Dowel Diameter 8 mm (0.31")

Projection fixed according to dowel length

Length 30 mm (1.25") or 35 mm (1.38")

CNC Control PC-based with WoodWop Software

Manually Adjustable Clamping Cylinders 4

Fully Serviced by Stiles Group


Shipping Footprint: 14ft (length) x 8 (width) x 8 (height)
Weight: 7500 lbs
All Information including Photos and Videos are supplied by a 3rd party Source.
Please confirm all data before committing to a purchase.
*Subject to credit approval. Additional programs available.
