Intermac Genius 37 LM-AC 37 CNC Laminated Glass Cutting Machinery (UNUSED)

Just in to our shop! Rare to the market, Laminated Glass Cutting Machinery. This machine has been unused and is in original packaging!!

MA ID: GLS - 14002
Price: $115,000.00
Category:

Glass Machinery

Manufacturer: Intermac
Model: Genius 37 LM-AC 37
Year of Manufacture: 2012
Condition: Excellent
Electric: Multi Voltage 60 Cycle 3 Phase

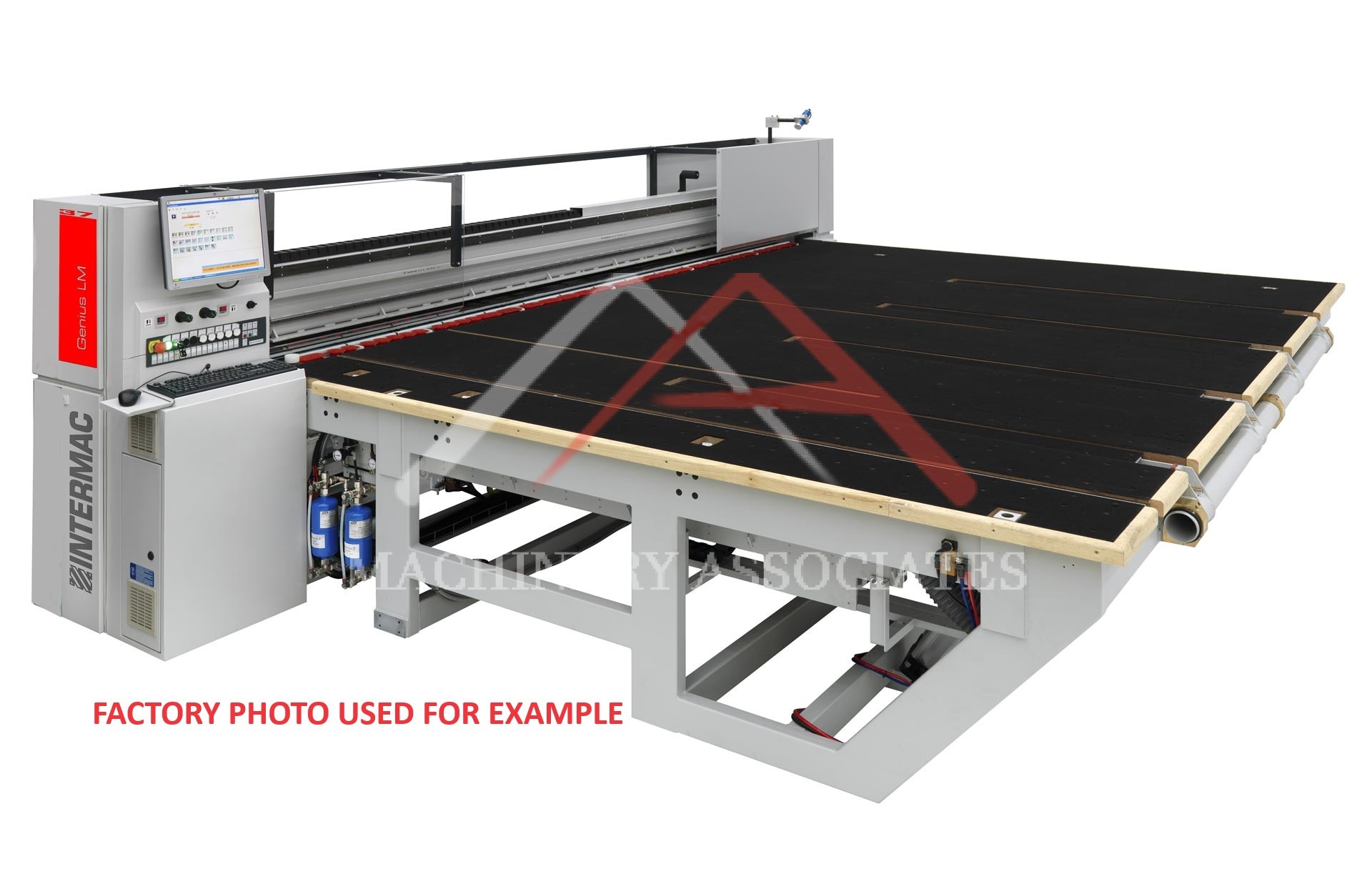

Intermac Genius 37 LM-AC 37 CNC Laminated Glass Machine Center



High Performance Automatic Line for Cutting, Breaking and Separation of Laminated Glass Sheets

   The line is made by combination of the following standard machines:
   • Tilting table with belts for Jumbo sheets Genius 37 ST
   • Laminated table Genius 37 LM-A.

We have unpacked the original factory shrink-wrapped and boxed packaging to make sure everything is still here The machine is complete and like new!

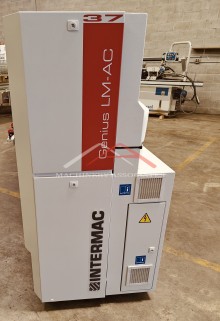

New Photos show the machine unpacked. Its all here and its in new condition!!



Technical data


The tolerances are measured on a 33.1 laminated glass sheet

Cutting carriage speed;  150 m/min.

Minimum cutting width;  150 mm

Maximum cutting width; 3710 mm

Minimum alignment to measure;  0 mm

Maximum alignment to measure; 3210 mm

Minimum breaking mm 60   (20 mm optional)

Minimum separation mm 60  (20 mm Optional)

Minimum workable thickness;  33.1  (22.1 Optional)

Max. workable thickness: 88.12 (1010.4  optional)

Plastic film thicknesses: 0.38 ÷ 4.56 mm

Monolithic glass thicknesses: 3 ÷ 10 mm

Squaring bridge precision:  + 0.50 mm

Precision straight scoring L ≤ 1m ;       0.5 mm

Precision parallelism scoring L ≤ 1m;   0.5 mm

Diagonal precision on square ≤ 1m;   2 mm

Diagonal precision cutting ≤ 60° on parallel sided of a rectangular
trapezoid made by a square ≤ 1m2 ;   2mm

Break-out perpendicularity ± 10% of glass thickness

Maximum shrinking of plastic film during separation ≤ 0,76 mm 1
Maximum shrinking of plastic film during separation > 0,76 ≤ 2,28 mm 2
Maximum shrinking of plastic film during separation > 2,28 mm 3
Maximum PVB overhang on original Jumbo sheet mm 0,3
Maximum PVB overhang on original Jumbo sheet for automatic
removal optional
mm 3

Moving Weights and Dimensions; Genius 37 LM -AC

GENIUS 37 LM Table #1: 16' 1" x 2' 11" x 4' 11" - 3608 LBS

GENIUS 37 LM Table #2: 14' 9" x 7' x 7' 10" - 3608 LBS

GENIUS 37 LM Bridge (CNC CUTTING MACHINE) : 18' x 3' x 5' – 4,500 LBS

Pallet #1 : 4' 9" x 2' 5" x 1' 10" - 110 LBS

Pallet #2 ; 6' x 4' x 3'  -  300 LBS.

MACHINE TRANSFORMER: 2' 7" x 1' 12" x 2' 11" - 550 LBS

LAMP TRANSFORMER: 1' 6" x 1' 6" x 2' 2" - 110 LBS

WOOD CASE: 2' 4" x 2' 4" x 2' 9" - 187 LBS



 Original factory spec available




Weight: 14000 lbs
All Information including Photos and Videos are supplied by a 3rd party Source.
Please confirm all data before committing to a purchase.
*Subject to credit approval. Additional programs available.
Click Herefor More Info or call Product Manager Gary Carney 877-622-4657 x101
