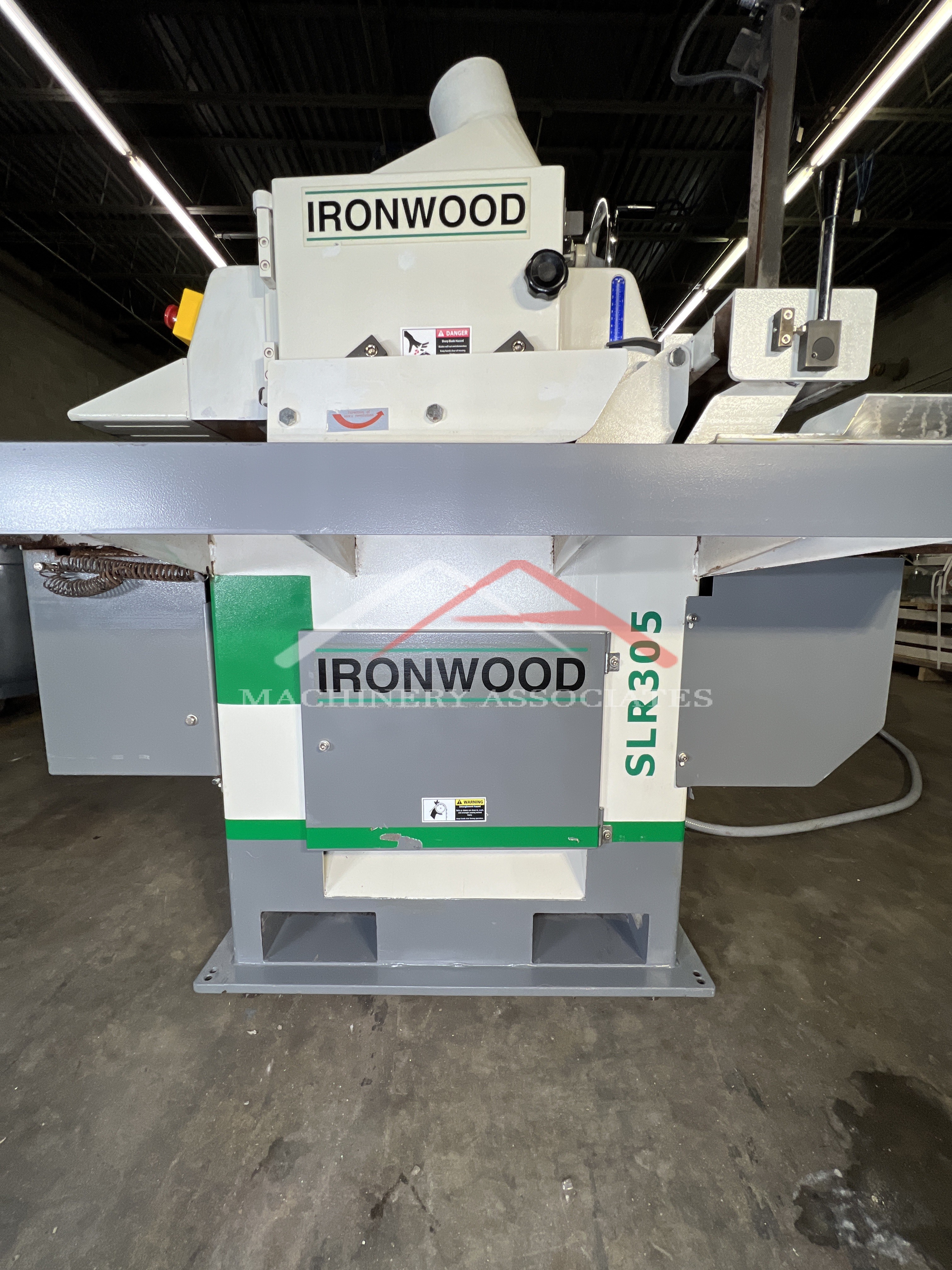

Ironwood SLR-305 Straightline Rip Saw
Low hour, clean unit. Priced to sell!
MA ID: | RSL - 13994 |
Status: | Sold |
Price: | $12,900.00 |
Category: |
Rip Saw - Single (straightline) |
Manufacturer: | Ironwood |
Model: | SLR-305 |
Year of Manufacture: | 2017 |
Condition: | Very Good |
Electric: | 230/460 Voltage 60 Cycle 3 Phase |
Ironwood Straightline Rip Saw
Minimum material length; 250 mm (10”) Material thickness Minimum; 10 mm (.39”) Maximum; 100 mm (4") Distance between blade and column; 466 mm (18.75") Number of hold-down rollers; (6) Work table height; 850 mm (32.5”) Saw arbor motor; 15 HP IE3 Saw arbor speed; 4100 RPM Saw blade diameter; 250-305 mm (10“-12“) Saw arbor diameter; 25.4 mm (1”) Variable feed speed; 15 - 131 FPM Feed motor; 1 HP Table area (w x l) 1100 mm (43”) x 1330 mm (52”) Machines Dimension; 2469 x 1150 x 1403 mm (97 x 45 x 55") Machine weight; 2,538 lbs Dust extraction; 614 CFM at 4,500 FPM Dust Extraction Port; 125 mm (5")
Laser Line mounted Chain is in incredible condition. The machine is ready to work
|
|
Shipping Footprint: | 8 (length) x 5 (width) x 5 (height) |
Weight: | 2500 lbs |
Please confirm all data before committing to a purchase.
*Subject to credit approval. Additional programs available.
