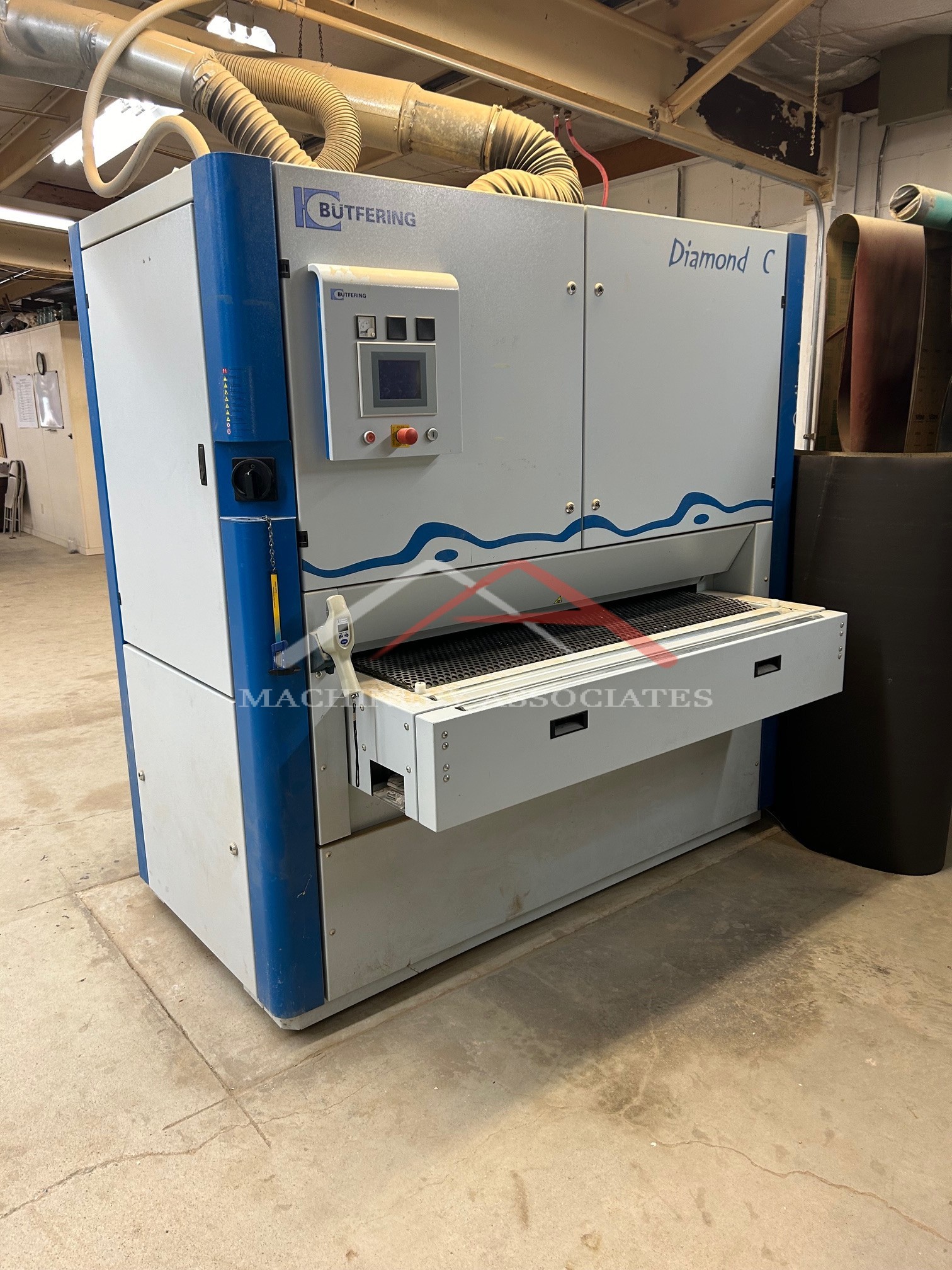

53" 1 Head Butfering Veneer/Sealer Sander w/Electronic Segmented Platten

550 LOW HOURS!! 1350mm Single Head Combi Veneer/Sealer/Finish Sander with VS Belt, 25mm ESP, Vacuum Bed, Constant Pass Line, Cleaning Brush

MA ID: SW1 - 13949
Price: $35,000.00

Wide belt and drum (single)


Manufacturer: Butfering
Model: Optimat SCO 113/C/Diamond
Year of Manufacture: 2005
Condition: Excellent
Electric: 230 Voltage 60 Cycle 3 Phase
Hours on meter: 550


Working width: 1350 mm - 53"

Abrasive belt changing side: Left

Workpiece thicknesses from 3 to 160mm

Equipment features:

1 combination head with:

- automatic head locking

- variable frequency drive controlled cutting speed 2 - 18 m/s

- automatic positioning (lifting) of profiled steel contact roller, with grit size                 compensation for calibrating.

- electronically controlled segmented pad, patented CpS 2 system, 25 mm        segments

  for high tolerance compensation for fine sanding and lacquer sanding

- program controlled sanding pressure

- air- jet belt blower, activated by the workpiece

- Abrasive belt width: 1370 mm - 54"

- Abrasive belt length: 2150 mm - 84.6"

- constant pass-line (900 mm) by adjustment of upper machine frame via        four large  diameter threaded spindles

- Vacuum table, (fan inside the machine)

- automatic thickness setting device directly on the machine

- ME 5000 wireless handheld thickness caliper

- protected storage space for spare sanding inserts

- soft start and maintenance-free electrical main motor braking

- electronic abrasive belt oscillation

- pneumatic tensioning of abrasive belt with integrated abrasive                      compensation

- Touch Screen with 125 programs for automatic machine control

- safety switch-off of machine during faulty operation

- possibility of program change when machine is in operation

- clear text error message in Control Panel

- V/S conveyer - feed speeds (2,5 - 13 m/min.)

- panel cleaning brush on the outlet side of the machine with separate drive    motor 0.75 kW

- telescopic workpiece feeding ro11er

- rubberized pressure rollers

- additional sanding inserts with soft felt for lacquer sanding - see pics

Dust Collection: Manifold w/gate included if requested on purchase

- 1 x 18O mm dia (head)

- 1 x 140 mm dia (panel cleaning brush)

- 1 x 100 mm dia (vacuum fan)

- Extraction volume: approx. 3'530 m3/h

**Voltage: 460 v / 60 Hz

Drive motor: 15 kW - 20HP

Total connected load: 19 kW

All electrical controls according to VDE regulations.

Machine conforms to all EEC machinery safety regulations (CE)

Shipping Footprint: 6 (length) x 8 (width) x 8 (height)
Weight: 2800 lbs
All Information including Photos and Videos are supplied by a 3rd party Source.
Please confirm all data before committing to a purchase.
*Subject to credit approval. Additional programs available.
