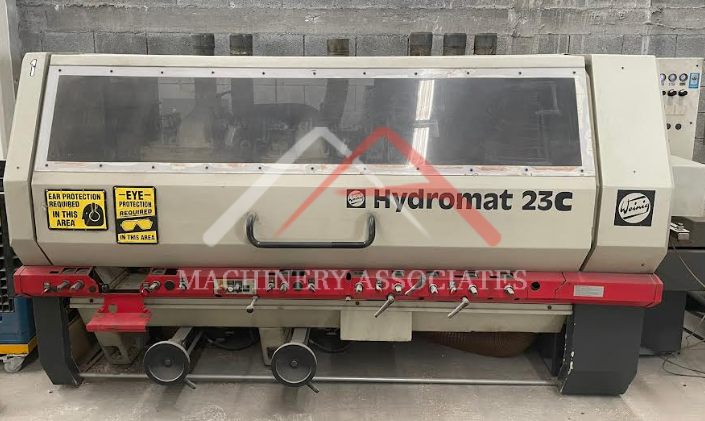

WEINIG HYDROMAT 23C JOINTED HIGH SPEED MOULDER WITH TOOLING

WEINIG HYDROMAT 23C JOINTED HIGH SPEED MOULDER WITH TOOLING. GOOD RUNNING CONDITION 200 FPM PLENTY OF TOOLING

MA ID: MFT - 13919
Status: Sold
Price: Call For Price
Category:

Moulder - Feed Through

Manufacturer: Weinig
Model: H23C
Year of Manufacture: 1998
Condition: Good
Electric: 460 Voltage 60 Cycle 3 Phase
Older moulder in Good condition; 200 FPM jointed, heavy HP and plenty of heads WHH.

CALL FOR AVAILABILITY



Spindle configuration: (B-R-L-T-T-B)

Working cap:  9- 1/16" x 4-3/4”

Motors: B-15 HP, R-15 HP, L-15 HP, T-25 HP, T-25 and B-20 HP.

Spindles: Dia. 2-1/8" at 6,000 RPM’s with mechanical readouts all spindles. Including pneumatic chipbreakers and pressure elements. Outboard bearings on spindles 1,4,5 and 6. Pedestal for spindle controls. Straight knife jointer spindle #4. Profile jointer's spindles 2,3,4,5 and 6.

Feed: Variable speed from 20-200 FPM; 15 HP motor. Remote pedestal with control panel for material handling operation. Powered table rollers (3); (1) at infeed (serrated), (1) between top spindles and (1) at outfeed.

Tables: Infeed table 4'0" with side pressure roller;  Auto-table lubrication pump. Chromed before and after first bottom. Tables in good condition.

Includes: Approximately (90) WHH


Shipping Footprint: 18 (length) x 7 (width) x 7 (height)
Weight: 12000 lbs
All Information including Photos and Videos are supplied by a 3rd party Source.
Please confirm all data before committing to a purchase.
