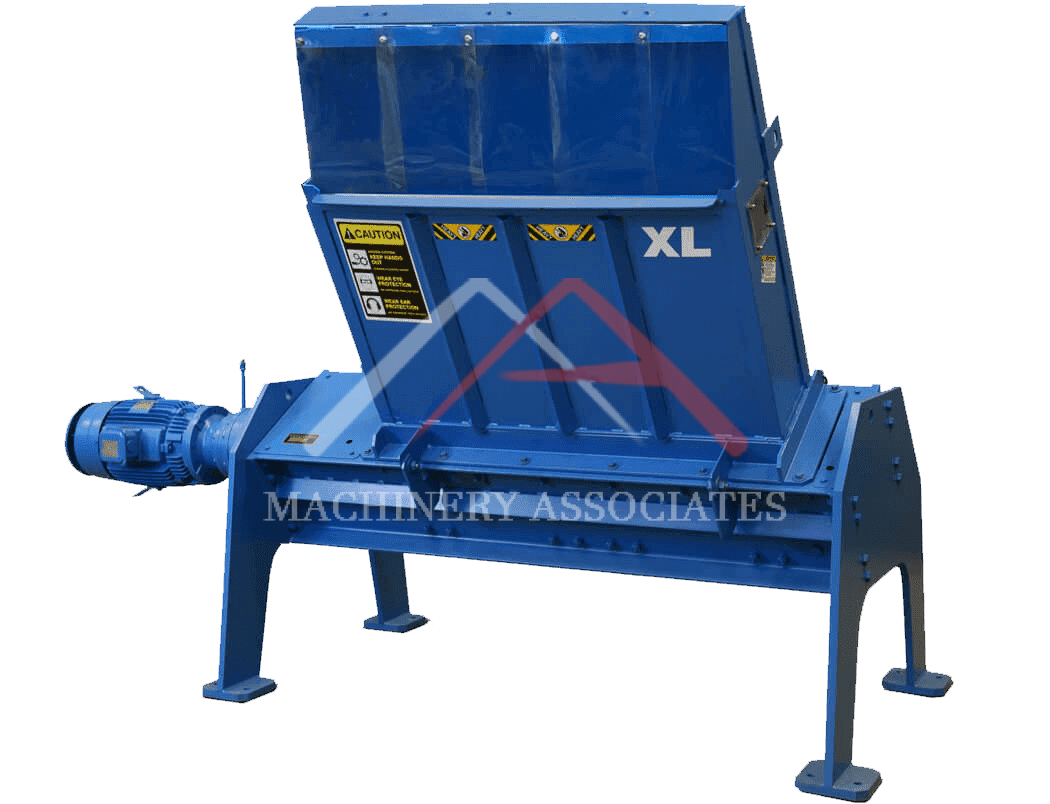

Franklin Miller TASKMASTER XL Pallet Shredder

NEW! pallet shredder! 20 TO 30 STANDARD SIZE NON-SHEATHED PALLETS PER HOUR!

MA ID:	RWG - 13902
Price:	$49,000.00
Category:	Wood Grinding Wood Hogs Grinders
Manufacturer:	Franklin Miller
Model:	TASKMASTER XL
Year of Manufacture:	2025
Condition:	New
Electric:	460 Voltage 60 Cycle 3 Phase
Franklin Miller Pallet Shredder Specifications: 20 TO 30 STANDARD SIZE NON-SHEATHED PALLETS PER HOUR! - Single Shaft Rotor- Carbon Steel Construction - 4" Diameter Alloy Steel Shafting - Heavy Duty Bearings - Infeed Hopper - Designed for up to a 48" Wide Pallet - Cutting Chamber: 14" x 52" Long - Heavy-Duty Stand - Carbon Steel - Painted; 2 Coats FMI Blue - Quickly Reduces Wood Pallets One at a Time Direct Gear Drive and Motor - Motor: 20 HP 1150RPM TEFC - Planetary Gear Drive - Flexible Couplings Automatic Reversing Controller - Nema 4 Steel Enclosure - PLC Driven - Includes Automatic Jam Jogging Sequence - Disconnect - Panel Mounted Estop Tested and Set up for Wall Mounting (Mounting and Interconnection Not Included) Optional Items - 230/3/60 vs 460/3/60 $1,232.00 DUMPING HOPPER $1,600.00 - Convenient Tilting Hopper for Unloading Wood - Formed Steel Construction, Welded and Painted - 1/2 Cu. Yard Capacity - Built-in Fork Pockets for Lifting with Fork Lift - Designed for use by a seated forklift operator - 62" Wide x 43" Dp x 17" Tall - Weight: 268# DISCHARGE CONVEYOR WITH MAGNETIC SEPARATOR $17,989.00 -Rear Discharge Inclined Conveyor - Gear Driven: 1-1/2HP 3ph. 230 v. 60 hz. - 36" Wide Cleated - Discharge to approx. 70" Height - Casters for Maintenance - Magnetic Head Pulley - Discharge 1: For wood - Discharge 2 -For Ferrous Materials (Nails) with stainless steel chute
Shipping Footprint:	8 (length) x 8 (width) x 5 (height)
Weight:	3000 lbs
