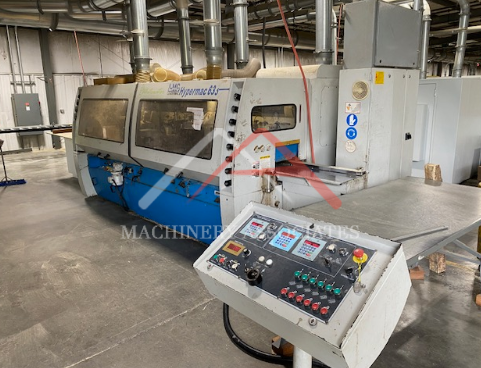

LEADERMAC HYPERMAC 633 13" THROUGH FEED MOULDER

LEADERMAC HYPERMAC 633 13" THROUGH FEED MOULDER WITH 6" X 13" WORKING DIMENSIONS. STILL IN PRODUCTION.

MA ID: MFT - 13862
Price: Call For Price
Category:

Moulder - Feed Through

Manufacturer: Leadermac
Model: LMC H633
Year of Manufacture: 2005
Condition: Good
Electric: 460 Voltage 60 Cycle 3 Phase
Seller has been running thick flooring and treads up to 4" x 12". Still in production .

Spindleconfiguration:(B-T-R/L (OPPOS) -T-B) Opposing Right/Left spindles.

Workingcap:13”x6”

Motors:B-20HP,T-30HP,R-15HP/L-20HP(OPPOSING),T-25HP,andB-25HP.

Spindles: Dia. 1-13/16” at 7,200 RPM’swith mechanical readouts all spindles. Rex 705B QUIK TRUSET for left and top spindles. Including pneumatic chipbreakers and pressure elements. Vertical spindle travel 3.17" Radial up/down. Outboard bearings on spindles 1,2,5 and 6.

Jointer(s): Straight knife jointers- Top heads 2 and 5; bottom 6. Profile jo inters Right, left and second top. Incomplete Cassette set up stand.

Feed:VFD speed from 20-200 FPM; 15 HP motor. Remote pedestal with control panel for material handlingoperation. Powered rollers (2) from top and (1) bottom roller prior to first bottom. Additional rollers between top and after last bottom.

Tables: Infeed table 4' with side pressure roller; chromed tables, fences and
chipbreakers. Auto-table lubrication pump.

NOTES: 3 of 6 motors have been rebuilt in last 1 ½ years – Quick Truset replaced but does not function. Heads included.


Shipping Footprint: 18 (length) x 7 (width) x 7 (height)
Weight: 16000 lbs
All Information including Photos and Videos are supplied by a 3rd party Source.
Please confirm all data before committing to a purchase.
*Subject to credit approval. Additional programs available.
