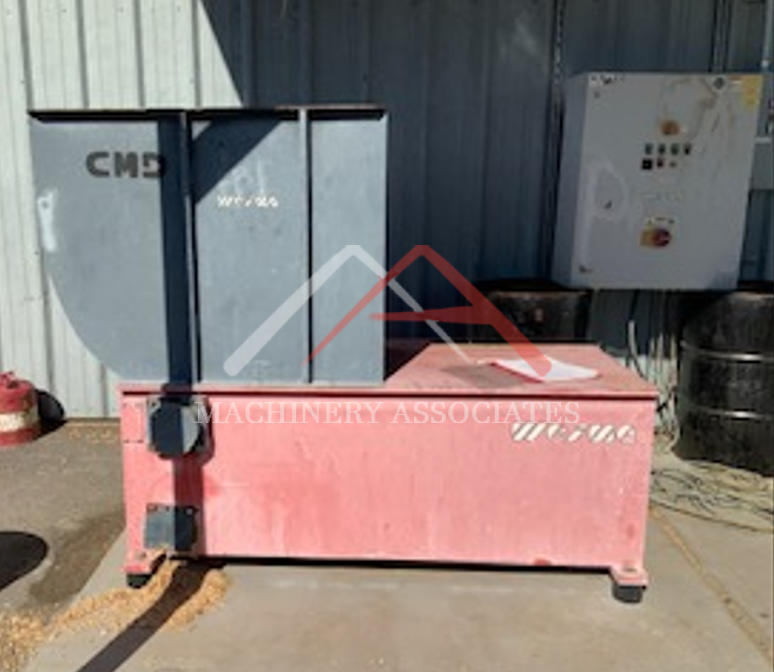

2015 WEIMA WL4 Wood Waste Scrap Grinder

2015 WEIMA WL4 Wood Waste Scrap Grinder - In good working order, sun faded paint due to area of operation.

MA ID: RWG - 13807
Price: $15,000.00
Category:

Wood Grinding

Manufacturer: Weima
Model: WL4
Year of Manufacture: 2015
Condition: Good
Electric: 460 Voltage 60 Cycle 3 Phase
Hours on meter: 1246
WEIMA Scrap Grinder. Wood waste grinder. Dense Foam. Recycling

WEIMA Wood Waste Scrap Grinder

Specifications:

Hopper Configuration: 3 straight sides with curved front wall

Machine Opening: 23.6″ x 41.3″ (600 x 1,050 mm)

Hopper Volume: 0.74 yds³ (0.6 m³)

Rotor: “V-Rotor”

Rotor Diameter: 10.24″ (260 mm)

Rotor Length: 23.6″ (600 mm)

Rotor Speed: 80-125 RPM*

Type of Cutter: 4X indexable concave shape

Size of Cutter: 1.57″ x 1.57″ (40 x 40 mm)
# of Cutters: 28
Extraction Requirements: 1200 cfm, 6.25″ (160 mm) diameter
Weight: 2900 lbs. (1,300 kg)
Power: 460 V / 60 Hz / 3 Phase
Screen: 3/4″ (15/20mm)
Output**: 600-800 lbs/hr (250-350 kg/hr)

INCLUDED with WL(K) Series (4-8):

Control Panel with Star Delta Starter and 16 ft. Cable Bundle
Anti-Vibration Feet
V-Rotor
Two (2) Rows of Rotor Knives
Reverse Counter
Fast Hydraulic
WEIMA Gearbox with Limit Switch


Shipping Footprint: 8 (length) x 4 (width) x 6 (height)
Weight: 2900 lbs
All Information including Photos and Videos are supplied by a 3rd party Source.
Please confirm all data before committing to a purchase.
*Subject to credit approval. Additional programs available.
Click Herefor More Info or call Product Manager Justin Drake 616-278-0443
