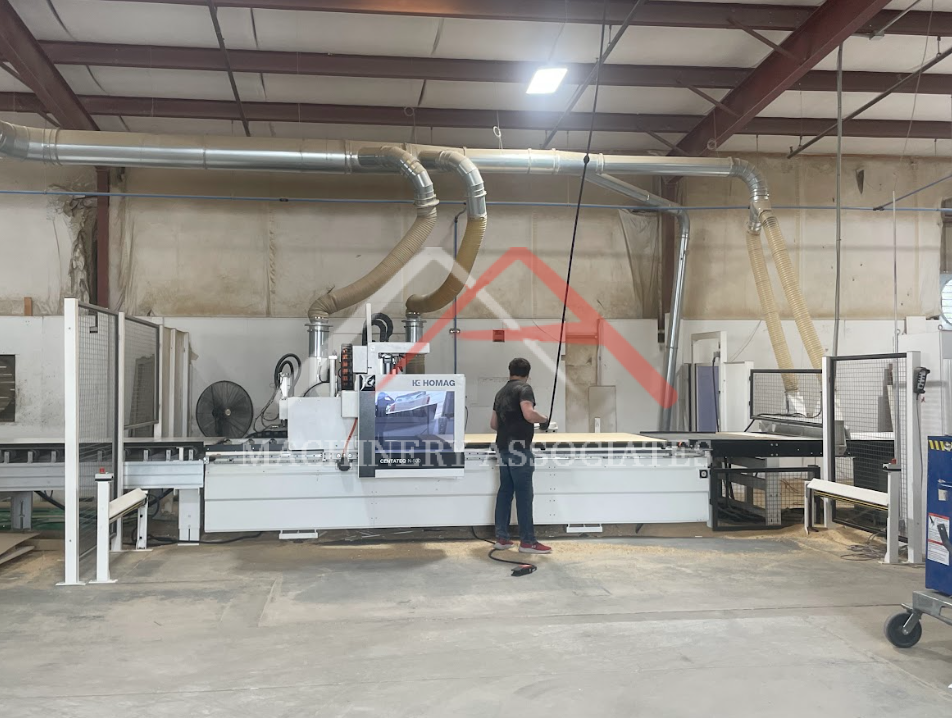

2019 Homag 5 by 10 CNC Router setup w/ Intellistore Infeed and Conveyor OutFeed

Very Solid Homag CNC Router. Infeed is setup for a storage retieval system. Sandard outfeed! Available June 2024.

MA ID: RC3 - 13773
Price: Call For Price

CNC Router (3-axis)

Manufacturer: Homag
Model: CENTATEQ N-500/510
Year of Manufacture: 2019
Condition: Very Good
Electric: 480 Voltage 60 Cycle 3 Phase
Hours on meter: 4951 (October 18, 2023)

call for availability


Machine Description:

System Load and Unload Features

Intellistore Roller Bed for Storage System Loading

System has Rails and Pins to Load and Locate Sheets

Loading System Loads Into 4 Independant Work Zones

Gantry Mounted Unload Push off Device w/ Table Sweep Included

Transfer Converyor w/Additional Dust Collection From Above

CNC Router Features

5 by 10 Matrix Grid Vacuum Table (122 by 61 actual size)

8 Selectable Vacuum Zones

18 Hp Main Spindle Ceramic Bearings 24,000 Rpm Max HSK63F

Automatic Airblast

360 Degree Interpolating C AXIS

Flex5 Agregate Compatible

14 Position ATC

21 Spindle Boring Head Vaiable Speed 1,500 - 7,500

2 Vacuum Pumps

Windows 7

Intellistore Software and PLC Communications

Barcode Software and Reader

WoodWop & Software

Handheld Operator Pendant

Light Barrier Saftey System on Front of Machine

Available June 2024

Weight: 15000 lbs
All Information including Photos and Videos are supplied by a 3rd party Source.
Please confirm all data before committing to a purchase.
*Subject to credit approval. Additional programs available.
