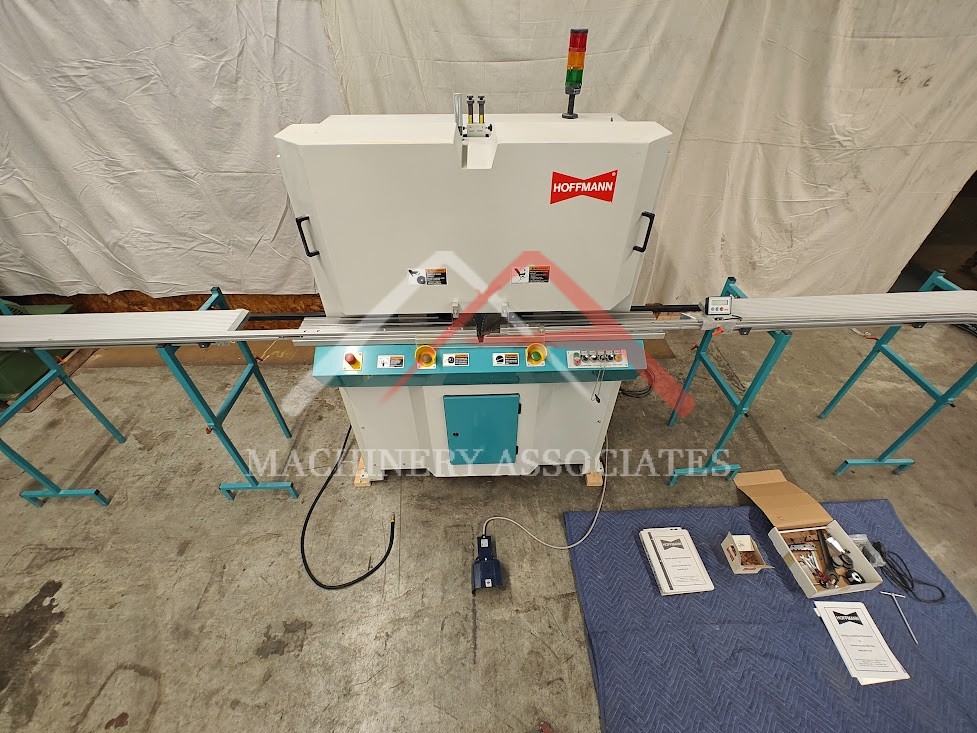

Hoffmann MS35-SF Double Miter Saw and Dovetail Jointing System

MA ID: SCM - 13539
Price: $11,500.00

Cutoff/Miter/Toe Notchers

Manufacturer: Hoffmann
Model: MS35-SF
Year of Manufacture: 2003
Condition: Very Good
Electric: 230 Voltage 60 Cycle 3 Phase

Power                           208-230 Volts, 3 P, 25 Amp
Air Supply                     90 psi – 3 cfm
Saw heads                    2 x 2 1/2 HP, 3,470 rpm
Saw blades                   350mm diameter, carbide tipped
Router heads                2 x 500 watt router motors
Installed router bits       Hoffmann W-2 solid carbide
Available router bits      Hoffmann W-1, W-2, W-3
Cutting capacity            3.5” width, 4” thickness
Cutting angle                fixed at 45°
Minimum length            5”
Maximum length           96”, longer lengths optional
Operation                      front panel safety controls
Controls                        electronic operation with PLC
Dust collection              2 x ports, 120mm diameter

Hoffmann MS35-SF, ready for operation, including infeed support table, right hand side manually adjusted length stop with digital display, W-2 solid carbide router bits installed, air filter-regulator-lubricator assembly installed, separate flow control valves for saw blade and router head feed rate, emergency-stop-switch, manual and toolkit.

Shipping Footprint: 7 (length) x 6 (width) x 7 (height)
Weight: 1500 lbs
All Information including Photos and Videos are supplied by a 3rd party Source.
Please confirm all data before committing to a purchase.
*Subject to credit approval. Additional programs available.
