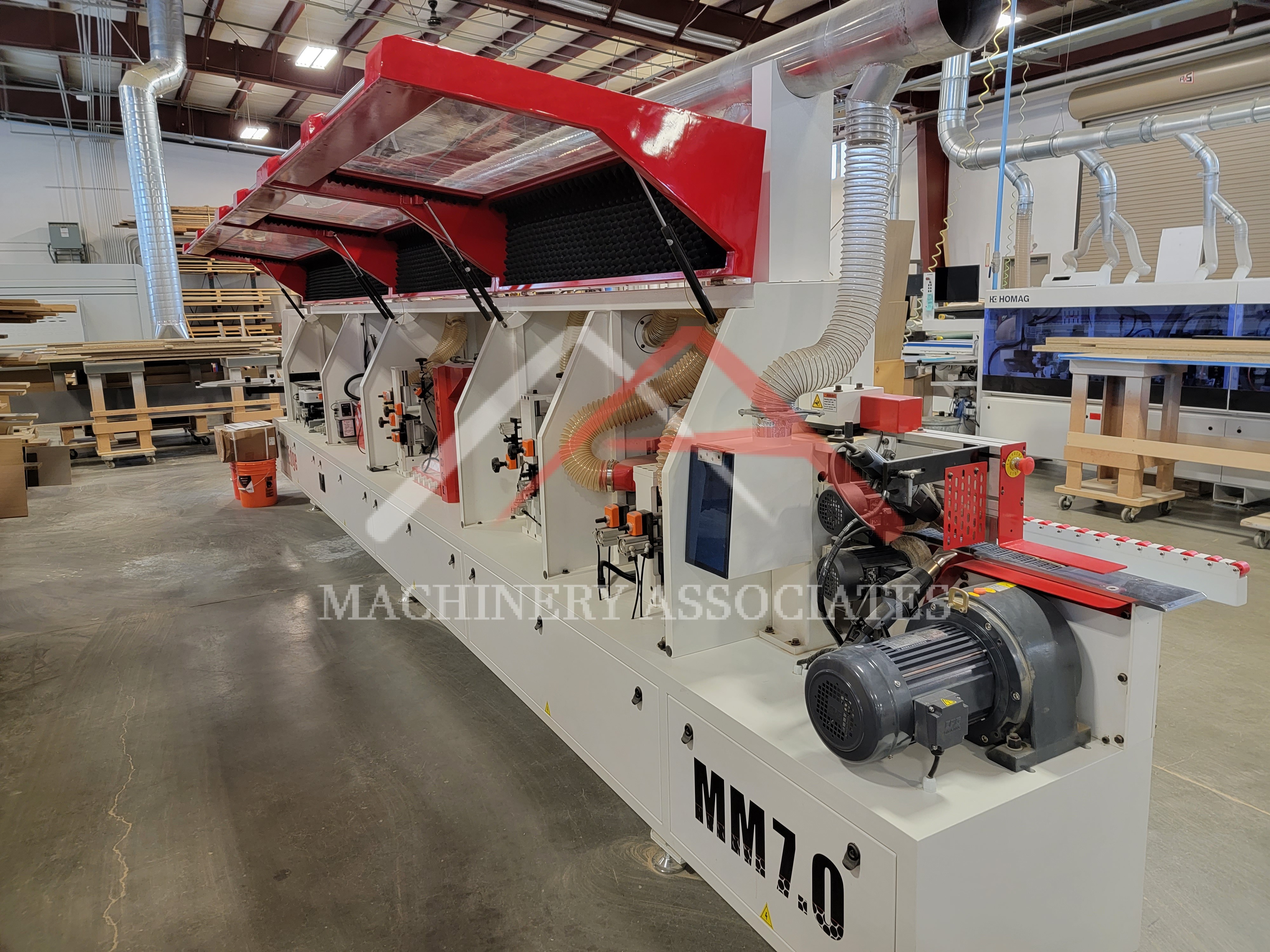

Vantedge MM7.0 Edgebander
2021 Edgebander with premill, corner rounding and grooving! Excellent condition!
|MA ID:||EBS - 13503|
Edgebanders -Single Sided
|Year of Manufacture:||2021|
|Electric:||230 Voltage 60 Cycle 3 Phase|
VantEdge MM7.0 Edgebander (2021) Lightly used
Max Panel Thickness 60 mm
Panel Thickness: 10mm to 60mm
Edge height: 65mm for coils
Feed Speeds: 8,15,20 meters per minute
Machine Specifications; (in order)
10" color touch screen PLC control
750mm coil support table
Pressure beam; automatic adjustment
Pre mill (2) 3HP industrial high frequency motors w/125mm diameter Leitz diamond cutter heads
Panel preheat (quartz heater)
Quick change glue system
Band application (with edge heat)
Pressure rollers (4) total pressurized rollers, (1) of which is powered
(2) Motor End Trim Station
(2) rough-cut top & bottom trimming station
(2) fine finish top & bottom trimming station
(2) motor corner rounding station
Top & bottom profile scraping unit
Top and bottom glue scraping unit
(2) 7.5 HP Grooving Motors
(2) Edge buffing
(2) Edge heaters (for smooth finish)
Comes with gluepot setup and cleaning pedestal.
|Shipping Footprint:||27 (length) x 5 (width) x 6 (height)|
Please confirm all data before committing to a purchase.
*Subject to credit approval. Additional programs available.
