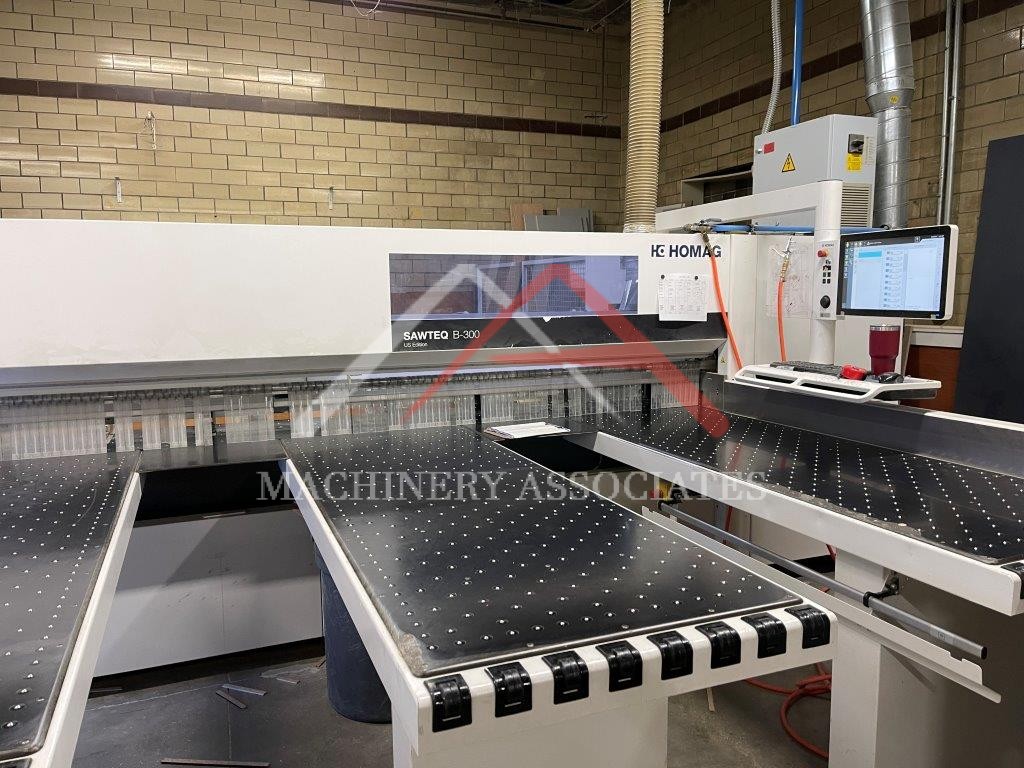

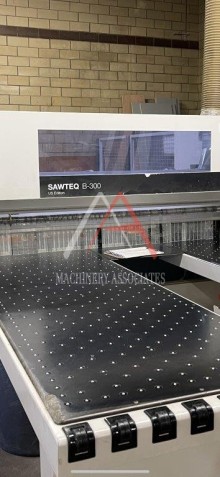

Homag Sawteq B-300 CNC Panel Saw

A late model, beautifully cared for CNC Panel Saw at a great price!

MA ID: PNC - 13445
Status: Archived
Price: Call For Price

Panel Saw - CNC

Manufacturer: Homag
Model: Sawteq B-300 38/32
Year of Manufacture: 2018
Condition: Very Good
Electric: 480 Voltage 60 Cycle 3 Phase
Homag Sawteq B-300 38/32 Front Load CNC Panel Saw


Rip cutting capacity; 149.6'' (3800 mm)

Pull back capacity; 126'' (3200 mm)

Main saw blade projection 3.74'' (95 mm)

28 HP (21 kW) Main saw blade

3 HP (2.2 kW) scoring blade;

Scoring saw adjustment via "CADmatic" control.

Saw Carriage Speed 0 - 492 FPM (0 - 150 MPM)

Pusher Fence:  (7) 2-finger gripper clamps which have 95mm max capacity

Rack & Pinion drive on both sides, forward speed up to 296 FPM (90 MPM),

Machine Control: HOMAG "powerTouch2" with "CADmatic 5.0" Operating System

(3) Front air flotation tables; 2,160 mm x 800 mm with air supplied by fan in the saw frame.

Weight: 10000 lbs
