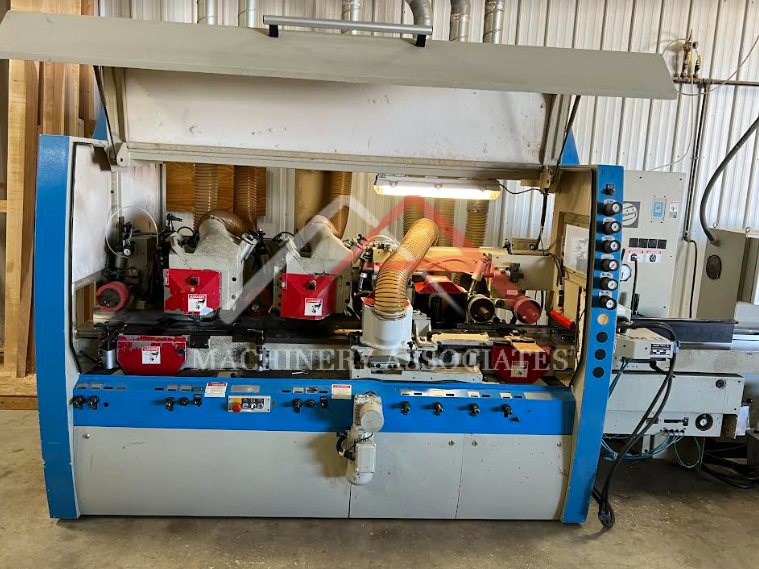

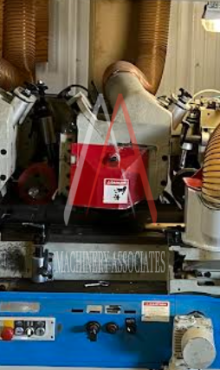

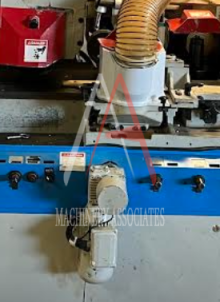

WEINIG UNIMAT 23 E/005 "SELECT" THROUGH FEED MOULDER

WEINIG UNIMAT 23 E/005 "SELECT" THROUGH FEED MOULDER. VERY GOOD CONDITION WELL MAINTAINED.

MA ID: MFT - 13376
Status: Sold
Price: Call For Price
Category:

Moulder - Feed Through

Manufacturer: Weinig
Model: U23E
Year of Manufacture: 2001
Condition: Very Good
Electric: 460 Voltage 60 Cycle 3 Phase
WELL MAINTAINED MACHINE- ATS, LARGE CUTTING CIRCLES AND EM 11 HOPPER FEEDER. INSTALLED IN 2003. ONE OWNER


Head configuration: B-R-L-T-T-B

Working cap: 10-1/4"” x 4-3/4”

Motors: Bottom -15 HP, Right/Left -15 HP, T-25HP, Top - 20 HP and Bottom - 20 HP

Spindles: Dia. 1 13/16" with variable speed spindles from 6,000-8,000 RPM’s spindles 2-6. Spindle 1 6,000 RPM.; mechanical digital readouts all spindles: Including chipbreakers and pressure elements. Chipbreakers and pressure elements are pneumatic. Large cutting circles 9-7/8". WEINIG ATS positioning of left and top spindles to radial dimension. Profile storage of 100 dimensions.

Feed: Variable speed from 20-118 FPM;  5.5 HP motor. Powered table rollers. Feed rollers telescopic opposite left spindle, between tops and at outfeed. Multi-height pressure unit after second top spindle with split pressure shoes.

Infeed/Tables: Infeed table 6'6"” with side pressure roller; Tables hardened; Weinig air-ride table system to reduce wider product drag. Including manual table lubrication pump.

Includes: Manuals, set up tools, central lubrication system and lighting inside the safety enclosure. Weinig EM-11 hopper feeder, hydraulic drive with lateral pressure feed roller (toothed). Works for for lengths 24" to 8'0". widths 1" to 10-1/4" and max. weight up to 150 lbs..

Note: One owner and well maintained machine!


Shipping Footprint: 16 (length) x 7 (width) x 7 (height)
Weight: 12000 lbs
All Information including Photos and Videos are supplied by a 3rd party Source.
Please confirm all data before committing to a purchase.
*Subject to credit approval. Additional programs available.
