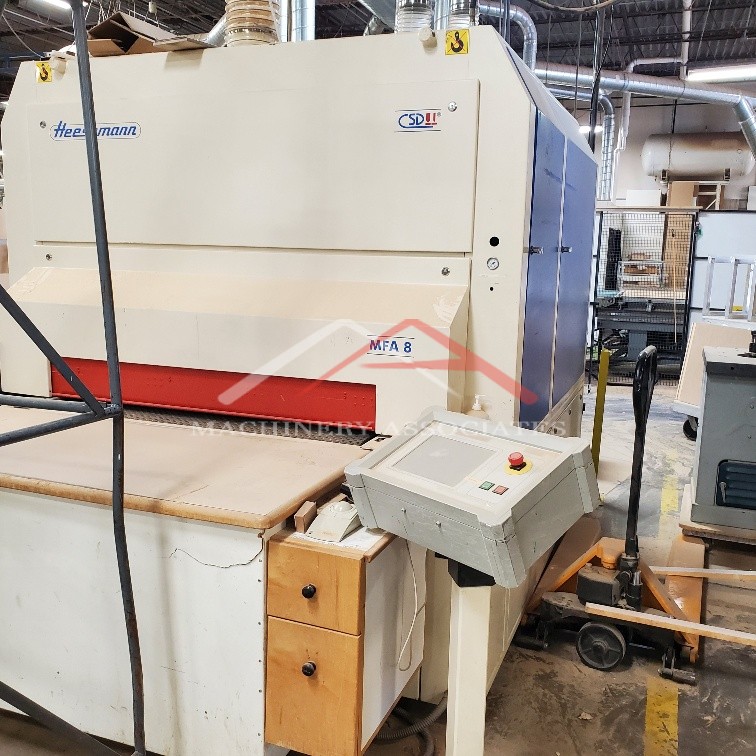

Heesemann MFA-8 Wide Belt Sander

Heesemann MFA-8 53 IN. 3-HEAD WIDE BELT SANDER

MA ID: SWM - 13210
Price: Call For Price
Category:

Wide belt and drum (Multi contact)

Manufacturer: Heesemann
Model: MFA-8
Condition: Very Good
Electric: 480 Voltage 60 Cycle 3 Phase
Heesemann Wide Belt Sander

Specifications:

53 IN. 3-HEAD WIDE BELT SANDER

53 in. capacity

1/8 min - 5-1/2 in max thickness capacity

1st Head: Cross Sanding Unit - CSD Segmented pad w/ chevron belt 2-speed motor (17/20 HP), Abrasive belt size - 6 x 189 in., Sanding belt Speed - 39/78 FPS, electronic braking

2nd Head: Wide Belt Sanding Unit- CSD Plus segmented pad w/ inverter controlled motor for sealer sanding, abrasive belt cleaning, 53 x 103 in. abrasive belt size, 22 HP motor, Sanding Belt Speed- 6.5 to 65 FPS

3rd Head: Panel Cleaning Brush with 150 mm diameter brush, 2 HP single speed motor on cleaning brush

TFT Touch Screen Control

5 HP feed motor inverter controlled for feed speeds from 16-82 FPM

12 HP vacuum blower for vacuum bed

34.65 in. constant pass-line

dust collection requirements: 5,388 CFM, Dust Outlets: (3) 180 mm and (2) 140 mm diameter outlets

Recommended Main Trunk Size: 16 in.

Electrical Requirements: 120 full load amps on 480 volt

Compressed Air: 40 CFM @ 90 PSI

Cleaned and checked


Shipping Footprint: 8 (length) x 15 (width) x 8 (height)
Weight: 13000 lbs
