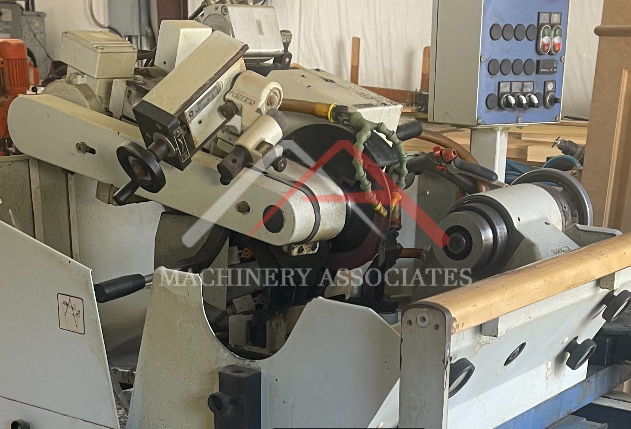

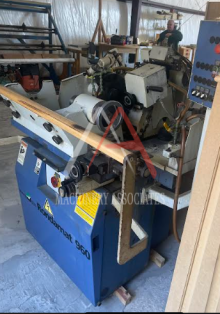

WEINIG RONDAMAT R960 POWERLOCK/CONVENTIONAL PROFILE GRINDER

WEINIG RONDAMAT R960 POWERLOCK/CONVENTIONAL PROFILE GRINDER IN GOOD CONDITION!

MA ID: GS - 13147
Price: $21,250.00
Category:

Grinding & Sharpening

Moulder - Feed Through

Manufacturer: Weinig
Model: R960
Year of Manufacture: 2006
Condition: Good
Electric: 230 Voltage 60 Cycle 3 Phase
GREAT OPTION FOR BOTH HSK AND CONVENTIONAL PROFILE TOOL GRINDING.



Standard Features:

Working cap. Length 9-3/8"; cutting circle 4" to 11-1/2"

Hydraulic grinding wheel clamping.

Grinding wheel speed 1,500-3,000 RPM's

Grinding spindle 1.5 HP

Cooling system with hoses 0.5 HP pump and 13 gal. tank

Grinding clearance angles: Radial at back 10-30°, Lateral in manual 0-20°: straight knife 60°.

Performance package: Motorized positioning of grinding wheel angles - Side clearance, motorized advance to the knife and pneumatic adjustment for back clearance angle. Machine light

HSK Package: Tool holder with manual clamping; pivoting right and left for head alignment: Radial table clamping: max. tool width of 9-1/2" (240mm) and max. tool dia. of 9-7/8" (250mm); HSK tool adaptor for conventional tool grinding.


Shipping Footprint: 5 (length) x 5 (width) x 5 (height)
Weight: 1800 lbs
All Information including Photos and Videos are supplied by a 3rd party Source.
Please confirm all data before committing to a purchase.
*Subject to credit approval. Additional programs available.
