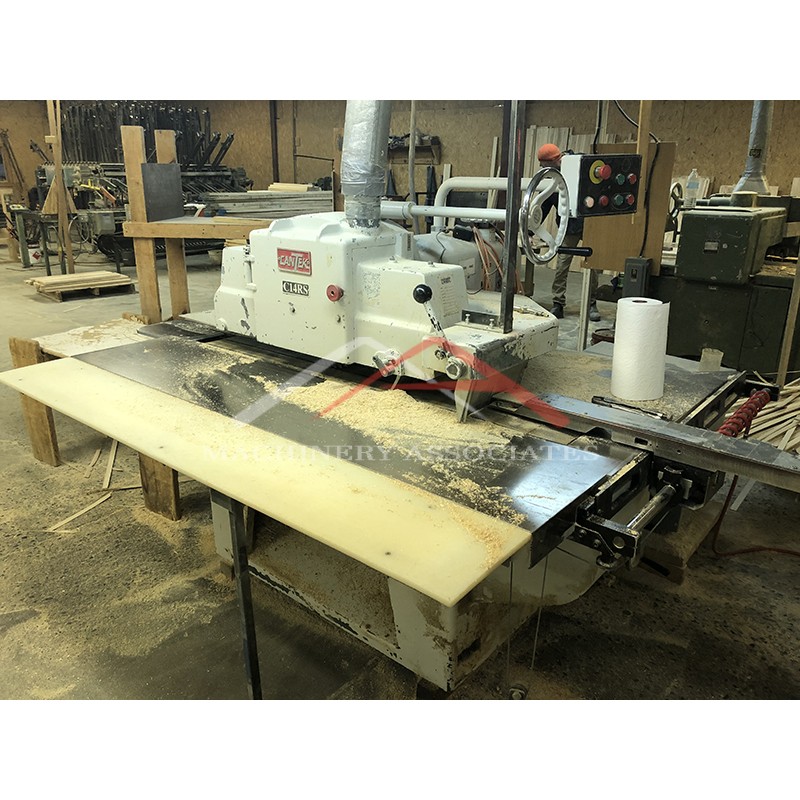

Cantek Model C14RS Straight Line Rip Saw

Cantek heavy duty model

MA ID: RSL - 13145
Price: $11,900.00
Category:

Rip Saw - Single (straightline)

Manufacturer: Cantek
Model: C14RS
Year of Manufacture: 2012
Condition: Very Good
Electric: 480 Voltage 60 Cycle 3 Phase
Cantek C14RS Straight Line Glue Joint Ripsaw



Saw blade diameter; 12″ - 15″ (300 ~ 380mm)
Saw arbor diameter;  1.5″
Saw arbor speed; 3500 RPM
Feed speeds variable;  33 - 98 FPM  (10 - 30 m/min)
Max. cutting thickness: Using 12″ blade 3.35″ (85mm)
Max. cutting thickness: Using 13″ blade   - 3.94″ (100mm)
Max. cutting thickness: Using 14″ blade - 4.33″ (110mm)
Max. cutting thickness:  Using 15″ blade - 4.92″ (125mm)
Minimum work piece length; 8″ (200mm)
Distance between saw and column; 24″ (609mm)
Arbor motor; 15 HP
Feed motor; 2 HP
Table size  50″ x 75″ (1270 x 1905mm)
Table height; 31.5″ (800mm)
Dust port size; 5″






Shipping Footprint: 7 (length) x 5.5 (width) x 5.5 (height)
Weight: 4000 lbs
All Information including Photos and Videos are supplied by a 3rd party Source.
Please confirm all data before committing to a purchase.
