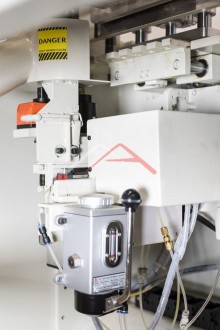

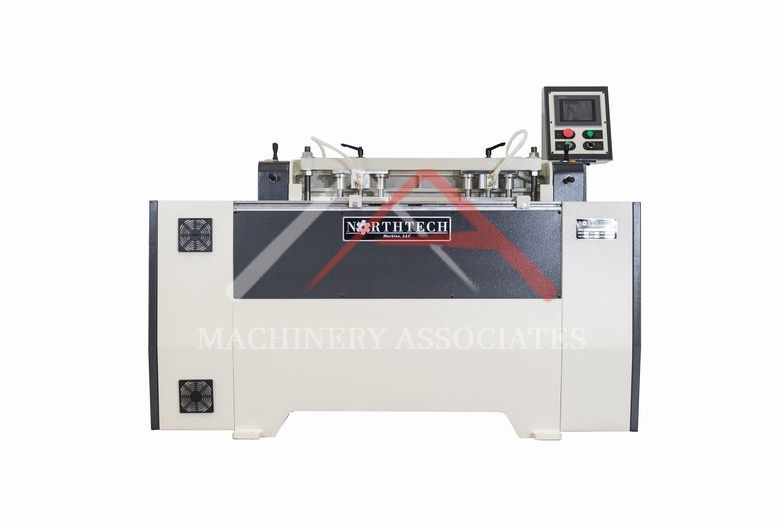

New Northtech NT DTM-600CNC Dovetailer

New Northtech NT DTM-600CNC Dovetailer

MA ID: DV - 13101
Price: Call For Price
Category:

Dovetail Machinery

Manufacturer: Northtech
Model: NT DTM-600CNC
Year of Manufacture: 2022
Condition: New
Electric: 230 Voltage 60 Cycle 3 Phase
Northtech Dovetailer

Specifications:

3HP 18,000 RPM spindle

Maximum processing width 600mm (23-1/2")

Tenon depth: Min. bit radius: Max. 10mm (.39") + bit radius

Tenon width: Min. bit Ø: Max. 50mm (2") + bit Ø

Tenon height: Min. 5/16": Max. = blade length up to 1"

Spindle vertical adjustment: 10mm (.375")

Horizontal & Vertical pneumatic clamping allows dual independent part release of available workstation

ER 25 dovetail bit

Required working air pressure: 90 PSI on a 1/4" air line

Dust port (1) 3" requiring 245 CFM @ each point of extraction

Mortise and tenon can be easily adjusted separately

95 FPM dovetail bit acceleration

Bit sharpening compensation adjustments via PLC control versus, continued manual tenon adjustments

Automatic error detection and display

Net weight: 1,430 lbs.

Machine dimensions: (L) 43" x (W) 67" x (H) 61"

(1) Tool box

Warranty is one year parts

All machines are tested stateside prior to shipment providing trouble free start up.

Voltage Change . . . $ 275


Shipping Footprint: 60 (length) x 79 (width) x 56 (height)
Weight: 1800 lbs
All Information including Photos and Videos are supplied by a 3rd party Source.
Please confirm all data before committing to a purchase.
*Subject to credit approval. Additional programs available.
