New Northtech Manual Dovetailer

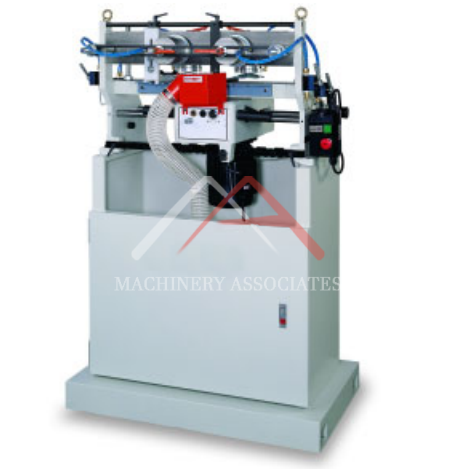

New Northtech NT-DTM16M Manual Dovetailer

MA ID: DV - 13100
Price: Call For Price
Category:

Dovetail Machinery

Manufacturer: Northtech
Model: NT-DTM16M
Year of Manufacture: 2022
Condition: New
Electric: 120 Voltage 60 Cycle 1 Phase
Northtech Dovetailer

Specifications:

Spindle motor: 1HP 1PH 120V/240V 60HZ

Min. workpiece size: 2.4" x 7.9"

Max. workpiece size: 16.5" x 59"

Min/Max dovetail height: 0.2" ~ 7.1"

Min/Max front thickness: 0.28" ~ 2.36"

Min/Max side thickness: 0.28" ~ 3.6"

Number of spindles: 1

Spindle speed: 18,500RPM

Dovetail spacing: 1", 1.5", 2", 2.5"

Table height from floor: 46.5"

Pneumatic clamps to securely hold workpiece, individually operated

Heavy steel base with cabinet door

Tenon and mortise adjustment depth based on material thickness

Comes with one four-sided template for different pitched dovetails (1", 1.5", 2", 2.5")

UL/CE certified electrical components

Air pressure required: 6 bar

Dust port (1) 4" requiring 436CFM @ point of extraction and
(1) 2-1/2" requiring 245CFM @ point of extraction

(1) Tool box

Warranty is one year parts

All machines are tested stateside prior to shipment providing trouble free start up.


Shipping Footprint: 43 (length) x 30 (width) x 66 (height)
Weight: 600 lbs
All Information including Photos and Videos are supplied by a 3rd party Source.
Please confirm all data before committing to a purchase.
*Subject to credit approval. Additional programs available.
