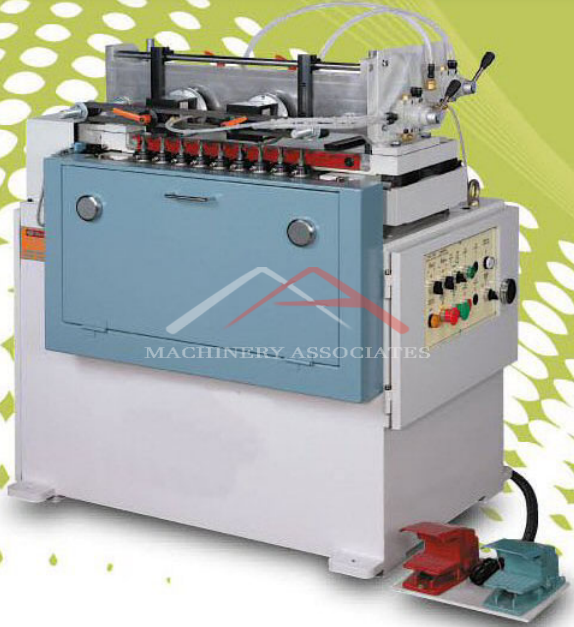

New Northtech Dovetailer

New Northtech NT-DTM9HSS Dovetailer, 21" Width, 3HP

MA ID: DV - 13098
Price: Call For Price
Category:

Dovetail Machinery

Manufacturer: Northtech
Model: NT-DTM9HSS
Year of Manufacture: 2022
Condition: New
Electric: 230 Voltage 60 Cycle 3 Phase
Northtech Dovetailer

Specifications:

9 spindles for 18 dovetails, 5L/4R

21” working width

Automatic cycle with manual override

Each 10,000 RPM precision balanced spindle is mounted inside
(2) high speed precision bearings

Convenient foot pedal control for cycle start/stop

Carriage traverses along cross directional lineal guide rails for incredibly smooth cycles

The 9 individual spindles use powered by a 3HP motor and driven by seamless serpentine flat belt
reduces vibration, heat, and ensures true power transfer for each spindle.

Integrated detail air nozzle

Air over hydraulic drive system for total control of cycle while cutting

Net / Gross Weight: 1,323 lbs. / 1,544 lbs.

Machine dimensions: (L) 48" x (W) 42" x (H) 56"

Warranty is one year parts

All machines are tested stateside prior to shipment providing trouble free start up.


Shipping Footprint: 49 (length) x 43 (width) x 57 (height)
Weight: 1600 lbs
All Information including Photos and Videos are supplied by a 3rd party Source.
Please confirm all data before committing to a purchase.
*Subject to credit approval. Additional programs available.
