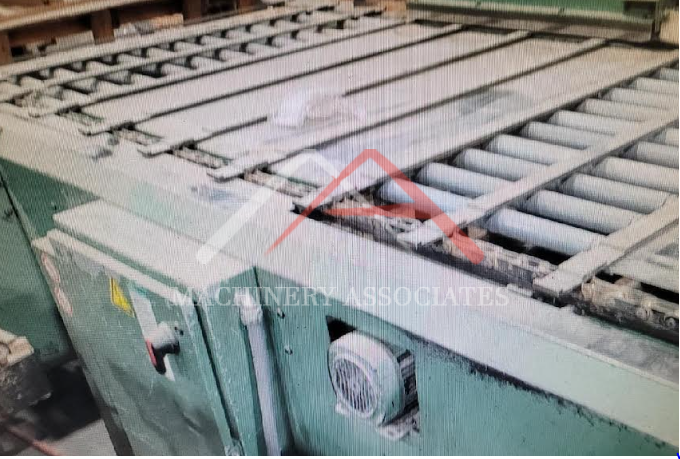

DOUCET EM2 THROUGH FEED END MATCHER
DOUCET EM2 THROUGH FEED END MATCHER PRICED TO SELL
|MA ID:||FJ M - 13087|
Finger Jointers and End Matchers
|Year of Manufacture:||2001|
|Electric:||460 Voltage 60 Cycle 3 Phase|
Seller indicates machine in good running condition presently in storage. Tim and end match at each station for material up to 96".
Working dimensions: Length 12" to 96"; width 1-1/4" to 5" with 1" max thickness.
Chain deck: Feed speed with 3 HP motor at 28 lugs per minute. Deck dimensions 21' x 5' with singulating bars spacced 12" or 8" oc. Approximately up to 10,000 BDF per shift depending on average length of workpiece.
Cutting/grooving: (2) 12" dia. trim saw for squaring and (2) profiling heads each with 3HP.
Material flow: The workpiece proceeds into the first machining center and is aligned. First cut is trim/square and second cut of tongue or groove. A cross transfer switches the work piece to the opposite side of the machine and again the process is completed.
