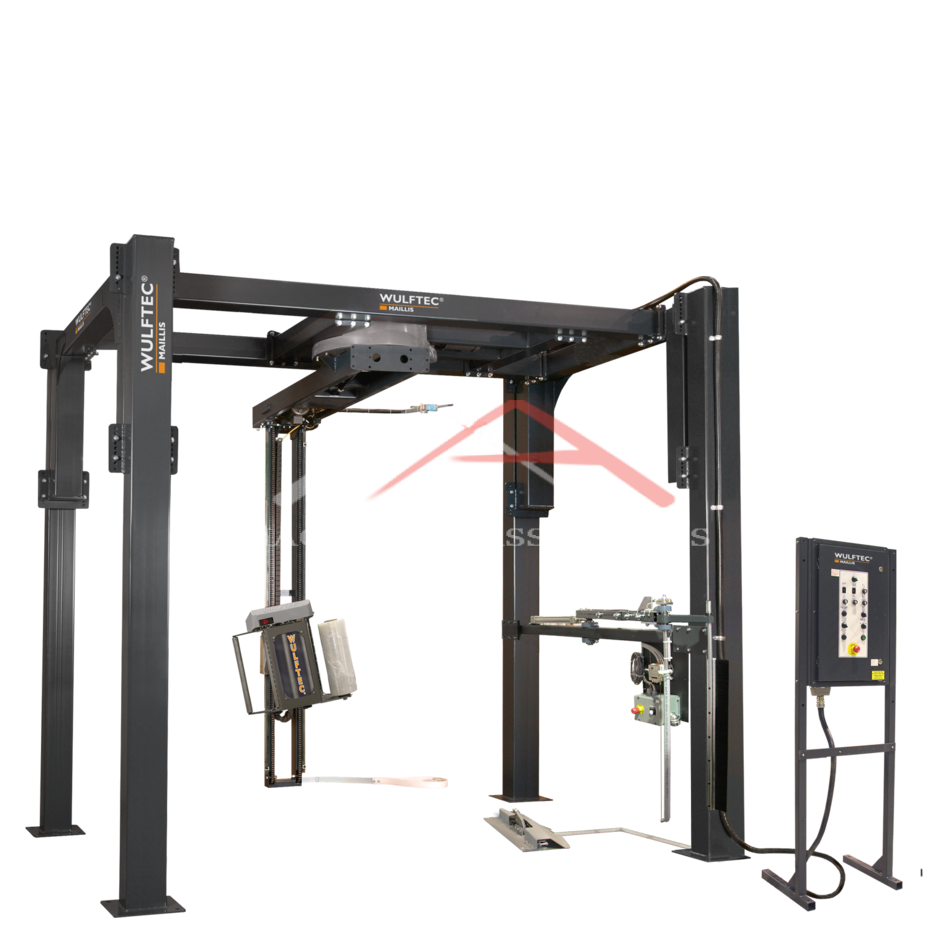

Wulftec WRTA-200 Automated pallet stretch wrapper

These are believed to be 2017 units There are 2 and one is new/ never assembled

MA ID: MHP - 13083
Price: $12,900.00
Category:

Packaging

Manufacturer: Technicut
Model: WRTA-200
Year of Manufacture: 2017
Condition: Very Good
Wulftec WRTA-200 Production stretch wrapper



We have 2 of these.

One is used and one has never been assembled Both are in shipping condition and complete. Available immediately

Used unit is slightly used. It's priced at $12500.

New unit is priced at $16,500

Factory spec for  these units, below.

Description

Key Specs:

Production Rate
  • 50 loads per hour
Machine Dimensions
  • 141.5 ” L x
  • 130 ” W x
  • 117.5 ” H
Maximum Load Size
  • 56 ” L x
  • 56 ” W x
  • 80 ” H
Maximum Load Weight
  • Unlimited
Approximate Shipping Weight
  • 2800 lbs
Electrical Requirements
  • 120 V /
  • 1 ph /
  • 60 Hz
  • 15 A
Air Requirements
  • 3 cfm @
  • 80 psi
Controls
  • Allen Bradley MicroLogix 1200 PLC
  • 24V control system
  • Current overload protection
  • NEMA 4/12 control cabinet (can be located up to 10′ from machine frame)
  • Autoheight sensing photoeye
  • Power on/off switch and status light
  • Start/stop push button
  • Large emergency stop (push / pull type)
  • Manual carriage up/down function
  • Variable rotary arm speed (12RPM)
  • Separate up and down carriage speeds
  • Separate top and bottom wrap selectors
  • Reinforced wrap/manual rotation control
  • Positive arm alignment controlled by proximity sensor
  • Top cover pause switch (Splash proof program)
  • Spiral up or spiral up/down switch
  • Film force to load control
  • Emergency stop sensor for arm path obstruction
  • Mode switch (Manual or Automatic)
  • Pull cord with 40′ of cable (to be installed by customer)
  • Separate station on front of tower with clamp jog and an additional e-stop
  • Lack of film alarm
Structure
  • Heavy duty structural steel construction
  • Free standing integrated leg design
  • Four (4) 6″ x 6″ floor mounting legs
  • Easy access to all components
Anchoring Requirements
  • Wulftec recommends using heavy-duty expansion shields of 3/4″ diameter thread size with a minimum anchor depth of 4″ in concrete
Film Delivery System
  • 20″ NO-THREAD® Powered Pre-Stretch Carriage
  • 1 HP AC motor with Allen Bradley variable frequency drive
  • Lifetime warranty on pre-stretch rollers blue compound
  • Film force release for easy pull at start and end of cycle
  • 50-400% pre-stretch ratio (preset to customer spec, Std 200%)
  • Electronic film tension control with analog sensor
  • Lexan roller cover for operator safety
  • Angled carriage to wrap approximately 2″ from floor level
  • Proximity sensor on carriage gate to ensure gate is properly closed
Film Carriage Drive
  • 1 HP AC motor with Allen Bradley variable frequency drive
  • Two #50 carriage lifting chains
  • Dual 1/2″ CRS ways with UHMW-PE carriage glides
  • Dual structural steel supporting boom
  • Power track for efficient guiding of wires
Film Tail Treatment
  • Automated Cut/Clamp & Wipe system
  • Pulse controlled cutter
  • Film alignment arm & Brush on film tail treatment
Rotary Arm Drive
  • Heavy duty 25″ ring gear with pinion gear drive
  • 1 HP AC motor with Allen Bradley variable frequency drive
  • 0-12 RPM variable speed
  • Electronic soft start/stop
  • Positive arm alignment controlled by proximity sensor
  • Protection guard over the ring gear
Technical Information
  • The machine is provided with a manual including electro/mechanical schematics and drawings, troubleshooting guide & Installation instructions

Shipping Footprint: 15 (length) x 6 (width) x 7 (height)
Weight: 2500 lbs
All Information including Photos and Videos are supplied by a 3rd party Source.
Please confirm all data before committing to a purchase.
*Subject to credit approval. Additional programs available.
Click Herefor More Info or call Product Manager Gary Carney 877-622-4657 x101
