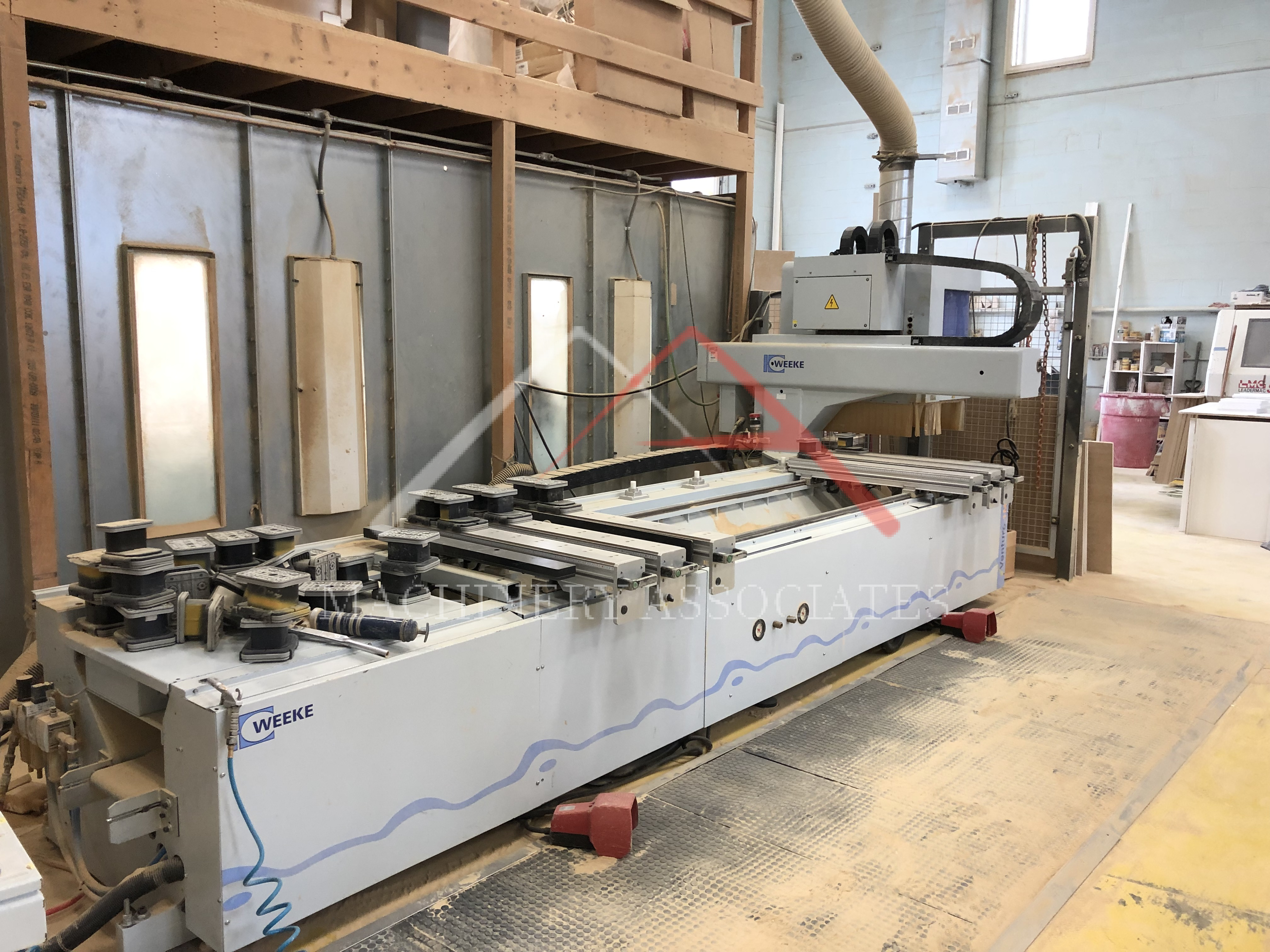

Weeke Optimat BHC Venture 1 CNC Pod-Rail Machining Center

2008 Weeke Venture 1 Point to Point

MA ID: PTP - 12977
Price: Call For Price

Point to Point

CNC Router (3-axis)

Manufacturer: Weeke
Model: Optimat Venture 1
Year of Manufacture: 2008
Condition: Good
Electric: multi Voltage
2008 Weeke Optimat Venture 1

Router spindle power 7.5 kW/10 HP (HSK)

Router speed 1250-18,000 RPM

Tool magazine capacity 4 tools


Number of vertical drilling spindles 9

Vertical drilling spindle power 1.5 kW/2.3 HP

Number of horizontal drilling spindles 10

Horizontal drilling spindle power 1.5 kW/2.3 HP

Drilling speed (frequency controlled) 1500-7500 RPM

Max. drilling depth for through holes 38 mm (1.49″)


X-axis grooving saw power 1.5 kW/2.3 HP

Saw blade diameter recommended 125 mm


Vacuum pump capacity 100 M3/hr


Axis stroke; Positioning speed for X-axis 3860 mm; 60M/min

Axis stroke; Positioning speed for Y-axis 1542 mm; 50M/min

Axis stroke; Positioning speed for Z1-axis (Router) 250 mm; 15M/min

Axis stroke; Positioning speed for Z2-axis (Boring) 185mm; 15M/min

Max. router position; X-axis 3250 mm; (128”)

Max. router position; Y-Axis 1120-1250 mm; (44.09”-49.09)

Max. router position; z-Axis 100 mm; (3.9”)


Machine power cabinet may be located on either side of the work space.


Dust extraction: 200 mm diameter connection, 2000 CFM.
Compressed air: connection 1/2″, pressure required 7 bar,
consumption 10-15 CFM.

Shipping Footprint: 16 (length) x 8 (width) x 8 (height)
Weight: 8000 lbs
All Information including Photos and Videos are supplied by a 3rd party Source.
Please confirm all data before committing to a purchase.
*Subject to credit approval. Additional programs available.
