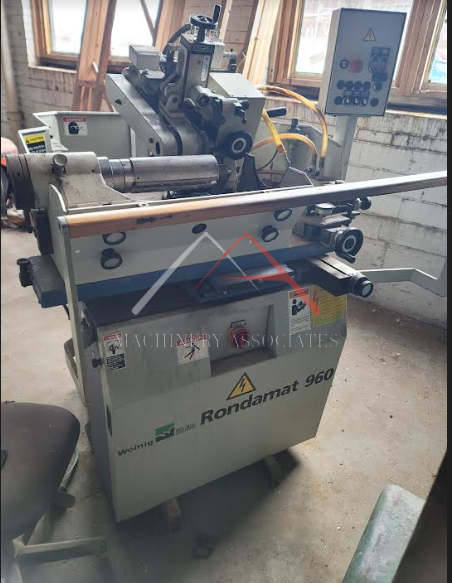

WEINIG RONDAMAT R960 POWERLOCK PROFILE KNIFE GRINDER

WEINIG RONDAMAT R960 POWERLOCK PROFILE KNIFE GRINDER

MA ID: GS - 12946
Price: $22,900.00
Category:

Grinding & Sharpening

Manufacturer: Weinig
Model: R960 PL
Year of Manufacture: 2008
Condition: Good
Electric: 460 Voltage 60 Cycle 3 Phase
IDEAL PRODUCTION GRINDER FOR HSK TOOLING. CLEANED AND CHECKED WITH CAPACITY OF BOTH HSK AND CONVENTIONAL TOOLING.

IDEAL PRODUCTION GRINDER FOR HSK TOOLING. CLEANED AND CHECKED WITH CAPACITY OF BOTH HSK AND CONVENTIONAL TOOLING.

Standard Features:

Working cap. Length 9-3/8"; cutting circle 4" to 11-1/2"

Hydraulic grinding wheel clamping.

Grinding wheel speed 1,500-3,000 RPM's

Grinding spindle 1.5 HP

Cooling system with hoses 0.5 HP pump and 13 gal. tank

Grinding clearance angles: Radial at back 10-30°, Lateral in manual 0-20°: straight knife 60°.

Performance package: Motorized positioning of grinding wheel angles - Side clearance, motorized advance to the knife and pneumatic adjustment for back clearance angle. Machine light

HSK Package: Tool holder with manual clamping; pivoting right and left for head alignment: Radial table clamping: max. tool width of 9-1/2" (240mm) and max. tool dia. of 9-7/8" (250mm); HSK tool adaptor for conventional tool grinding.

Note: Machine cleaned and checked prior to delivery.


Shipping Footprint: 5 (length) x 5 (width) x 5 (height)
Weight: 1500 lbs
