2016 Biesse Stream A 6.0 Edgebander

Nothing left out! This bander has it all from Premill to Corner Rounding. Top Fed EVA Glue Pot makes cleanup easy. Ready May 2022.

MA ID: EBS - 12921
Price: $62,500.00

Edgebanders -Single Sided

Manufacturer: Biesse
Model: Stream A 6.0
Year of Manufacture: 2016
Condition: Excellent
Electric: multi Voltage
Biesse Stream A 6.0 Edgebander

Machine Description:

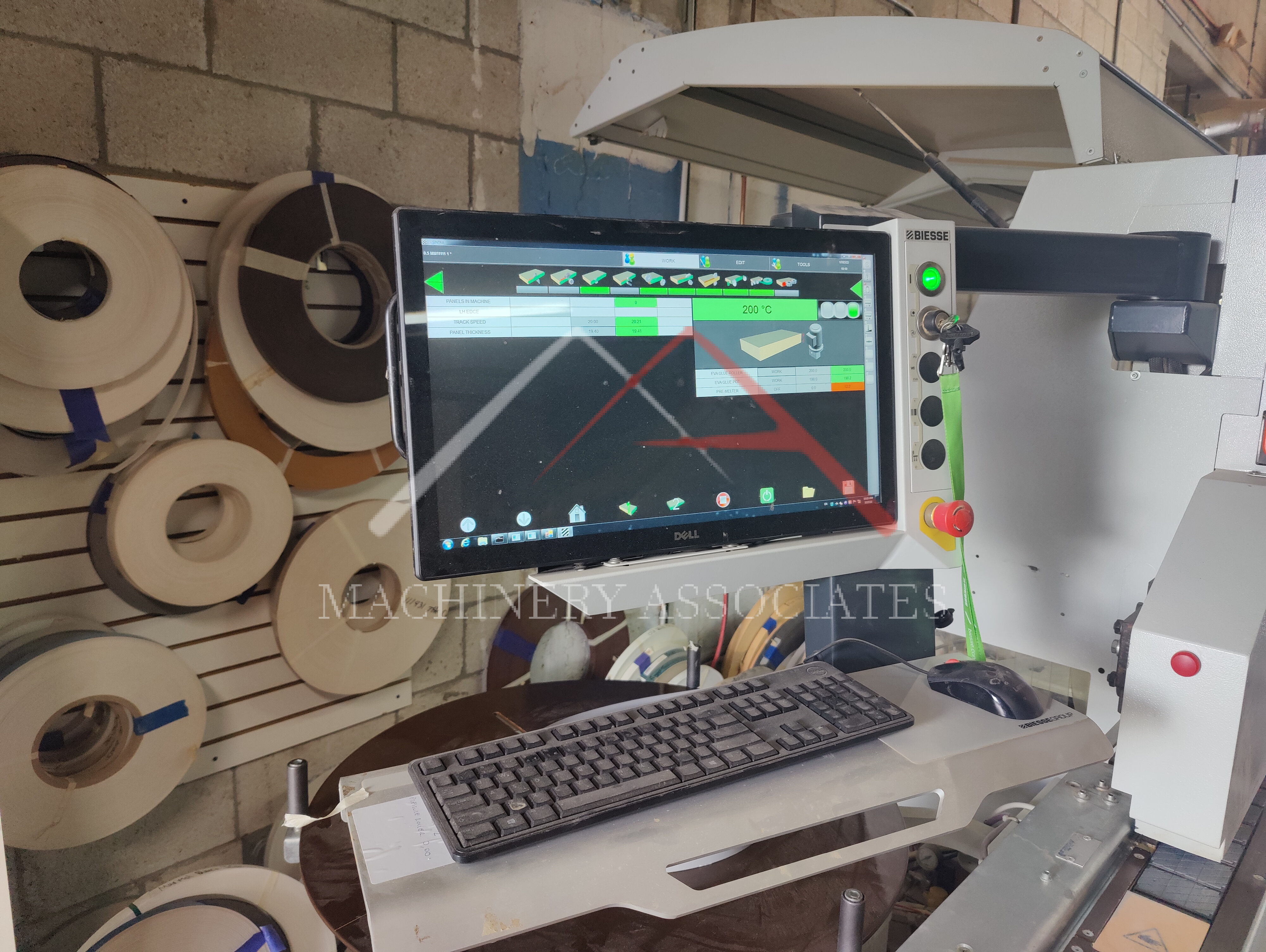

21.5" Multi-touch  Full HD Display with Windows Operating System

NC Axis Package for Automatic Set-up

Belt Driven Top Pressure Beam

Automatic Strip Feed Magazine

2 Motor Pre-Milling Unit with Servo Control

Infrared Heating Lamp

Glue System w/ Pre-Melt Unit

Anti-Adhesive Spray Unit

Automatic Infeed Pressure System with Servo

Front & Rear End Trimming Units w/Tilt

Top & Bottom Rough Trimming Units

Top & Bottom Fine Trimming Units w/Servo Motors

Pro-Nest Feature on Fine Trim & Profile Scraper Unit

2 Motor Corner Rounding Trimming Units with NC Control

Top & Bottom Profile Scraping Units + Pneumatic Exclusion (jump station)

Top & Bottom Glue Scraping Units

Top & Bottom Buffing Units

Panel Cleaning Liquid Application Unit

Top & Bottom Edge Hot Air Blowers

Material Specifications:

Min. Panel Thickness;   10mm
Max. Panel Thickness:  60mm
Height of Edge-Band Material:  14-64mm
Min. Banding Thickness - Rolls;   0.4mm

Max. Banding Thickness - Rolls;  3mm
Max. Banding Thickness;  22mm
Min. Panel Length;   140mm
Min. Panel Width;  85mm (panel length of 140mm)                                             50mm (panel length of 250mm )
Feed Speeds;  12, 18, 20, 25 m/m
Electrics:  Multi-Tap Transformer

Available in May 2022

Shipping Footprint: 23 (length) x 4 (width) x 7 (height)
Weight: 9000 lbs
