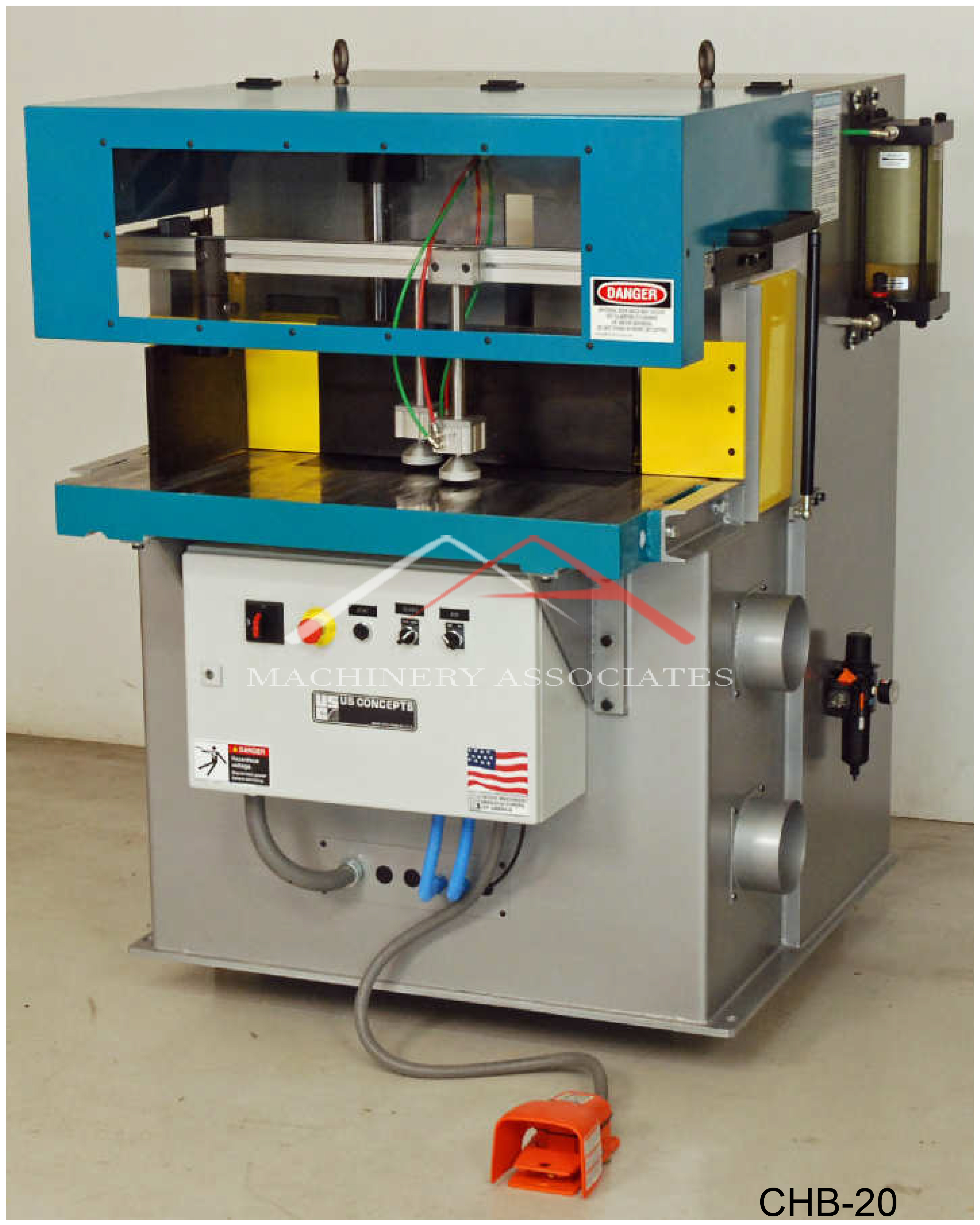

CHB 20 HAUNCHER-NOTCHER

MA ID:	MM - 11961
Status:	Sold
Price:	$46,900.00
Category:	Miscellaneous Machinery Pallet Equipment
Manufacturer:	US Concepts
Model:	CHB-20
Condition:	Excellent
Electric:	208/230/460 Voltage 3 Phase

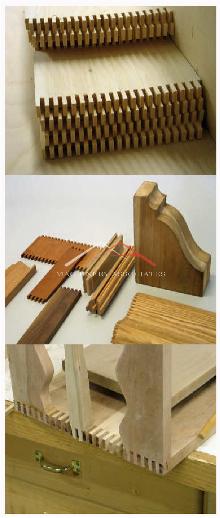

SPECIFICATIONS: · Motor: 15HP · Cutter Speed: 4300 or 6200 rpm · Cutting width: 20" · Spindle Diameter: 40 mm · Max. cutter diameter: 10" · Net weight: 1540 lbs · Max. material height: 5" · Max. cutting depth: 2 1/2" · Dust outlet dia.: 6" · Table size: 36" x 16" · No. of Clamps: 2 · Spindle feed speed Air/Oil: 0 - 25 FPM STANDARD EQUIPMENT: - Automatic starter and motor overload protection - Air over oil spindle feed system - Adjustable speed control for feed - Cutting depth adjustment - Heavy duty frame - Cutter guard - Guarded Foot Switch for cycle activation - 208-230/460V, 3 phase electric - Electrical equipment according to UL/CSA OPTIONS: 25 HP motor $1,300.00 20 HP motor $950.00 1-1/2" spindle $500.00 1-13/16" spindle $900.00 Additional clamp $295.00 Index Side Stop $275.00 Angular Side Stop $425.00 Safety dual palm circuit with stroke limit (instead of foot switch) $990.00 Center Fence mounted to the Table $250.00 575V or 380V electric $460.00 Crating $420.00 Export crating as per ISPM-15 $990.00 Deep Notch version to work with 16" dia cutter $3,460.00 The heavy duty Hauncher is used to make cuts (notches) along the edge of the board. The horizontal spindle moves hydraulically past the table with the board clamped. A back up board in the table and a climb cut assure the clean cut, even on cross grain. Material air clamps and spindles motion are actuated by a foot switch. An adjustable back fence sets the depth of cut.

All Information including Photos and Videos are supplied by a 3rd party Source.
Please confirm all data before committing to a purchase.
*Subject to credit approval. Additional programs available.
