MA ID: PAL - 11964
Price: $65,000.00

Pallet Equipment

Manual Single/double Shapers

Manufacturer: US Concepts
Model: CHB-12
Condition: New
Electric: 208/230/460 Voltage 60 Cycle 3 Phase

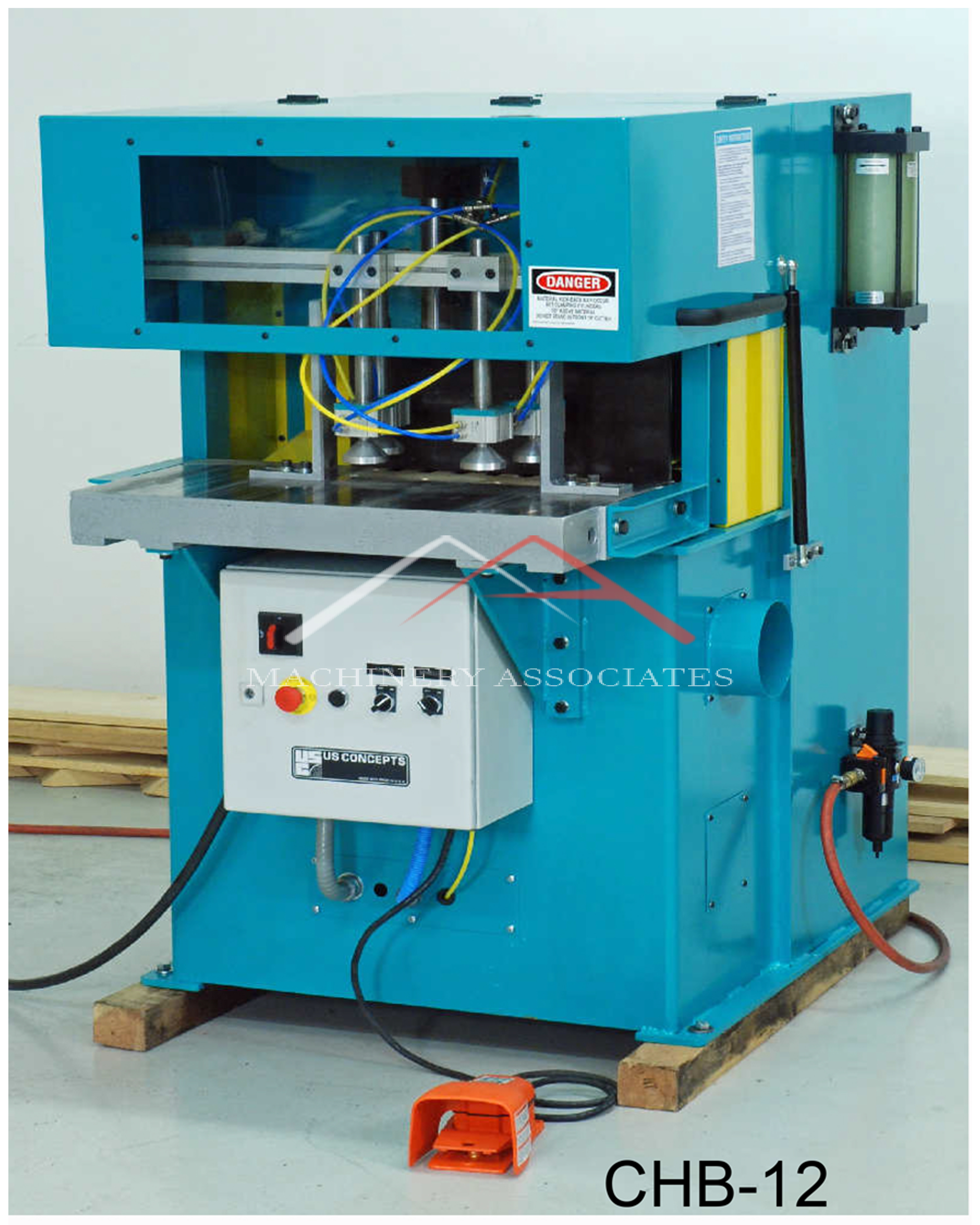

US Concepts Hauncher Notcher


  • Motor:                         15HP
  • Cutter Speed:              4300 or 6200 rpm
  • Cutting width:              12"
  • Spindle Diameter:         40 mm
  • Max. cutter diameter:    10"
  • Max. material height:    5"
  • Max. cutting depth:       2 1/2"
  • Dust outlet dia.:            6"
  • Table size:                    36" x 16"
  • No. of Clamps:              2
  • Spindle feed speed Air/Oil: 0 - 25 FPM


   -Air over oil spindle feed system
   - Adjustable feed speed control
   - Cutting depth adjustment
   - Heavy duty frame
   - Cutter guard
   - Automatic starter and motor overload protection
   - Foot Switch activation
   - Electrical equipment according to UL/CSA

   -25 HP motor $1,300.00
   -20 HP motor $950.00
  -1-1/2" spindle $500.00
   -1-13/16" spindle $900.00
   -Additional clamp $295.00
   -Index Side Stop $275.00
   -Angular Side Stop $425.00
   -Safety dual palm (instead of foot switch) $990.00
   -Center Fence mounted to the Table $250.00
   -575V or 380V electric $460.00
   -Crating $420.00
   -Export crating as per ISPM-15 $990.00
   -Deep Notch version to work with 16" cutter $3,460.00

*Tooling & spacers are not included.

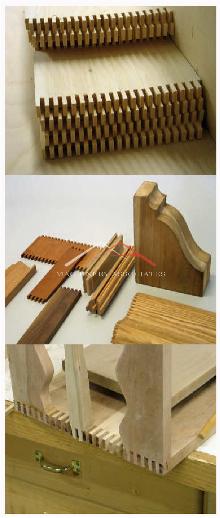

The heavy duty Hauncher is used to make cuts (notches) along the edge of the board. The horizontal spindle moves hydraulically past the table with the board clamped. A back up board in the table and a climb cut assure the clean cut, even on cross grain. Material air clamps and spindles motion are actuated by a foot switch. An adjustable back fence sets the depth of cut.

Weight: 1540 lbs
