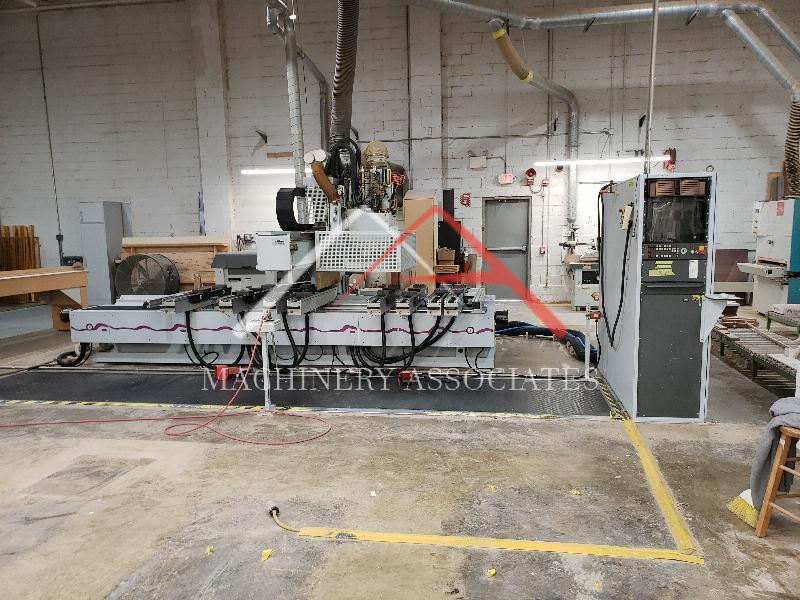

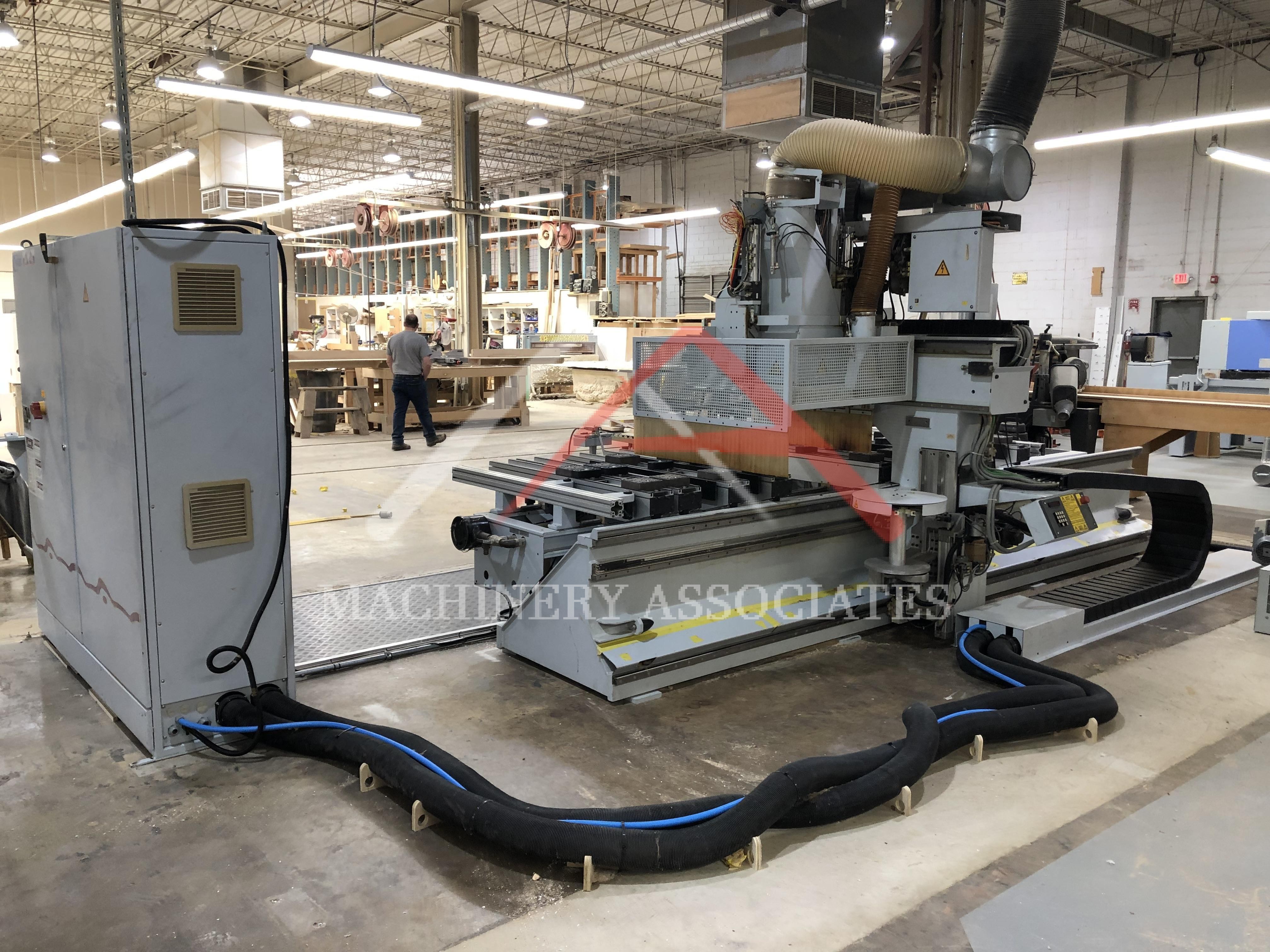

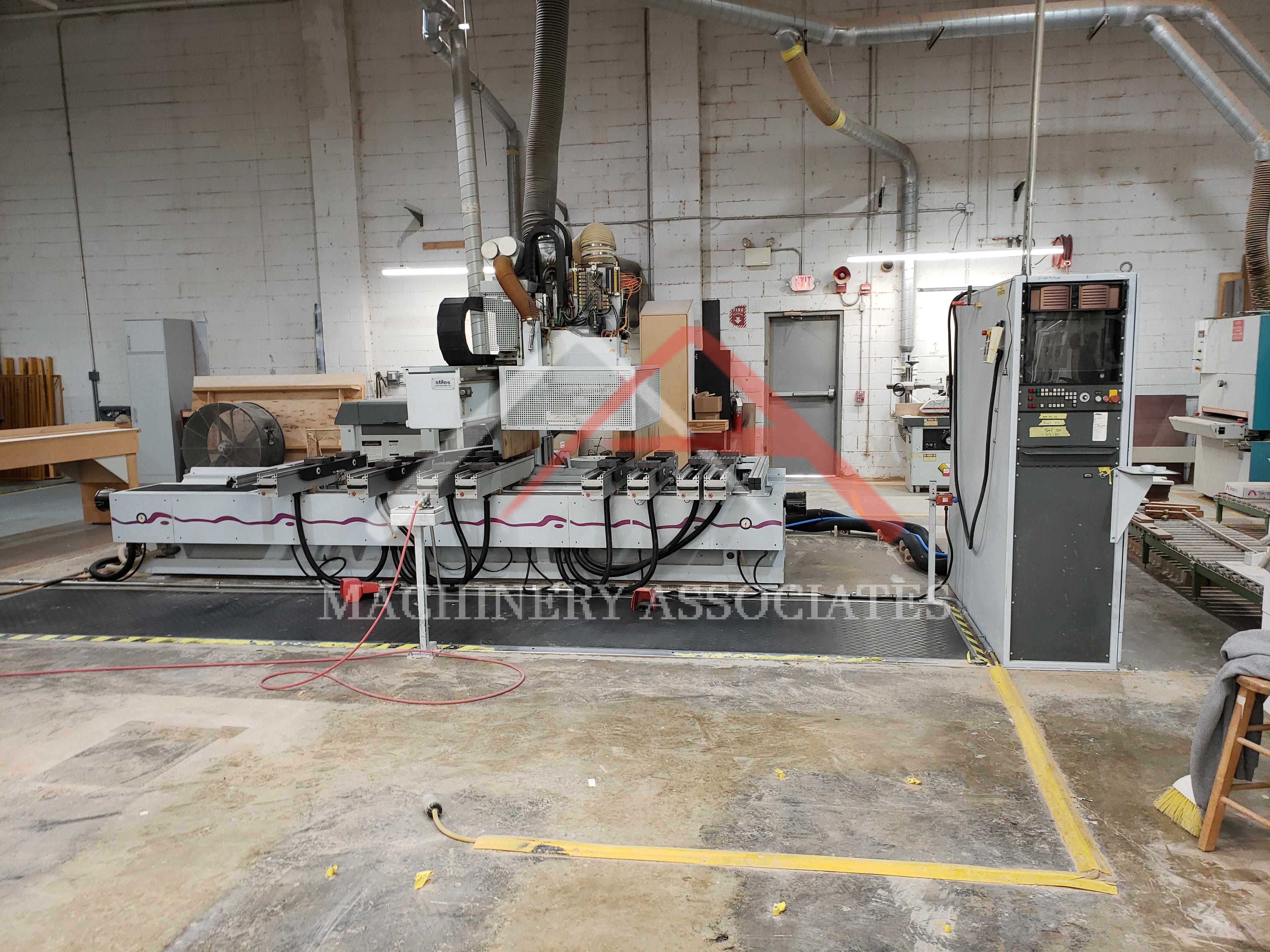

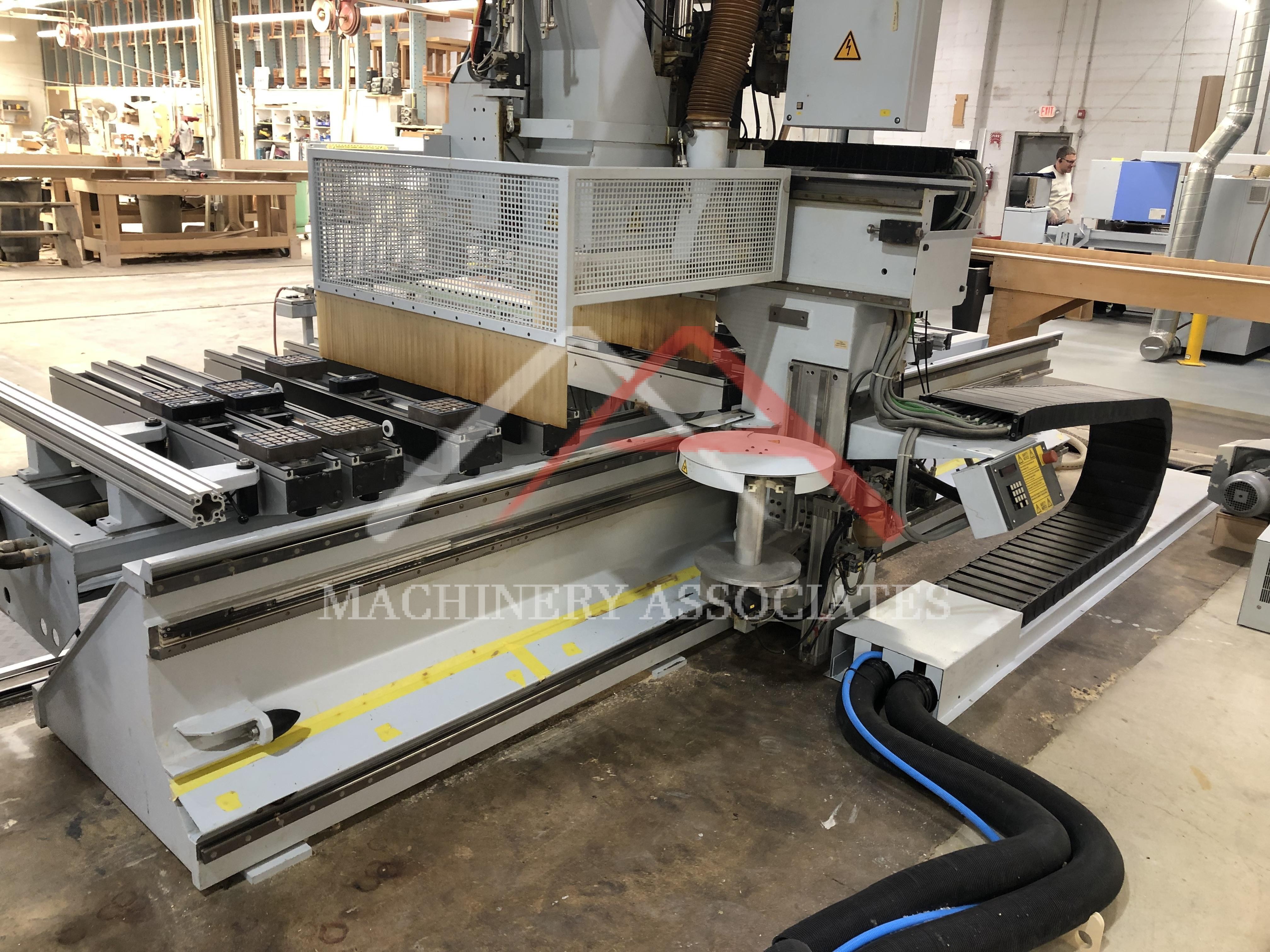

Weeke BP150 CNC Point to Point wCaxis
Weeke BP 150, C-Axis Spindle, Big drill block, Second spindle.
| MA ID: | PTP - 11460 |
| Status: | Sold |
| Price: | $8,500.00 |
| Category: |
Point to Point |
| Manufacturer: | Weeke |
| Model: | Optimat BP150 |
| Year of Manufacture: | 1999 |
| Condition: | Good |
|

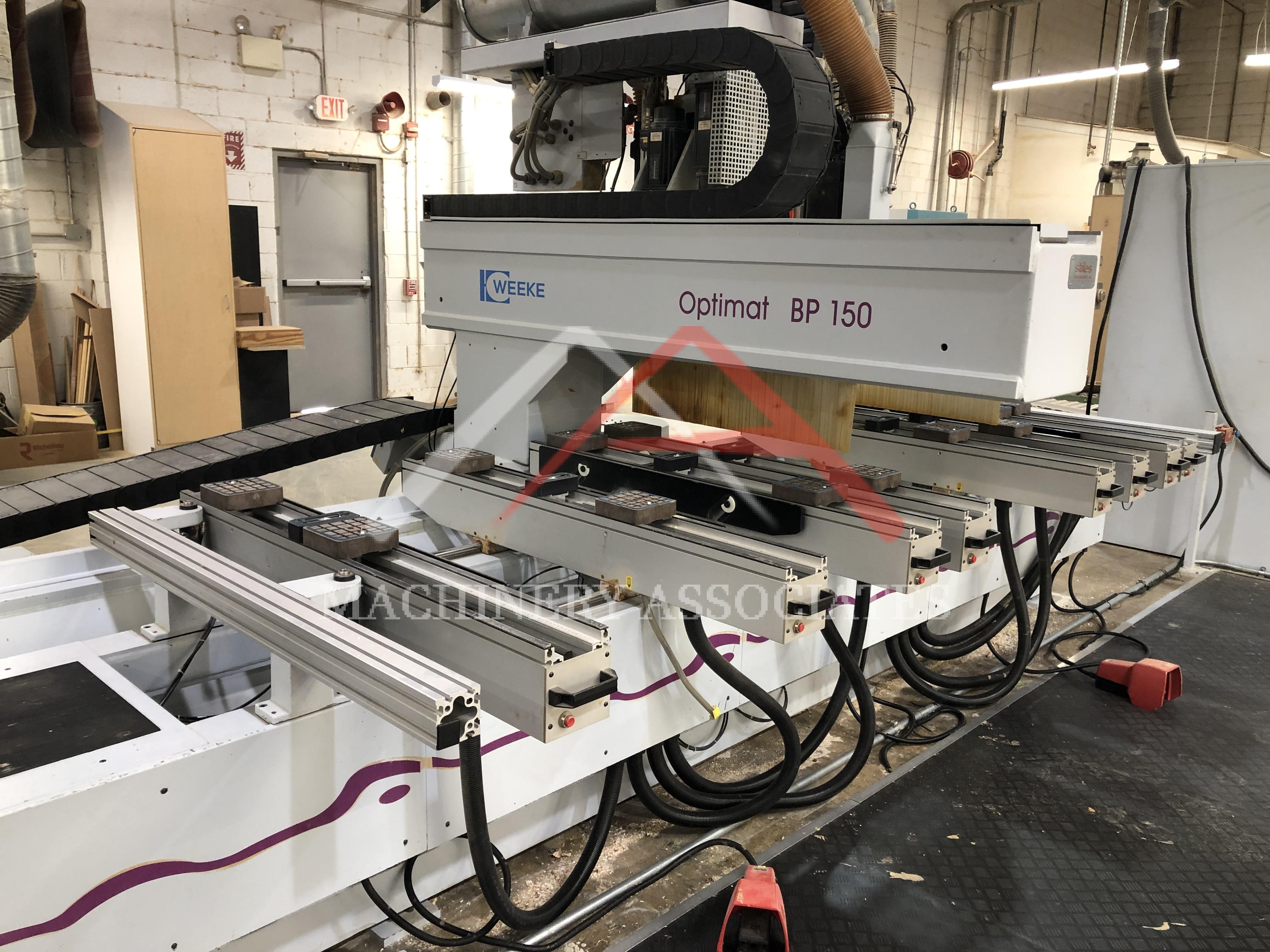

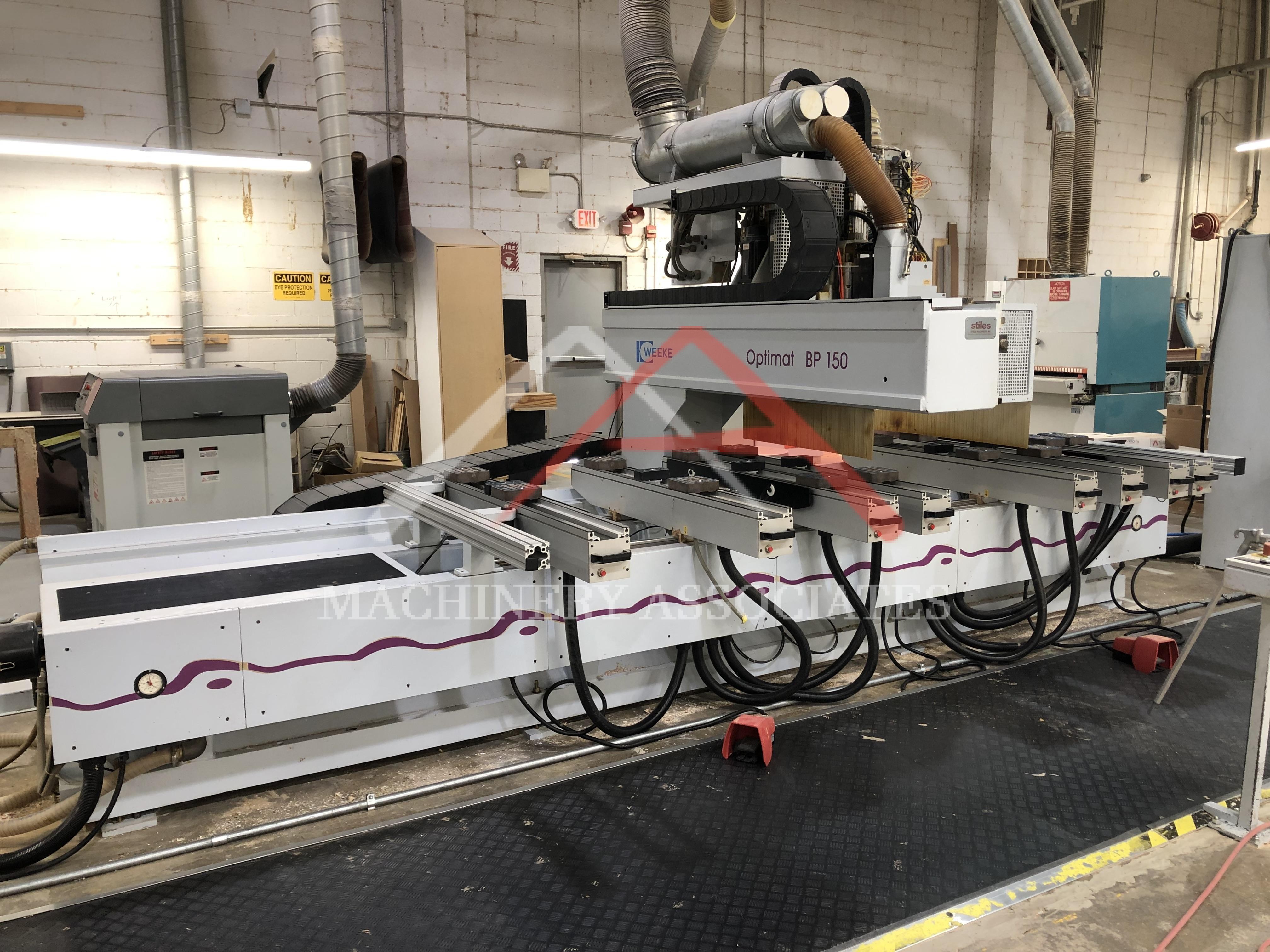

Weeke Optimat BP 150
Nice Point to Point CNC Router. This machine has the big drill block, a C-axis Spindle and an Aux. Spindle. Very convenient layout and well taken care of machine!
IN HOLD FOR PAYMENT

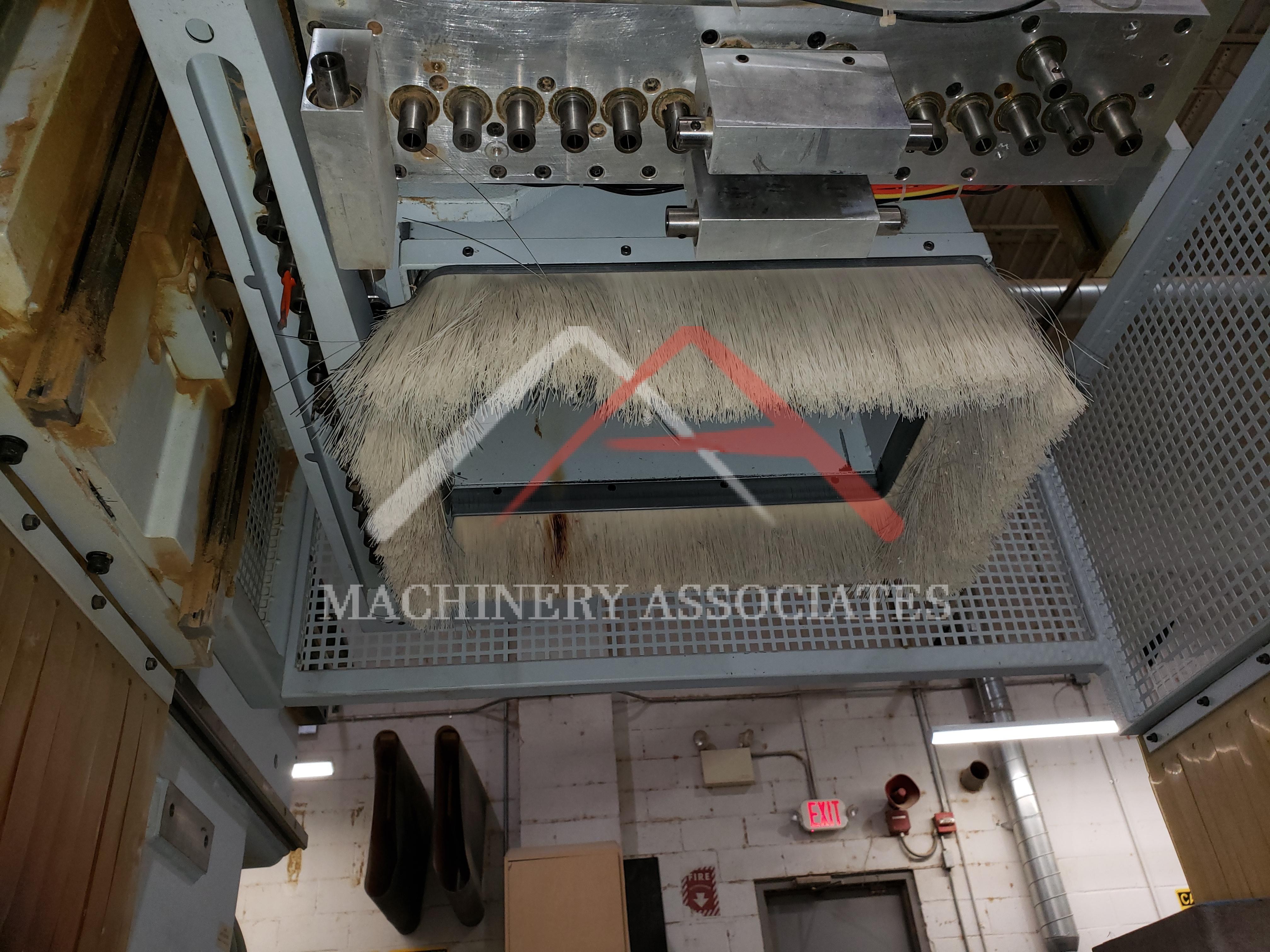

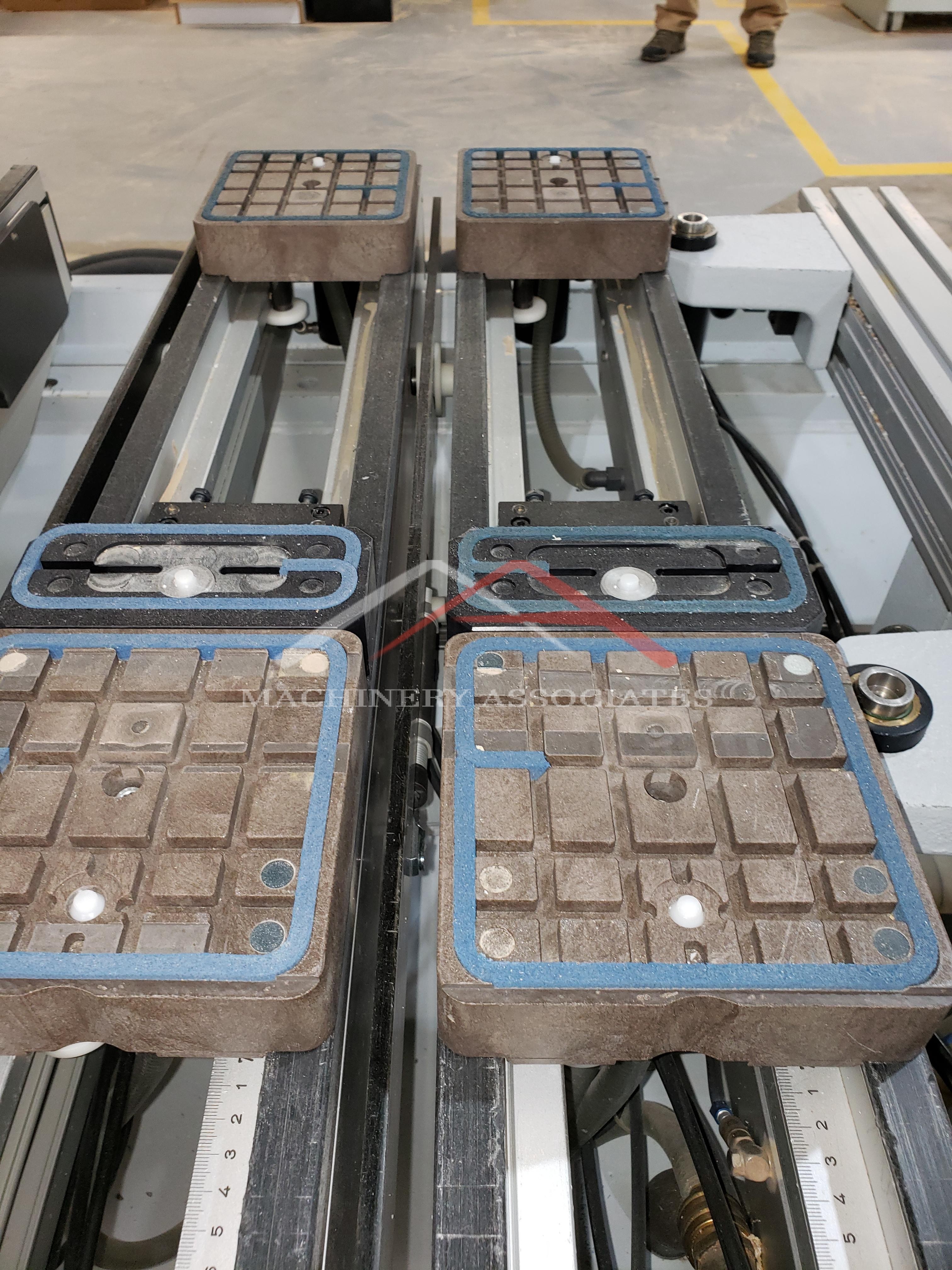

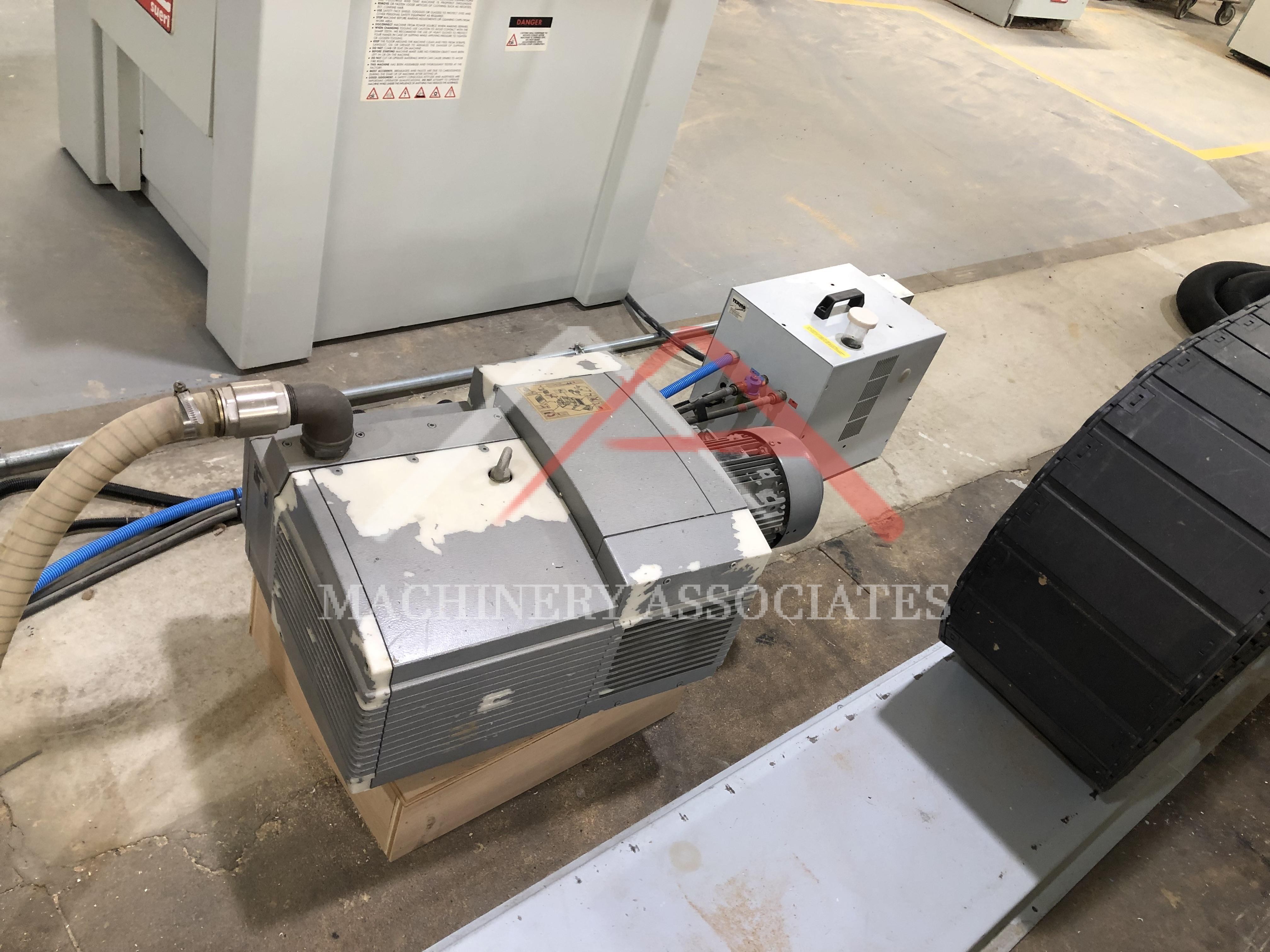

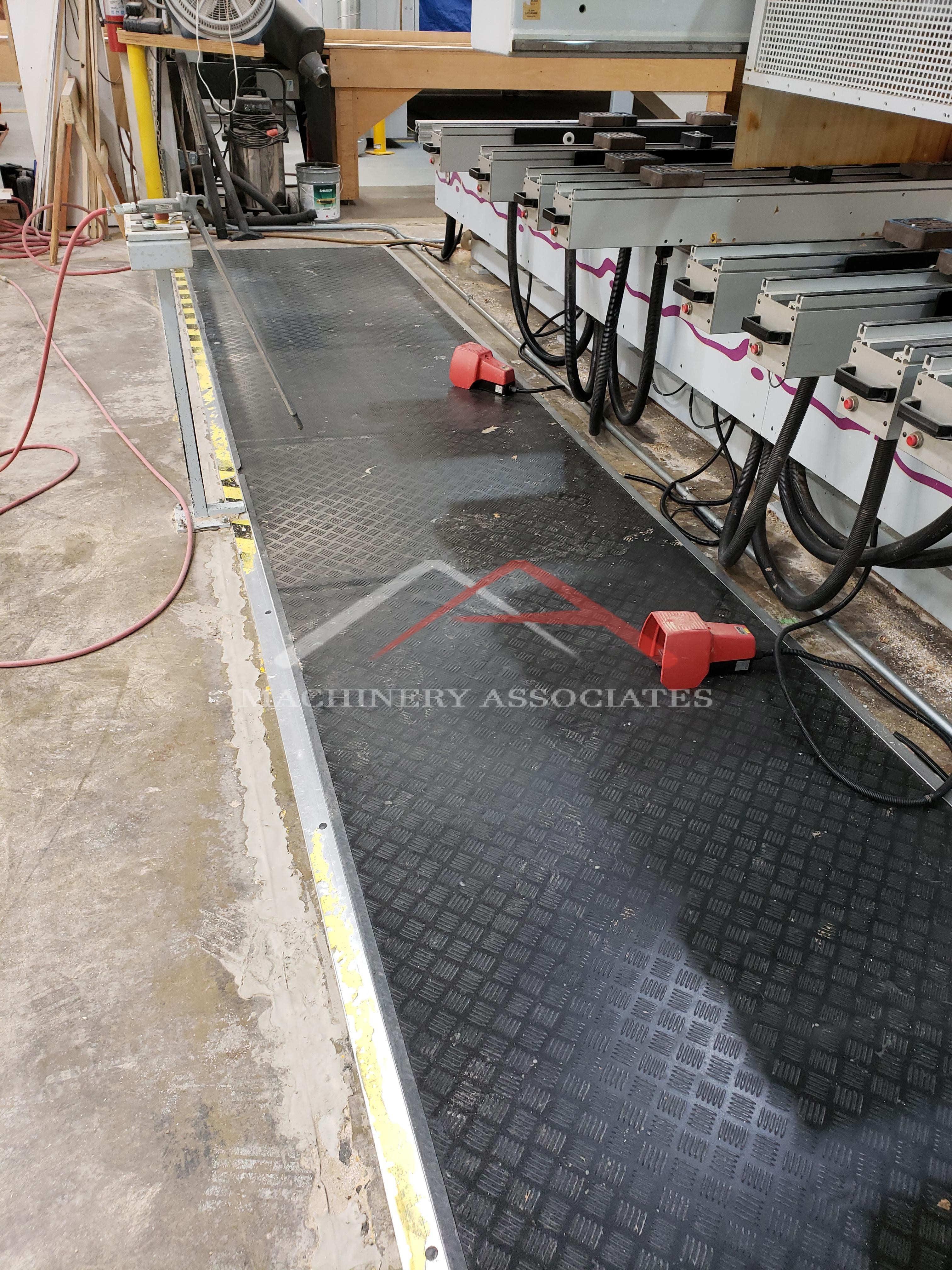

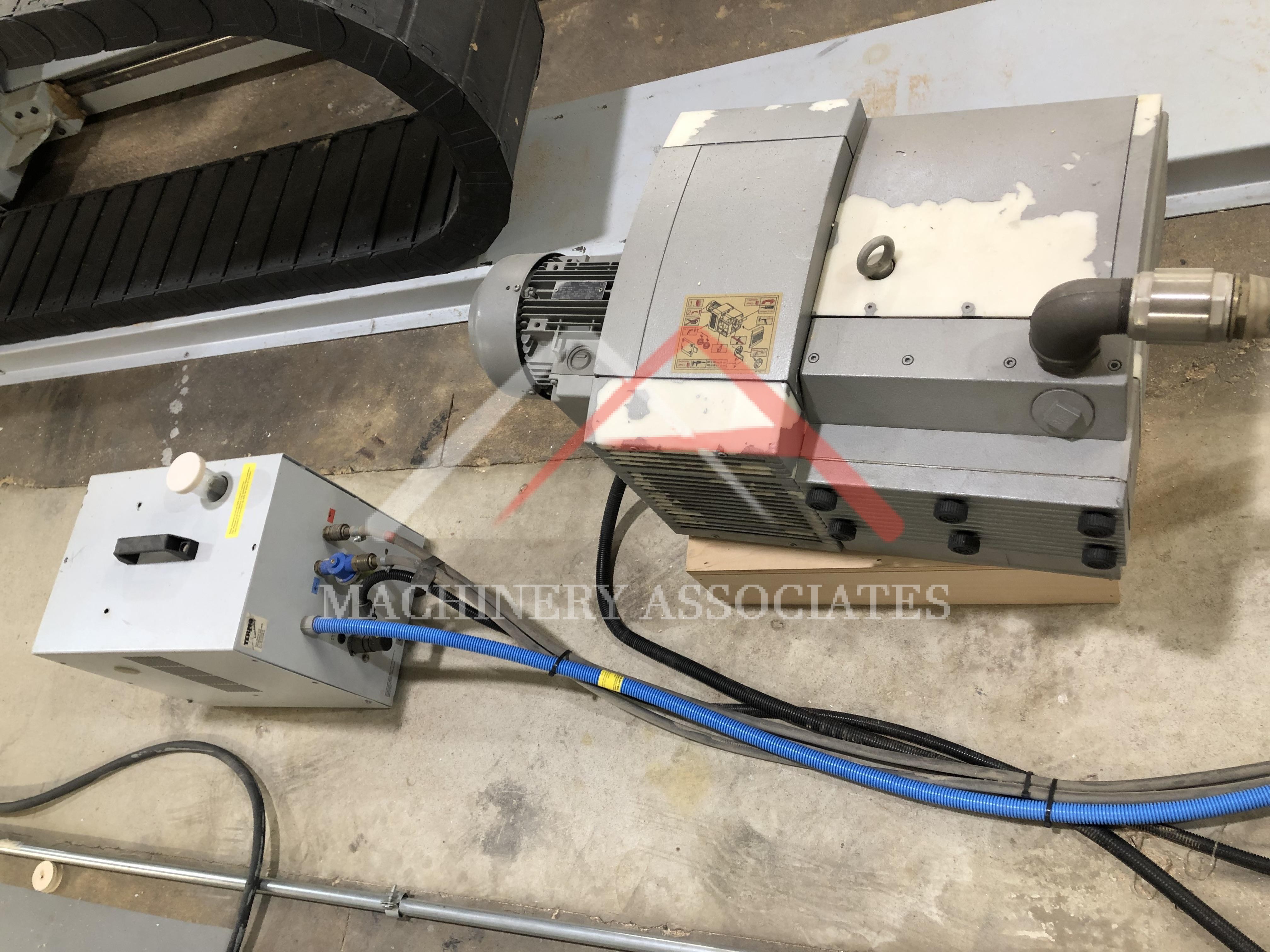

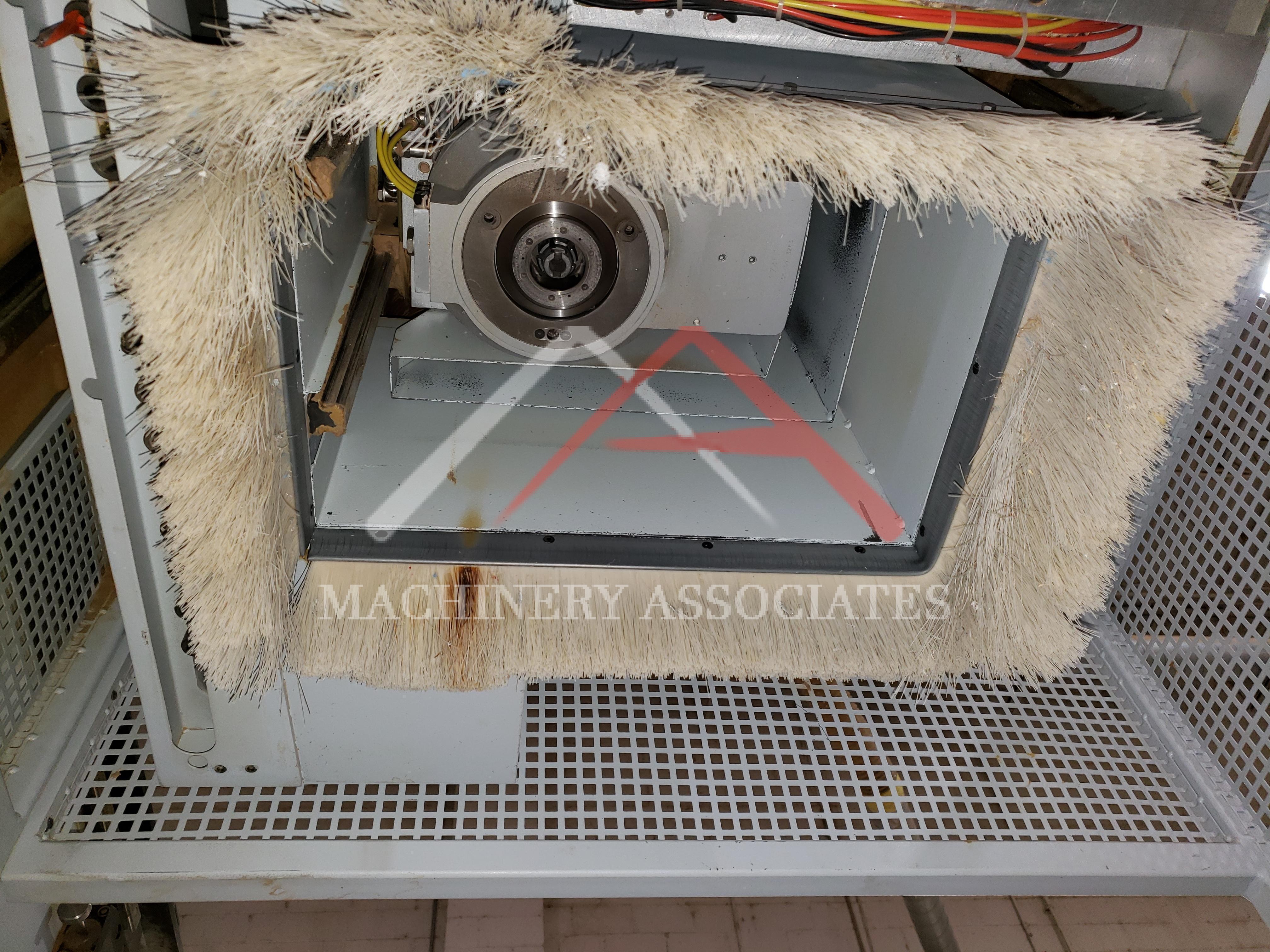

Router Spindle; 7.5 kW (10hp) (power constant from 9000 rpm to 18000 rpm) ATC Tool Magazine; 8 tools Auxiliary router; 5 kW (7hp) (non ATC, collet style) Drill Block; Number of vertical drilling spindles; 31 Vertical drilling spindle power; 1.5 kW (2hp) Number of horizontal drilling spindles; 6 Horizontal drilling spindle power 1.5 kW (2hp) Table; Number of panel support (Rails); 8 Becker Vacuum pump capacity 100 M3/hr Working length 3250 mm Working width - support bench width 1200 mm Max. panel thickness 100 mm (4”) Max. drilling depth for through holes 38 mm (1.5”) Axis stroke/positioning speed X-axis 4730 mm/80 M/min Y-axis 1685 mm/80 M/min Z-axis 280 mm/25 M/min
Machine weight 5500 kg |
|
| Shipping Footprint: | 20 (length) x 8 (width) x 8 (height) |
