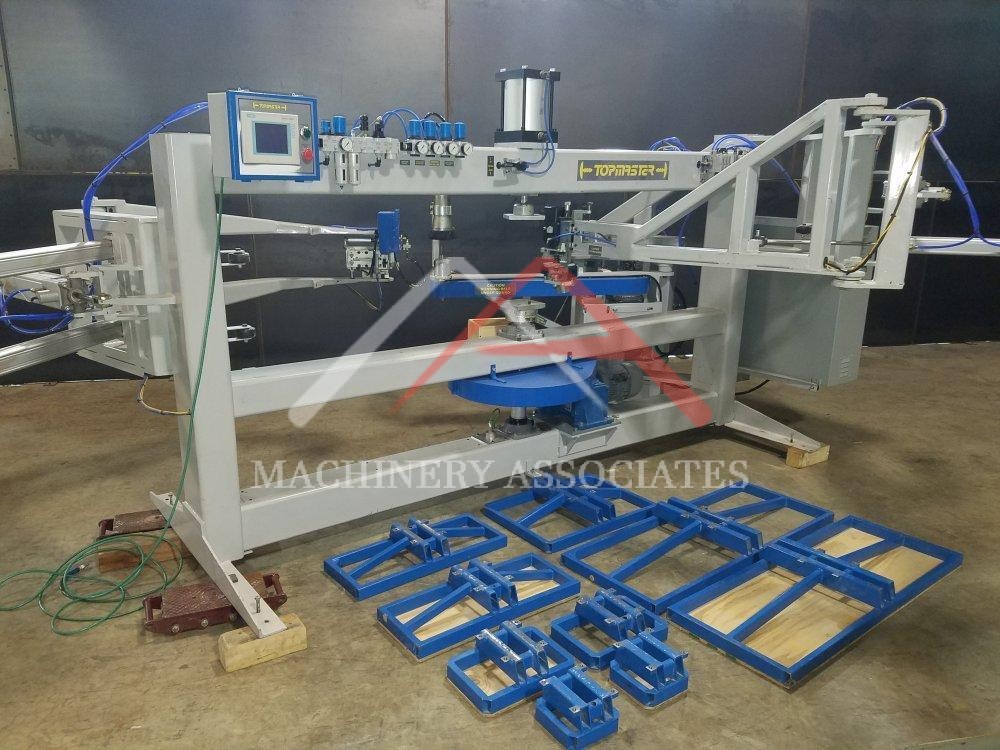

Top Master T-Banding Machine (Used)
.
| MA ID: | TMM - 10999 |
| Status: | Sold |
| Price: | $34,500.00 |
| Category: |
T-Moulding Machines |
| Manufacturer: | Other manufacturer |
| Model: | NAM3000 |
| Year of Manufacture: | 2010 |
| Condition: | Very Good |
| Electric: | 220/440 Voltage 60hz Cycle 3 Phase |
|

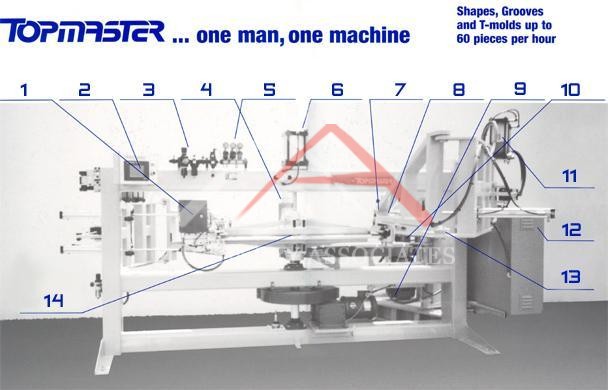

Pending Contract THIS IS THE DISCRIPTION FROM THE TOP MASTER WEBSITE. IT CORRESPONDES NEARLY EXACTLY TO THIS LISTED MACHINE. Picture 1) BANDING HEAD Consistently smooth waveless edges produced with a pivoting roller wheel which is under pressure up to 300 psi. 2) CONTROL PANEL All machine operating controls are located on a single, easy-to-operate touch screen except for the clamping cylinder control which is located above the turntable for the operators convenience and safety. 3) OIL RESERVOIR A light oil mist system keeps all pneumatic lines, valves and cylinders properly lubricated. 4) HOLD DOWN FRAMES To accommodate a different work piece range, hold down frames and templates may be changed in less than 3 minutes. 5) AIR PRESSURE SYSTEM Each arm function is independently controlled with a pressure regulator. 6) CLAMPING CYLINDER Rough cut panel blanks are placed on the turntable and secured in place with the clamping cylinder. (Template is beneath the work piece.) 7) SHAPER HEAD The shaper head uses a 3/4" dia. carbide-tipped router bit for clean, chip free edges. Special tooling is available for low and high pressure laminates. The shaper can be operated independently of the grooving and banding units. 8) OPTIONS High frequency motor grooving system for kerfing or profiling. GROOVING HEAD; Automatically adjusted for panel warpage. A portercable 3 1/4 HP motor mounted on a dove-tail slide. 9) TURNTABLE DRIVE SYSTEM A 3 HP AC motor inverter control coupled with a high torque reduction gear box controls turntable speed. The operator can increase or decrease speed and direction as needed. 10) SHAPER OILER A light misting, 32 oz., system provides lubrication for the high speed shaper bearing. 11) AIR OIL TANKS For smooth Operation. 12 )PLC PLC to control all arm movement. 13) NEW Sealed Torrington spherical radial bearing on all pivot points. 14) TEMPLATES A sizing template is utilized for each shape of work piece. Templates are inexpensive and can be built in less than and hour. Up to two templates are provided with every TopMaster.
1) BANDING HEAD Consistently smooth waveless edges produced with a pivoting roller wheel which is under pressure up to 300 psi. 2) CONTROL PANEL All machine operating controls are located on a single, easy-to-operate touch screen except for the clamping cylinder control which is located above the turntable for the operators convenience and safety. 3) OIL RESERVOIR A light oil mist system keeps all pneumatic lines, valves and cylinders properly lubricated. 4) HOLD DOWN FRAMES To accommodate a different work piece range, hold down frames and templates may be changed in less than 3 minutes. 5) AIR PRESSURE SYSTEM Each arm function is independently controlled with a pressure regulator. 6) CLAMPING CYLINDER Rough cut panel blanks are placed on the turntable and secured in place with the clamping cylinder. (Template is beneath the work piece.) 7) SHAPER HEAD The shaper head uses a 3/4" dia. carbide-tipped router bit for clean, chip free edges. Special tooling is available for low and high pressure laminates. The shaper can be operated independently of the grooving and banding units. 8) OPTIONS High frequency motor grooving system for kerfing or profiling. GROOVING HEAD; Automatically adjusted for panel warpage. A portercable 3 1/4 HP motor mounted on a dove-tail slide. 9) TURNTABLE DRIVE SYSTEM A 3 HP AC motor inverter control coupled with a high torque reduction gear box controls turntable speed. The operator can increase or decrease speed and direction as needed. 10) SHAPER OILER A light misting, 32 oz., system provides lubrication for the high speed shaper bearing. 11) AIR OIL TANKS For smooth Operation. 12 )PLC PLC to control all arm movement. 13) NEW Sealed Torrington spherical radial bearing on all pivot points. 14) TEMPLATES A sizing template is utilized for each shape of work piece. Templates are inexpensive and can be built in less than and hour. Up to two templates are provided with every TopMaster.
|
|
| Shipping Footprint: | 25' (length) x 20' (width) x (height) |
| Weight: | 8000 lbs |
Please confirm all data before committing to a purchase.
