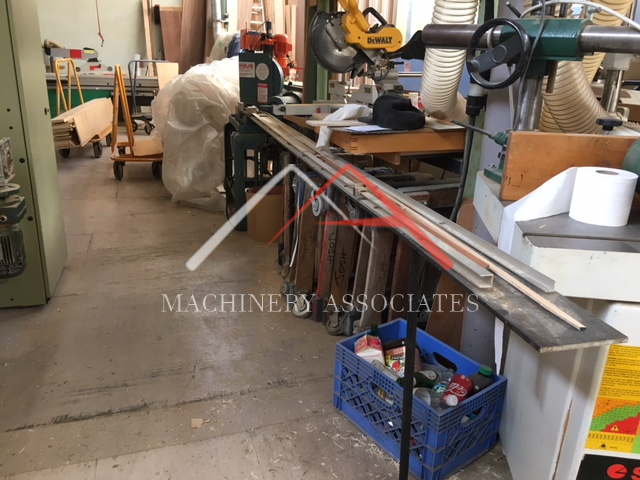

PISTORIUS MN 200 DOUBLE MITER SAW
| MA ID: | SCM - 10836 |
| Status: | Sold |
| Price: | $3,900.00 |
| Category: |
Cutoff/Miter/Toe Notchers |
| Manufacturer: | Pistorius |
| Model: | MN-200R |
| Condition: | Very Good |
| Electric: | 230 Voltage 60 Cycle 3 Phase |
PISTORIUS MN 200 DOUBLE MITER SAWModel MN-200 for wood, aluminum, plastics and fiberglass Cutting dimensions: 2-5/8" Max. height & 3-5/16" max. width capacity. Motors: (2) 1.5HP with saw RPM of 3,450. Blade: 12" blade diameter capacity. 5/8" diameter belt driven saw arbors. Non-staggered blade movement - not for notching, only approx. 7" of travel is necessary to complete the stroke of the sawblades. Simultaneously cuts a left and right 45 degree miter with each cycle of the machine thus wasting little material. Leaves hands free to hold the material. Easy to regulate the cutting speed. The counterbalanced sawheads return automatically. The sawblades extend beyond the fence line when cycling, cutting completely through the material. Includes: Foot pedal operated, actuated by air; 12' fence for length support: Scrap discharges to the bottom of the machine. Air filter with regulator and lubricator.
|
|
| Shipping Footprint: | 12 (length) x 5 (width) x 5 (height) |
| Weight: | 1000 lbs |
