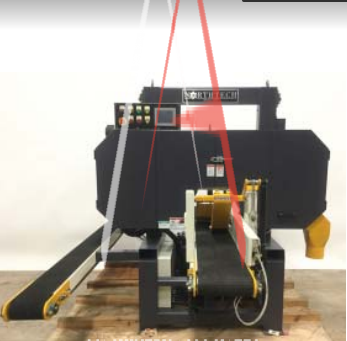

NORTHTECH HBR300 S HORIZONTAL BAND RESAW

NORTHTECH HBR300 S HORIZONTAL BAND RESAW

MA ID: SBS-11536
Price: $20,900.00 -or- as low as $422.39/mo.*
General Location: Midwest
Category:

Band/Scroll Saws

Manufacturer: Northtech
Model: HBR300 S
Year of Manufacture: 2013
Condition: Excellent
Electric 460 volt, 60 cycle, 3 phase
Late model Demo machine available at big savings to you.

Working capacity: Width 11-1/2" x height 6-1/2"; minimum thickness 3-8".

Wheels: (2) 1" x 28" with saw blade dimension of 1-1/8" x 170". Blade tensioning with 1 HP hydraulic unit.

Feed: Belted infeed conveyor belt 11" in width x 107" long; height off floor 36-1/2". Speed 0-95 FPM with 5 HP motor with hydraulic drive. Return conveyor (shuttle) 7" x 107".

Saw motor: 20 HP with with hydraulic drive; air cooled.

Hold-downs: infeed/Outfeed ---  pneumatically operated and  are independently air regulated for optimum control. Includes lineal/metric scale located by elevation wheels for quick reference. cam screws for raise and lower of table for height adjustment with 1/4 HP motor.

Saw guides: Solid framed guide mount for extra blade control;  adjustable spray nozzle for lubrication in conjunction with preset electrically operated air oil mist. Limit switches at height adjustment to prevent errors.

Shipping Footprint: 112 (length) x 89 (width) x 85 (height)
Rigger: Not Required
All Information including Photos and Videos are supplied by a 3rd party Source.
Please confirm all data before committing to a purchase.
*Subject to credit approval. Additional programs available.
