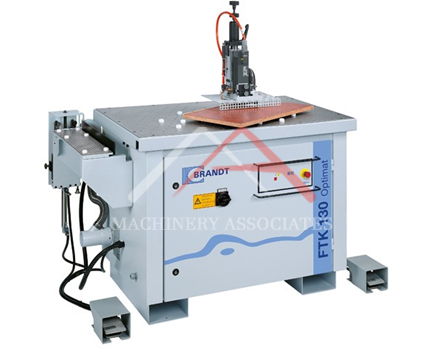

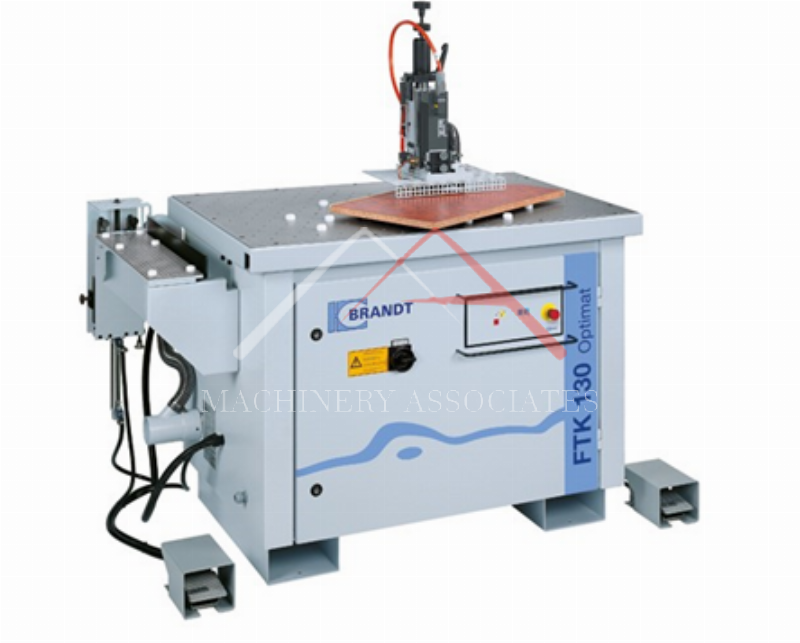

Brandt FTK130 Contour Edgebanding trimmer

This Brandt FTK-130 Contour Edgebanding Trimmer is barely used. Its in excellent condition.

MA ID: EBC-11039
Price: Call For Price
General Location: Atlantic
Category:

Edgebanders - Contour

Corner Rounding Machines and Straight Trimmers

Manufacturer: Brandt
Model: FTK-130
Condition: Excellent
Electric 230 volt, 60 cycle, 3 phase
PERFECT COMPANION TO THE BRANDT KTD-720 CONTOUR EDGE BANDER. THIS BRANDT FTK-130 IS CLEAN AND READY TO GO RIGHT TO WORK!

TECHNICAL SPECS:

  • PART THICKNESS RADIUS; 16-55 MM
  • PART RADIUS CHAMFER ;               12-55 MM
  • MIN PART WIDTH; 30 MM
  • MIN INSIDE RADIUS; 35 MM
  • (2) TRIMMING MOTORS ;  0.35 KW, 11,800 RPM’S
  • ELECTRICAL CONNECTION; 3 AMPS @ 230 VOLT
  • DUST OUTLET; 80 MM @ 400 CFM

DESCRIPTION:

  • TRIMS PVC EDGES UP TO 3MM THICK
  • TOP AND BOTTOM TRIMMERS FLOAT INDEPENDENT TO TOP/BOTTOM SURFACE
  • BLOWING DEVICE FOR REMOVING CHIPS ON PANEL
  • NO FIXTURES REQUIRED UNDER WORKPIECE

INCLUDES OPTIONAL EK-13 END TRIMMER MOUNTED TO SIDE OF MACHINE!



PICTURES COMING SOON!!

Shipping Footprint: 4 (length) x 5 (width) x 4 (height)
Weight: 1800 lbs
Rigger: Not Required
All Information including Photos and Videos are supplied by a 3rd party Source.
Please confirm all data before committing to a purchase.
*Subject to credit approval. Additional programs available.
