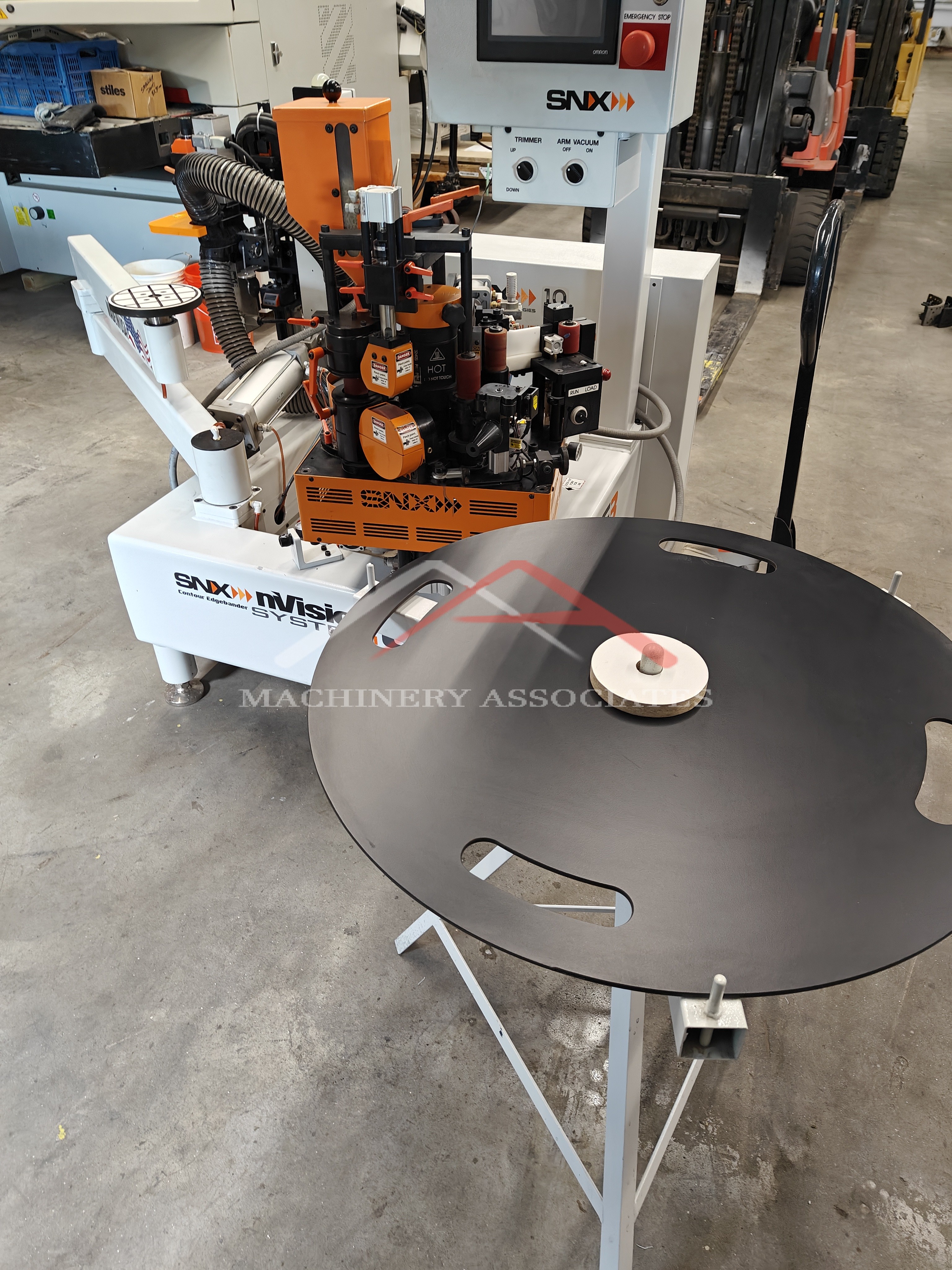

SNX nVision System1 G3 Contour Edgebander

A lightly used machine in terriffic condition! The machine is very close to new condition.

MA ID: EBC - 13491
Price: $29,500.00
Category:

Edgebanders - Contour

Manufacturer: SNX Technologies
Model: nVision System1 G3
Year of Manufacture: 2018
Condition: Excellent
Electric: 208-230 Voltage 60 Cycle 3 Phase
SNX Technologies, Contour Edgebander System.


SNX nVision System1 G3



Trim Motors: 2 x 0.5 KW (.75 HP)12000 RPM, variable Speed high frequency motors for edge trimming

Maximum edge strip thickness: 3 mm (PVC)
Maximum edge strip height: 60mm

3" Dust extraction port

Manual adjustment of the trim motors for work piece thickness via hand lever.

Pneumatic opening of the trim motors to facilitate the introduction of the panel

(2) two stepped radius cutter heads with 1mm, 2mm and 3mm

(4) four digital readouts for fast radius and panel thickness changeovers

Guiding and positioning of trimming function around the contour of the work piece is done manually by the operator.






Shipping Footprint: 7 (length) x 5 (width) x 5 (height)
Weight: 1800 lbs
