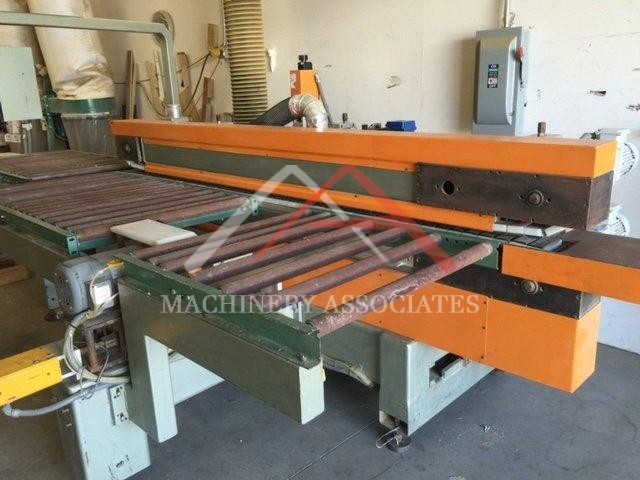

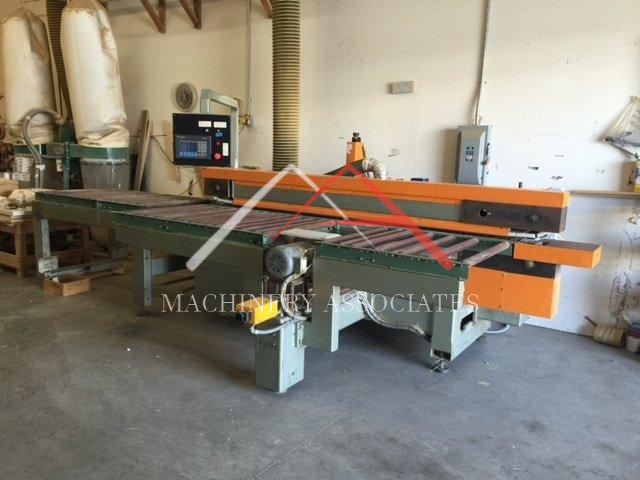

PROFILEMATIC MODEL V1005 MULTIHEAD LINEAR

MA ID:	VG - 8834
Status:	Sold
Price:	$13,500.00
Category:	V-Groovers/Panel Groover
Manufacturer:	Profilematic
Model:	V-1005
Year of Manufacture:	2000
Condition:	Fair
Electric:	220 Voltage 60 Cycle 3 Phase

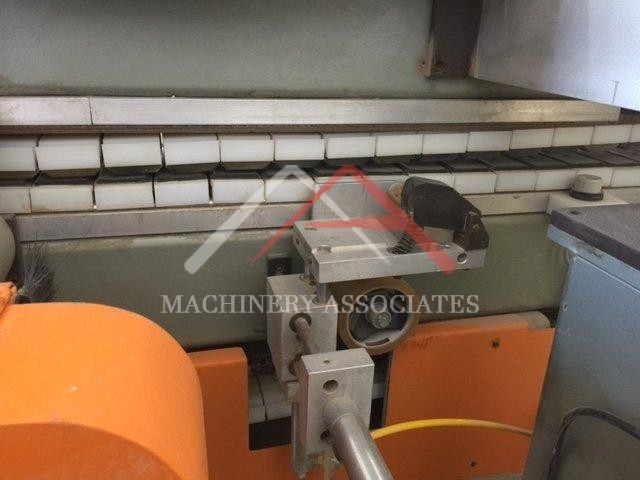

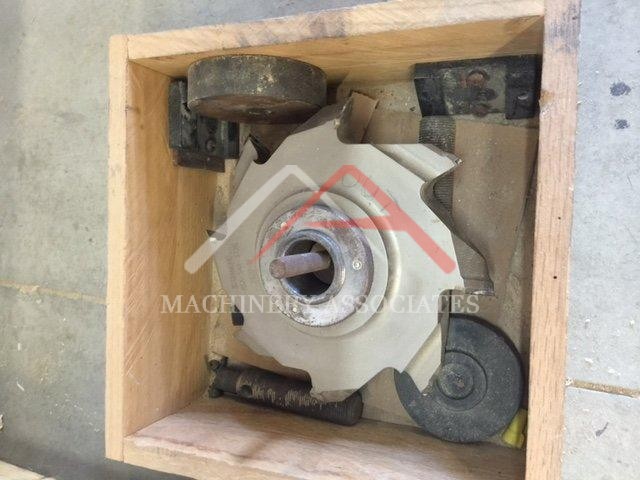

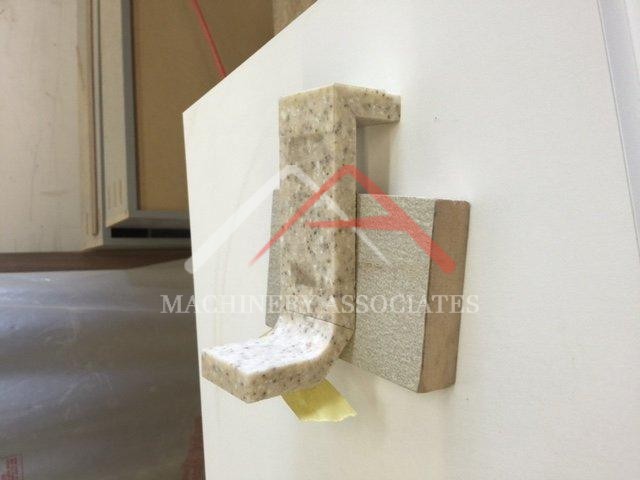

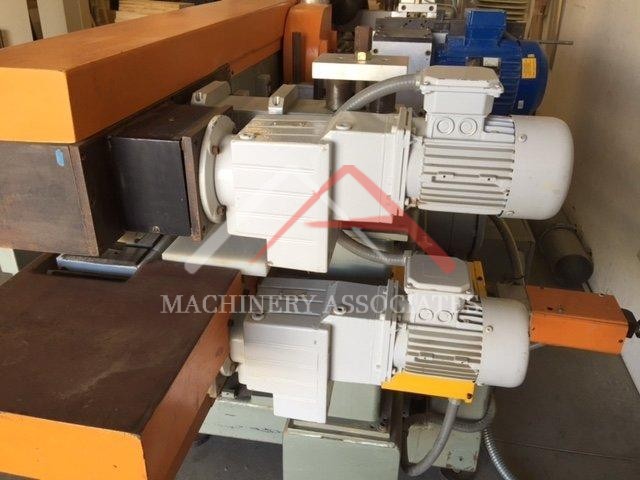

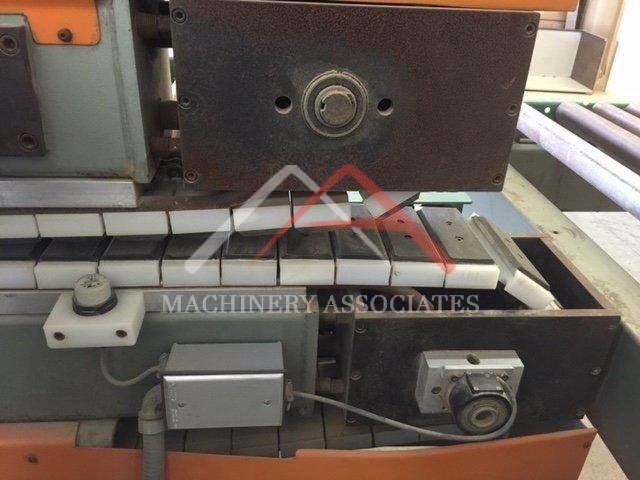

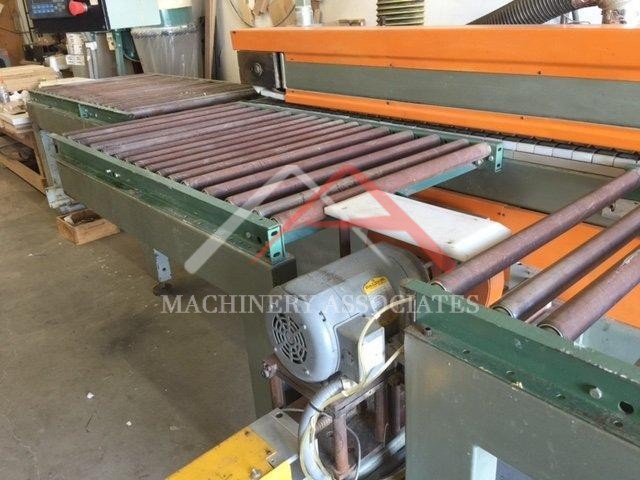

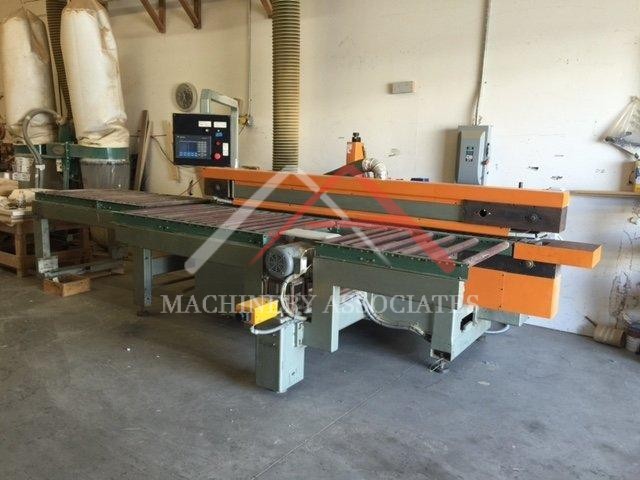

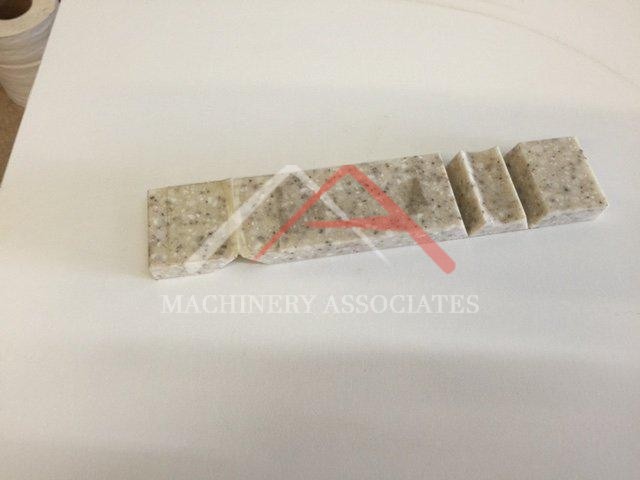

PROFILEMATIC MODEL V-1005 MULTIHEAD LINEAR "V" GROOVER \| USED AUTOMATIC FEED THROUGH MACHINE FOR PROFILING AND V-GROOVING SOLID SURFACE AND WOOD MATERIALS. FEED SYSTEM: 1.5 HP, 6" WIDE, AC VARIABLE SPEED TOP AND BOTTOM DRIVEN FEED CHAINS WITH NON-MARKING RUBBER PAD INSERTS TRAVELING ON HARDENED GROUND 0.625" DIA. RODS; VARIABLE SPEED FEED RATE FROM 5 - 40 FPM. STATION 1: 10-HP 3,450 RPM VERTICAL SHAPER HEAD WITH TEFC AC MOTOR. MOTOR PLATE SLIDES ON PROFILE GUIDEWAY FOR Y-AXIS MOVEMENT. EQUIPPED WITH A HEAVY DUTY CUTTER GUARD WITH A 4" DIA. DUST OUTLET. STATION 2: HORIZONTAL V-GROOVING HEAD WITH 7.5 HP, 3,450 RPM (SAW DUTY) TEFC MOTOR, 4" DUST COLLECTION OUTLETS. MOUNTED ON BLOCK SLIDE COLUMN FOR UP-AND-DOWN DEPTH ADJUSTMENT (Z-AXIS) AND BLOCK SLIDES FOR IN-AND-OUT ADJUSTMENT (Y-AXIS) APPROX. 6" IN-AND-OUT. STATION 3: 7.5 HP RIP SAW FOR BACK-SPLASHES (COUNTER-TOP PRODUCTION) COMPLETE WITH: ADJUSTABLE INFEED FENCE SYSTEM; 3" WIDE AIR ACTIVATED AUTOMATIC TAPE APPLICATOR WITH AUTOMATIC CUTOFF; ELEVATED CONTROL PANEL WITH ALLEN BRADLEY "PANEL VIEW 300" PLC; SAFETY AND CUTTER GUARDS. INFEED FRONT TABLE SUPPORTS AND SIDE TABLE WITH ROLLER-BALL SURFACE. MACHINE INCLUDES TOOLING.
Rigger:	Required on selling end
