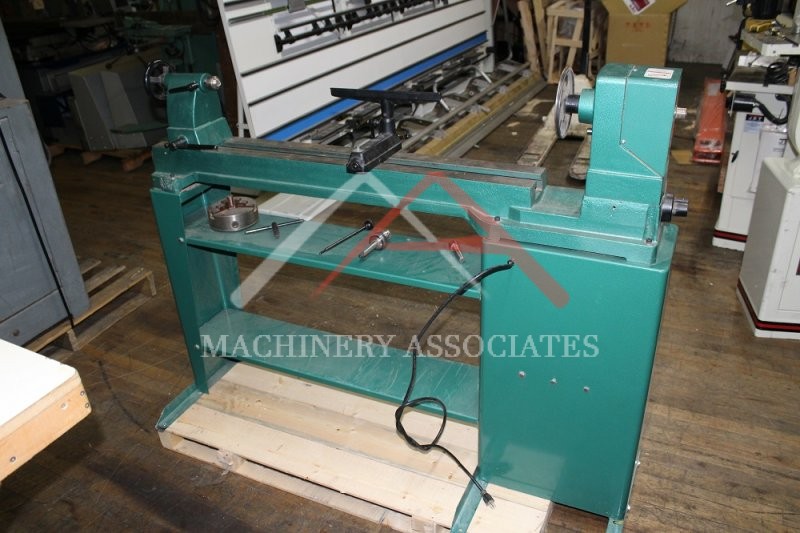

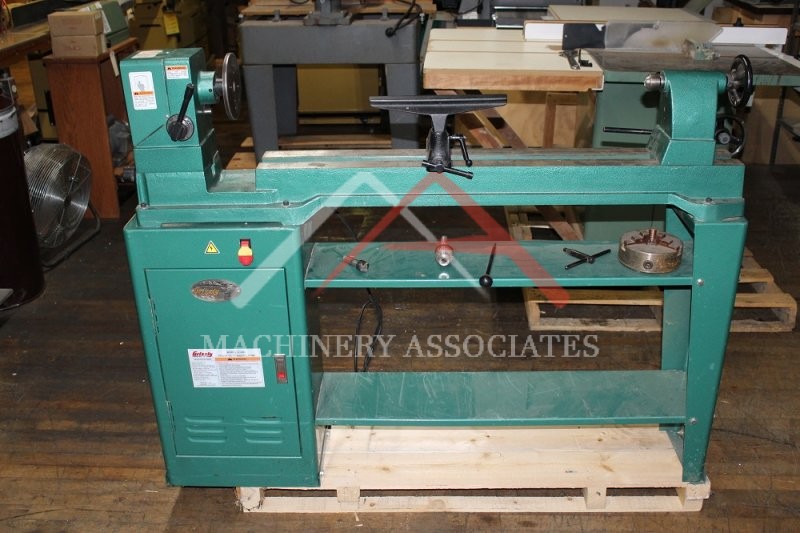

Inventory ID# 530182 Wood Lathe $765.00
Electrical:
Power Requirement: 110V or 220V, Single-Phase, 60 Hz
Prewired Voltage…………………………………………………….. 110V
Full-Load Current Rating………………. 12A at 110V, 6A at 220V
Minimum Circuit Size………………… . 15A at 110V, 15A at 220V
Connection Type…………………………………………… Cord & Plug
Power Cord Included………………………………………………… Yes
Power Cord Length………………………………………………….. 6 ft.
Power Cord Gauge……………………………………………. 18 AWG
Plug Included…………………………………………………….. .. Yes
Included Plug Type…………………………………….. 5-15 for 110V
Recommended Plug Type…………………………… 6-15 for 220V
Switch Type…………… Paddle Safety Switch w/Removable Key
Motors:
Main
Type. TEFC Capacitor-Start Induction
Horsepower………………………………………………………… 3/4 HP
Phase……………………………………………………….. Single-Phase
Amps……………………………………………………………….. 12A/6A
Speed…………………………………………………………… 1725 RPM
Power Transfer ……………………………………………….. Belt Drive
Bearings………………………. Shielded & Permanently Lubricated
Main Specifications:
Operation Information
Swing Over Bed…………………………………………………….. 14 in.
Distance Between Centers……………………………………………………………….. 40 in.
Swing Over Gap…………………………………………………… 17 in.
Swing Over Tool Rest…………………………………………………………………….. 10 in.
Swing Over Tool Rest Base…………………………………………………………………… 10 in.
No of Spindle Speeds………………………………………………… 7
Spindle Speed Range…………………………….. 500 – 3070 RPM
Floor to Center Height……………………………………….. 41-1/2 in.
Spindle Information
Spindle Taper……………………………………………………….. MT#2
Spindle Thread Size………………………………………. 1″ x 12 TPI
Spindle Thread Direction………………………………. Right Hand
Spindle Bore………………………………………………………. 0.388 in.
Type of Included Spindle Center………………………………………………………………….. Spur
Indexed Spindle Increments………………………………….. 30 deg.
No of Indexes……………………………………………………………. 12
Outboard Spindle Thread Direction……………………. Left Hand
Outboard Spindle Size…………………………………………………………………….. 7/8 in.
Outboard Spindle TPI…………………………………………… 16 TPI
Tool Rest Information
Tool Rest Width…………………………………………………. 11-7/8 in.
Tool Rest Post Diameter………………………………………….. 3/4 in.
Tool Rest Post Length………………………………………….. 2-3/8 in.
Tool Rest Base Height………………………………………. 1-15/16 in.
Tailstock Information
Tailstock Taper………………………………………………………. MT#2
Type of Included Tailstock Center……………………………………………………………………. Live
Construction
Bed…………. …. Precision-Ground Cast Iron
Frame……………………………………………………………… Cast Iron
Stand………………………………………………….. Pre-Formed Steel
Base…………………………………………………………. Formed Steel
Headstock………………………………………………………… Cast Iron
Tailstock…………………………………………………………… Cast Iron
Paint Type/Finish…………………………………………………. Enamel
Other Related Information
Bed Width……………………………………………………… …. 5-1/2 in.
Faceplate Size………………………………………………………… 6 in.
