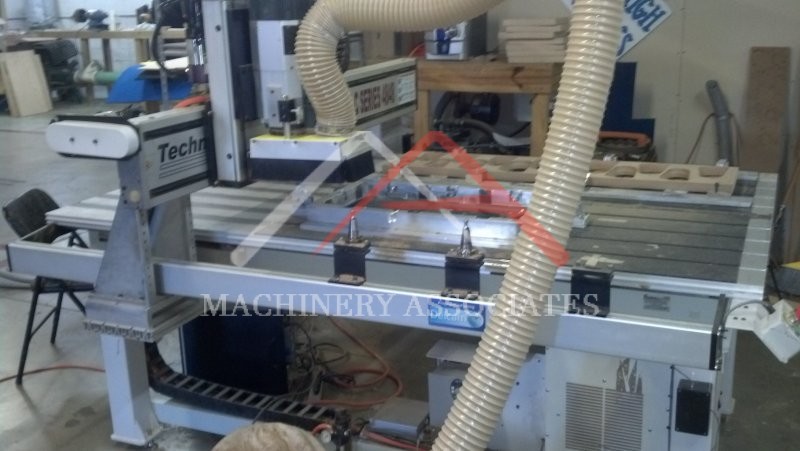

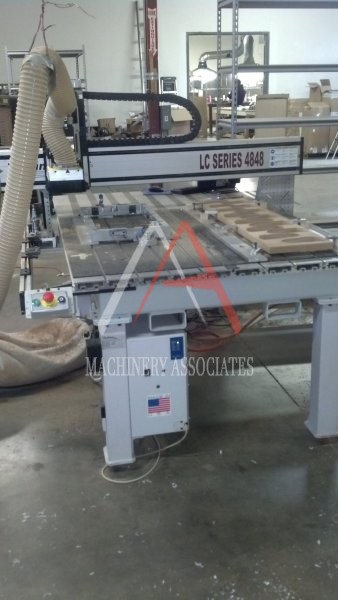

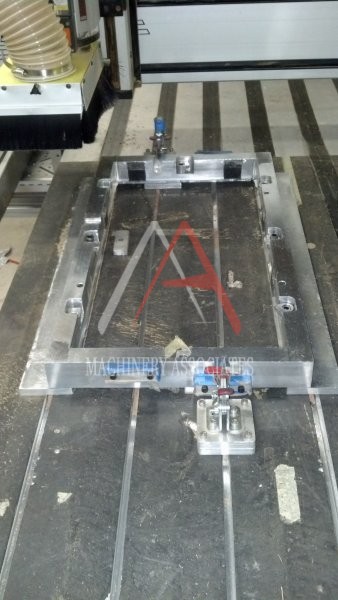

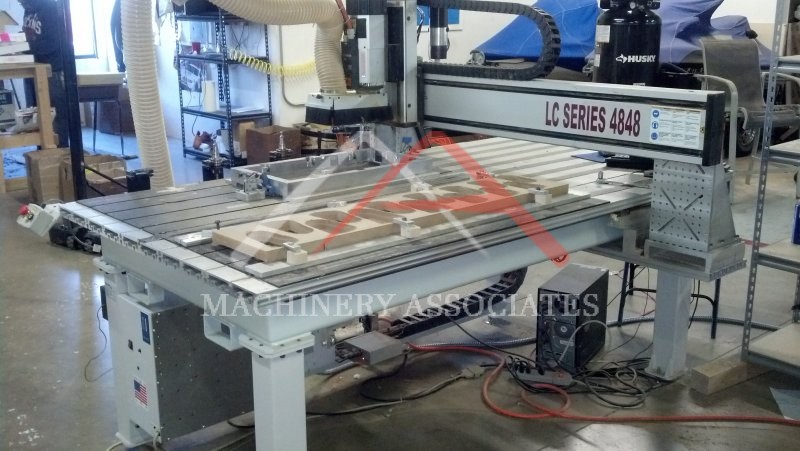

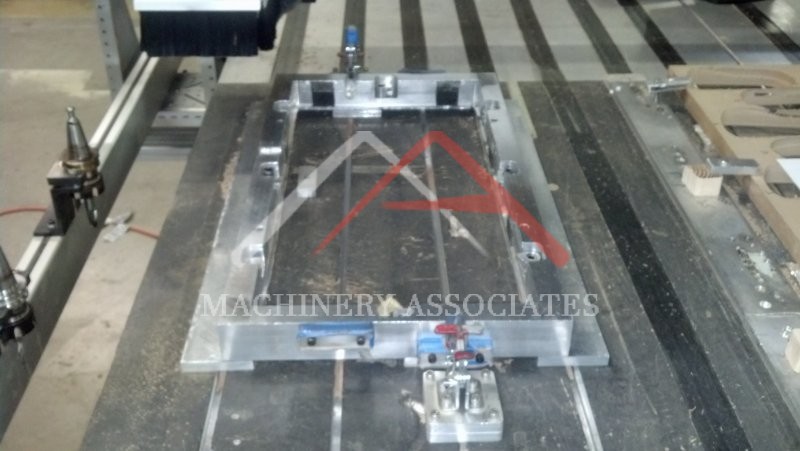

Techno 4848 LC Series CNC Router
| MA ID: | RC3 - 6270 |
| Status: | Sold |
| Price: | $16,950.00 |
| Category: |
CNC Router (3-axis) |
| Manufacturer: | Techno |
| Model: | LC 4848 |
| Condition: | Good |
| Electric: | 110V Voltage 3 Phase |
|

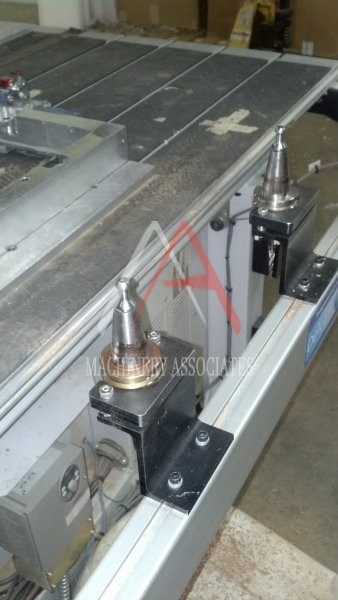

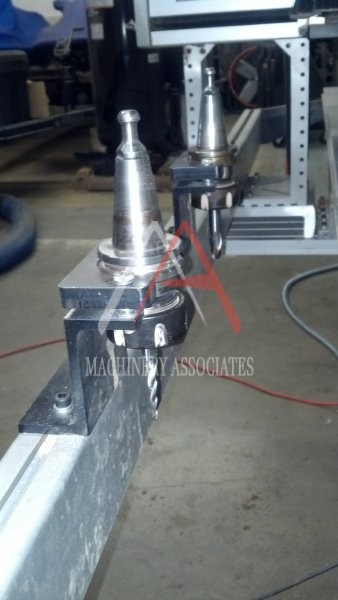

Model 4848 High Speed/High Power LC Series CNC Router X-Axis Travel = 50.0"; Y-Axis Travel = 50.0"; Z-Axis Travel = 5.0" System Power Requirements = 110V Includes tool calibration touchpad Drive system: Balls Screws on X, Y, and Z axes with anti-backlash ball nuts. Drive System is closed loop DC servo control Comes complete with servo control card and Windows-based user-friendly software interface Max. speed: 800 in/min Control voltage full load amperage: 6.3amps Computer requirements (not included with machine): Pentium III / Celeron 600 Mhz, 128MB RAM or more with full PCI slot to handle 6"-long card. 5HP HSD Automatic Tool Changer (220V, 3-phase) Fully programmable speeds from 12,000 to 24,000 RPM Full load amperage = 14.4amps; a dedicated 20amp circuit is recommended
|
|
Please confirm all data before committing to a purchase.
*Subject to credit approval. Additional programs available.
More CNC Router (3-axis) Machines For Sale
More Techno Machines For Sale
Techno CNC Router
Email for More Information
Request a Quote on Freight
Request a Quote on Financing
Location: Midwest
