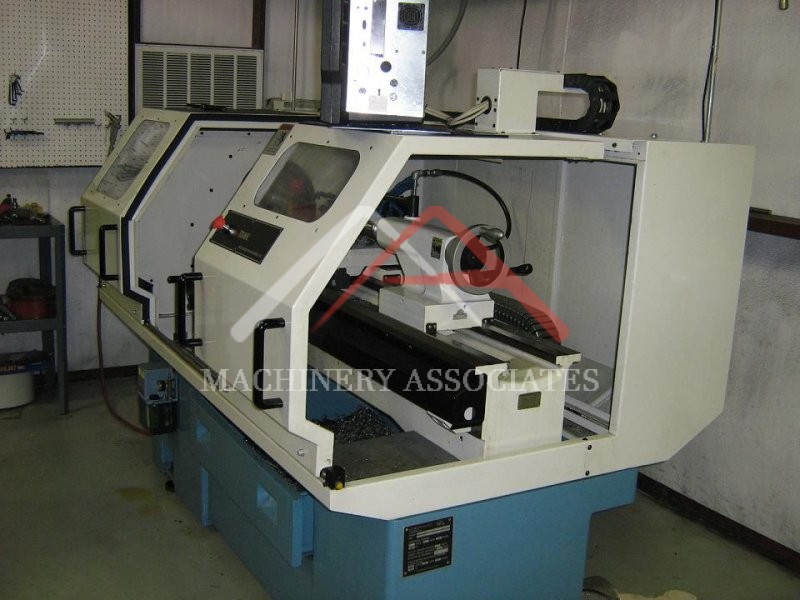

2007 Prototrak TRAK1540SX (CNC Tool Room Lathe)

2007 Prototrak TRAK1540SX

CNC Tool Room Lathe

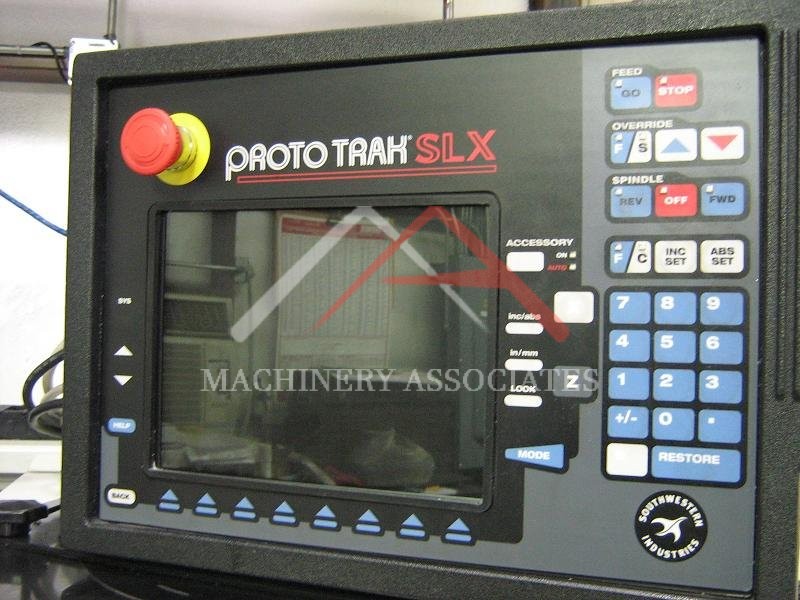

Control: Prototrak SLX

• Height of Centers - 8"
• Distance between centers - 40"
• Swing over bed -15"
• Swing over saddle wings -15"
• Swing over cross slide – 6 5/8"
• Cross slide travel – 11½"
• Tool section max 3 /4"
• Coolant tank capacity- 12 gal.
• Width of Bed-12 5/8"
• Height of Bed-12 5/8"
• Spindle Nose – A2-5
• Spindle through hole – 2 1/8"
• Spindle taper-MT#6
• Taper in reduction sleeve –MT#4
• Spindle dia at front bearing-3.15"
• High-speed angular contact bearings
• Number of bearings-5
• Bearing class (radial round)-P2 (ABEC 9)
• Spindle speed range (RPM)-150-4000
• Tailstock Quill travel-5"
• Quill diameter-2.36”
• Quill taper hole-MT#4
• Spindle Motor HP -10
• Power requirements, control-110V; 1P; 15 A
• Power requirements, machine-220V;3P;60Hz
• Amps full load current-33
• Dimensions net LxWxH - 89x 53 x 70"
• Dimensions shipping LxWxH- 90 x 55 x 73"
• Weight net - 4100 lbs.
• Weight shipping - 4650 lbs.
• Maximum rapid feed X, Z- 100, 250 ipm
• Coolant pump motor -1/8 HP
• Spindle motor brake - Dynamic braking
• Way surface hardness - 400 - 450 HB
• Direct drive headstock – no gear shifting
• Quiet operation
• Dual sliding doors to control chips and coolant with one door removable
• Meehenite cast monolithic base
• Heavy ribbed base construction
• Bedways hardened and ground
• Sliding surfaces Turcite coated
• Dovetails on cross slide, V-ways on saddle
• Adjustable saddle gibs

INCLUDED OPTIONS

• Advanced Features SLX
• Chuck – 6” A2-5
• Coolant Pump
• Gang Tooling
• Work Lamp
• Network and Memory
• TRAKing Option
• Tooling Kit, ¾”

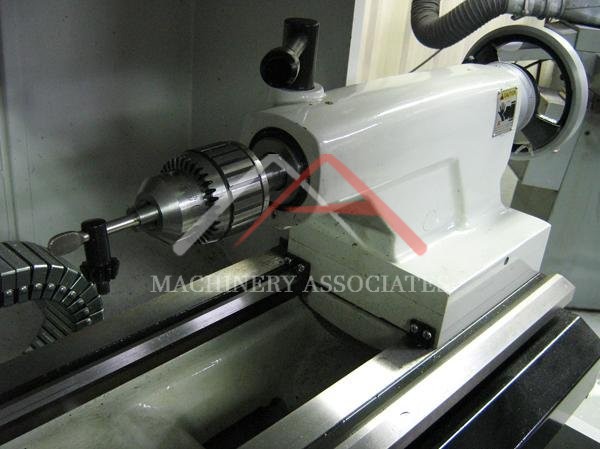

• Tailstock
