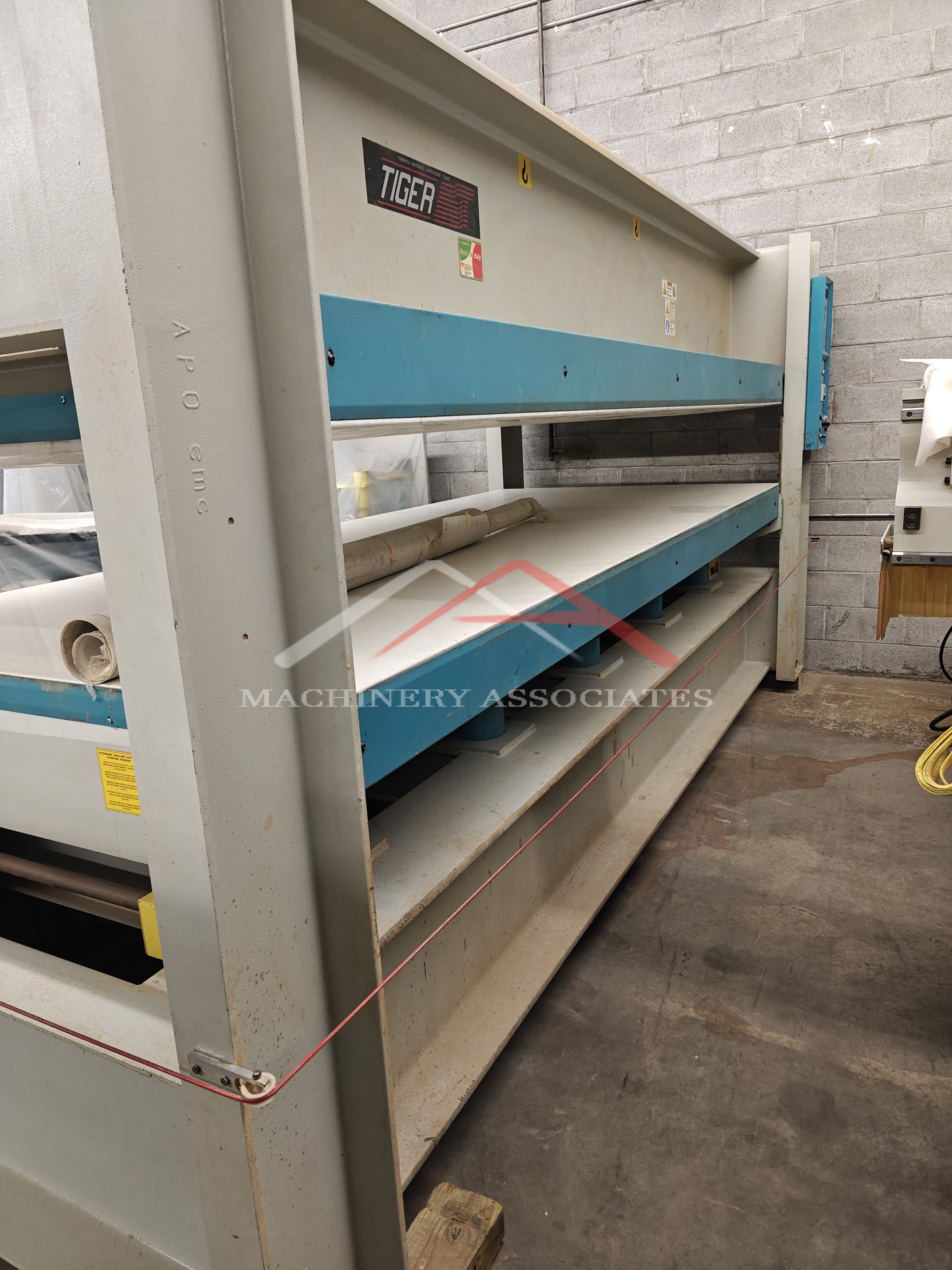

Tiger Gamma T-190 Hot Press (Made by Italpresse)

Italpresse Model XL/10 38-16 PMBO Hydraulic Hot Press

Platen dimensions: 3,800 x 1,600 mm (149 x 63 in.)

Number of daylights: 1

Total cylinder stroke: 400 mm (15-3/4 in.)

Number of pressing cylinders: 10

Diameter of pressing cylinders: 85mm each

Total thrust: 190 metric tons (418,878 lbs)

Max. laminating pressure on 80% of platen area 4.17 kg/cm2 (60 psi)

Max. laminating pressure on 100% of platen area: 3.34kg/cm2 (48 psi)

Hydraulic pump: 3 kw (4 hp)

Boiler power: 36 kw

Maximum platen temperature: 120C (248F)

Torsion free, heavy-duty press frame fabricated from welded structural steel

Massive, solid steel platens drilled for circulation of thermal oil - superior heat characteristics!

Platens covered with easy to replace, glue resistant Mylar film Self-lubricating corner guides and rack and pinion system to maintain parallelism of the press platens during opening and closing

Automatic regeneration of pressure during press cycle

Electrical resistance thermal oil boiler, complete with circulation pump, expansion tank, thermostatic controls, and automatic startup timer

Color graphic touch screen controller with the following features:

Memory for 200 programs containing different panel dimensions, laminating pressures, cycle times, and platen temperatures Automatic calculation of the hydraulic pressure based on programmed panel dimensions

Automatic exclusion of one or two pairs of press cylinders based on programmed panel dimensions

Digital temperature control of the platen temperature

Digital pressing timer with automatic initiation of press opening and panel unloading

7-day auto startup and shut down timer for the thermal oil boiler PLC I/O status monitoring for troubleshooting

Display of fault and warning messages

EFC System - sensors to detect deflection of the lower platen and stop the buildup of pressure in case of improper positioning of the panels

Dual cycle-start buttons requiring two hands to initiate cycle for safety

Safety pull rope on all four sides with emergency stop switch

Safety locking plates to secure the mobile lower platen while performing maintenance on the hydraulic system

UL approved electrical components
