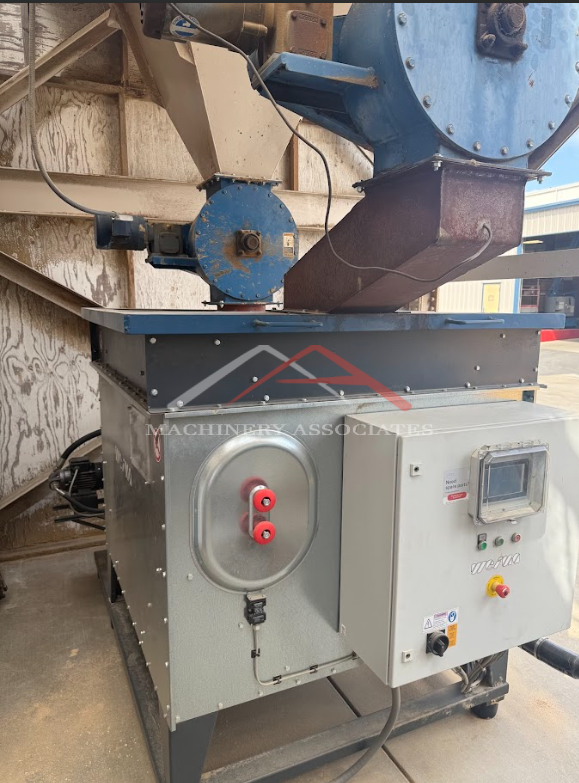

Weima TH 614 Briquette Press
Makes high density 60mm Pucks
| MA ID: | RPM - 14438 |
| Price: | $39,900.00 |
| Category: |
Pellet/Briquette makers |
| Manufacturer: | Weima |
| Model: | TH 614 |
| Year of Manufacture: | 2019 |
| Condition: | Very Good |
| Electric: | 480 Voltage 60 Cycle 3 Phase |
|
Weima TH 614 Briquette Press (60mmm Pucks)
Briquette diameter [mm]; 60 Throughput rate up to [kg/h]; 100 Hydraulic motor [kW]; 7.5 Hydraulic oil charge [liter]; 160 Weight [approx. kg]; 1100 Space requirement (L×W×H) [approx. mm]; 1,735 × 2,266 × 1,405
MECHANICS Press mechanics with hydraulic cylinder Briquette length monitoring Pressing chamber wear sleeve Chrome plated clamp Stable base frame on rubber feet HYDRAULICS Hydraulic power unit with 160 l tank Safety switch for oil temperature TECHNICAL HIGHLIGHTS Safe, low-vibration footing due to robust machine frames and rubber feet Control cabinet with Siemens PLC control Temperature-monitored hydraulic unit for long service life Dust-reduced pre-compaction thanks to closed system Uniform, high-quality briquettes due to briquette length monitoring Low-wear pressing process thanks to wear sleeve and plates Screw conveyor
https://www.machineryassociates.com/listing/14445/donaldson-40hp-15hp-baghouses-on-a-shared-frame Dumping bin not included |
|
| Shipping Footprint: | 6 (length) x 7.5 (width) x 5 (height) |
| Weight: | 2500 lbs |
