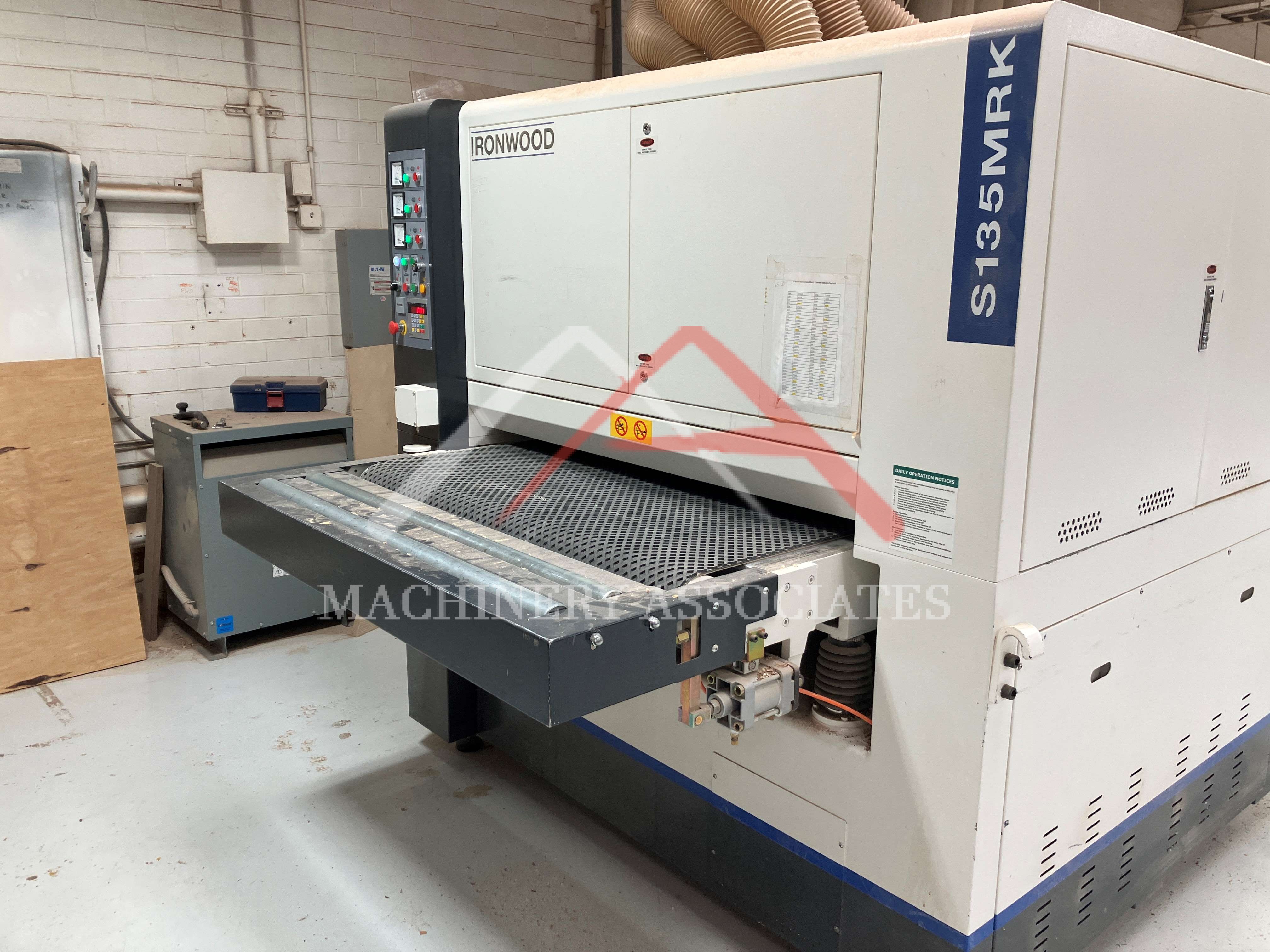

Ironwood S135MRK 3 Head Planer Sander

Nice machine to plane your wide material and have it be finish sanded when it comes out! $$82,500 new!!

MA ID:

PLS - 14277

Status:

Sold

Price:

Call for Price

Category:

Planer-Sander

Manufacturer:

Ironwood

Model:

S135MRK

Year of Manufacture:

2020

Condition:

Very Good

Electric:

460 Voltage 60 Cycle 3 Phase

Hours on meter:

2200

2020 Ironwood S135MRK Planer Sander (3 head)

CALL FOR AVAILABILITY

Technical Specifications

Working width max.	1270 mm (50”)
Conveyor belt width	1270 mm (50”)
Abrasive belt width	1320 mm (52”)
Abrasive belt length	1900 mm (75”)
Work piece thickness min.	9 mm (3/8”)
Work piece thickness max.	125 mm (4.9”)
Work piece length min.	450 mm (17.5”)*
Max stock removal on planer head	4 mm (0.15")
Variable conveyor speed	3.6 – 14 MPM (12 - 46 FPM)
Feed motor	5 HP
Table rise/fall motor	½ HP
Head #1: Helical cutter head	25 HP 65 fps belt speed
Number of insert knives on planer head	195
Knife insert size	30 x 12 x 1.5 mm
Head #1: Rotation direction	Against feed
Head #2: 250mm Ø 85 shore rubber contact roller	25 HP 65 fps belt speed
Head #2: Rotation direction	Against feed
Head #3: Combination head – 140mm Ø 65 shore rubber contact roller with felt pad	25 HP 40 fps belt speed
Head #3: Rotation Direction	Against feed
Electrical connection*	460V \| 3-Phase \| 60 Hz.
Dust collection requirements	4,298 CFM
Dust extraction ports	7 ports \| 123 mm (5”)
Compressed air requirements	90 PSI
Air consumption per cycle	4 CFM**
Air jet belt cleaning air consumption	24 CFM***
Machine net weight	4,450 kg (9,790 lbs.)
Machine gross weight	4,690 kg (10,318 lbs.)
Shipping dimensions (LxWxH)	115” x 91” x 89”

There is an additional planer head (In Box Unused) See last pic

Shipping Footprint:

10 (length) x 8 (width) x 8 (height)

Weight:

10000 lbs
