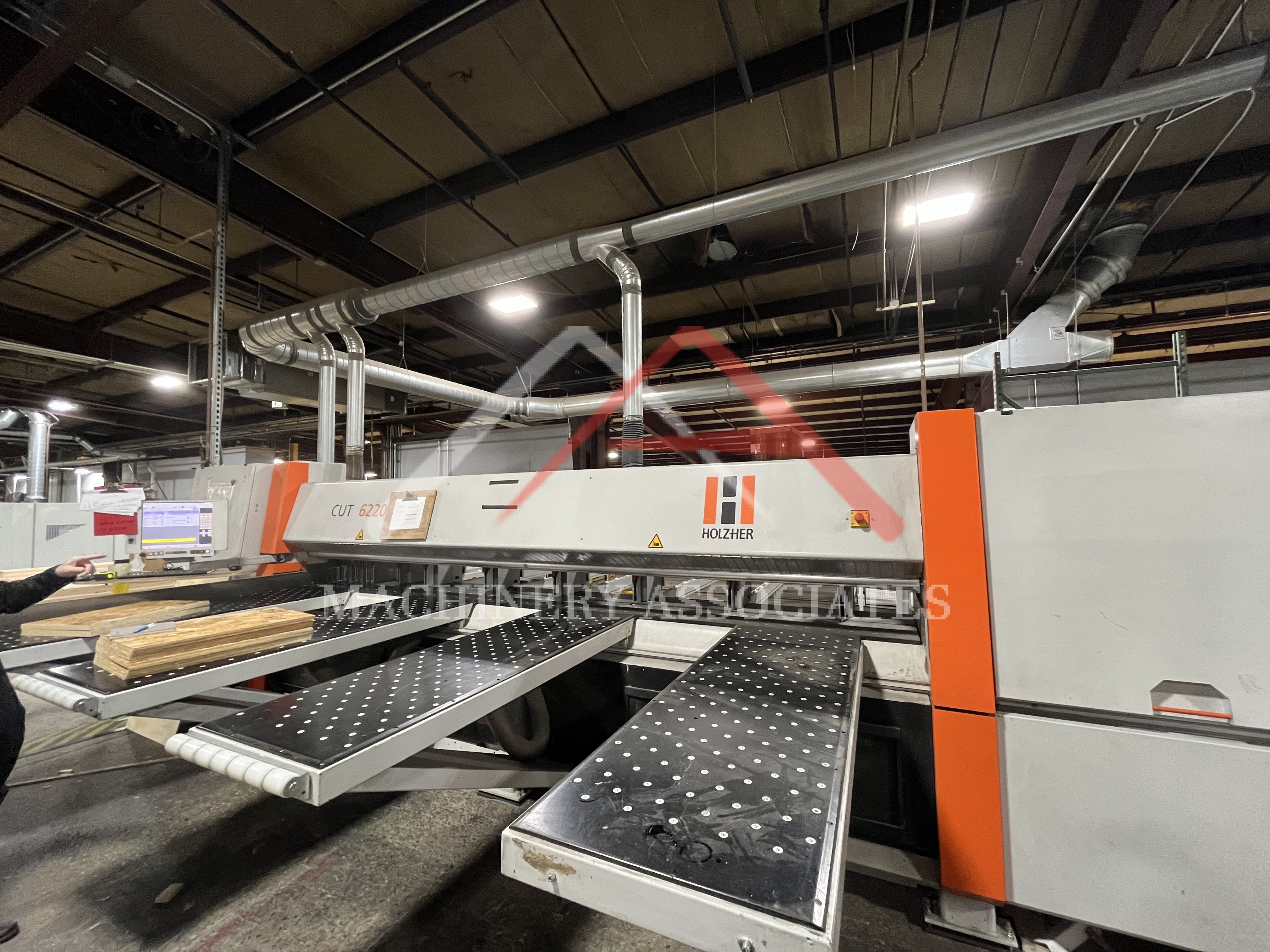

Holzher 6220 CNC Panel Saw

2015 machine was showroom demo until late 2018.

MA ID: PNC - 14145
Price: $34,500.00
Category:

Panel Saw - CNC

Manufacturer: HolzHer
Model: Cut 6220
Year of Manufacture: 2015
Condition: Very Good
Electric: 230 Voltage 60 Cycle 3 Phase
2015 Holzher 6220 CNC Beam Saw

Cutting length x cutting width (mm); 4300 x 4250

Saw Blade HP;  28hp (21kw)

Saw Blade Diameter; 430mm

Scoring Blade HP; 4hp (3kw)

Scoring Blade Diameter ; 180mm

Saw blade protrusion: 130 mm

Cutting height: 120 mm

Pressure beam opening: 190 mm

Infinitely adjustable sawing unit feed rate: up to 130 m / min

Sawing unit return speed: 150 m / min

Max. rip fence movement rate EU: 25 m / min

Rip fence return speed: 100 m / min

Outstanding reliability, maximum operating convenience

Four air cushion table (1,800 mm) in front of the saw

Pusher arm has 10 grippers!!

Graphical 3D user interface for intuitive control
OPTI-CUT and EASY-PLAN optimization software preinstalled at
the factory.



Machine was built in 15, and was factory demo until it was sold, late 18




Weight: 11000 lbs
