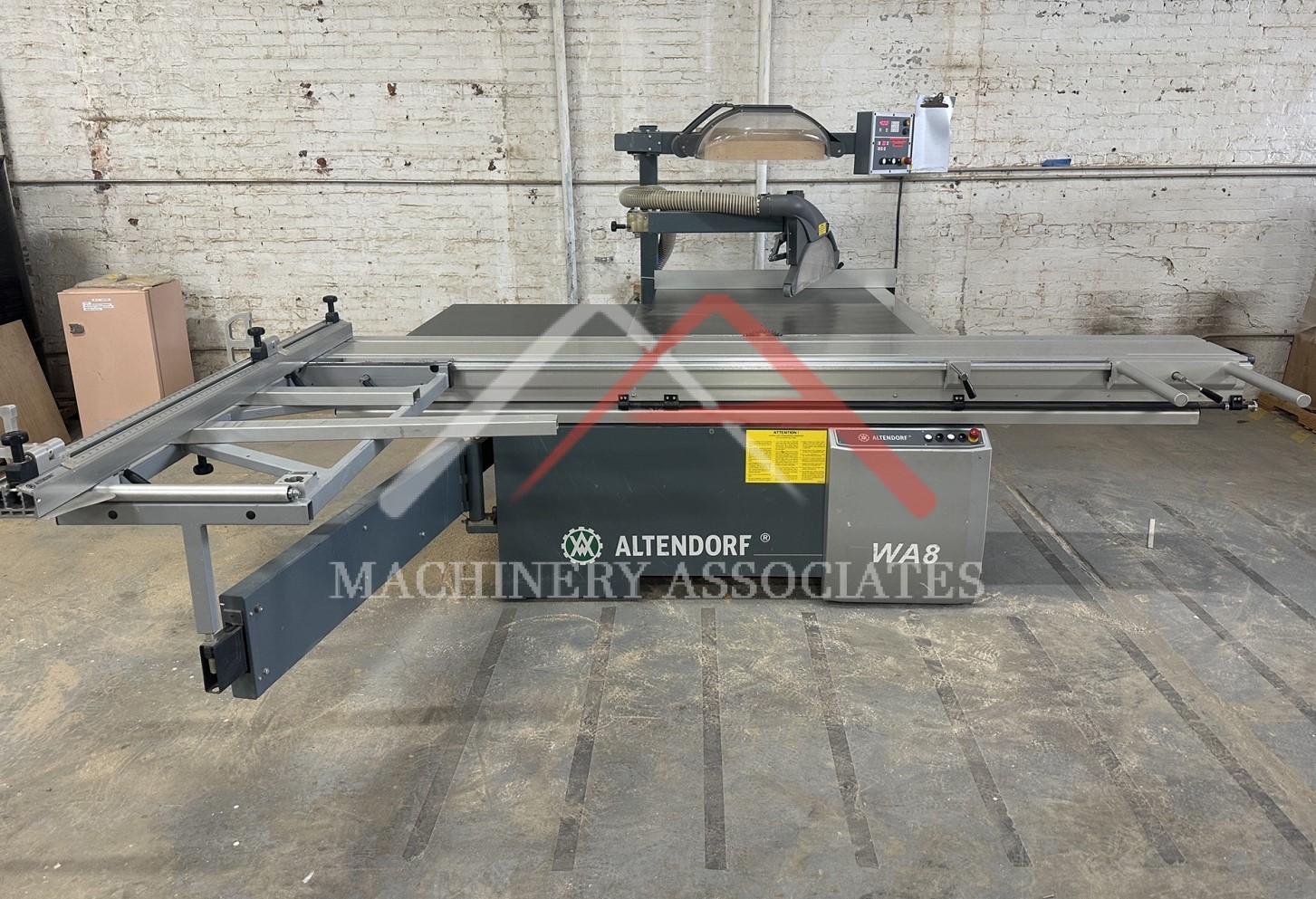

Altendorf WA8X Sliding Table Saw

Highly Sought After Machine!

MA ID: PSS - 14007
Status: Archived
Price: $19,000.00
Category:

Panel Saw - Sliding

Manufacturer: Altendorf
Model: WA8X
Year of Manufacture: 2016
Condition: Very Good
Electric: 220 Voltage 60 Cycle 3 Phase
Altendorf Sliding Table Saw

Specifications:

Arbor Tilt: 0 to 46 Degrees

Cutting Length: 3105 mm (122")

Motorized Rise, Fall And Tilt Of The Main Saw Blade Via Overhead Controls

Motorized Programmable Rip Fence

Crosscut Fence: (2) Flip Stops From 155mm (6.1") To 3200 mm (126")

Max Cutting Depth Single Side Tilting, max blade size 16" 90 degree cuts - 125
mm (4.9") * 45 degree cuts - 87 mm (3.42")*

Main Saw Motor (Single Side Tilt) 7.5hp

3 Saw Speeds 3000/4000/5000 rpm

Standard Main Saw Blade 300 mm x 3.2 mm x 30 mm

Main Blade Arbor Diameter 30 mm With Pin Holes

Max Blade Width (Dado Capacity) 15 mm

Scoring Saw Motor (1 hp) 9000 rpm

Scoring Blade Arbor Diameter 15 mm

Dust Channel Outlet (saw guard) (machine base) 80 mm (3 1/8") 114mm (4 1/2")


Shipping Footprint: 12 (length) x 12 (width) x 6 (height)
Weight: 2500 lbs
