RAIMANN VARIORIP KM310 2M WITH TIMBERMAX INFEED SYATEM

GRA=EAT CONDITIONED SAW 6-7 BOARDS PER MINUTE. GREAT CHAIN AND LOW HOURS

MA ID: RGR - 13905
Price: Call For Price
Category:

Rip Saw - Gang (multi blade)

Manufacturer: Raimann
Model: KM310 2M WITH TIMBERMAX INFEED
Year of Manufacture: 2015
Condition: Very Good
Electric: 460 Voltage 60 Cycle 3 Phase
Hours on meter: low
GREAT LATE MODEL SAW COMBO WITH TIMBERMAX INFEED. IMPROVE EFFICENCY WITH LESS HANDS ON.

Working dimensions: Cut width 12-1/4”; 13-3/8” with movable blades and pass through width of 31-1/4”.

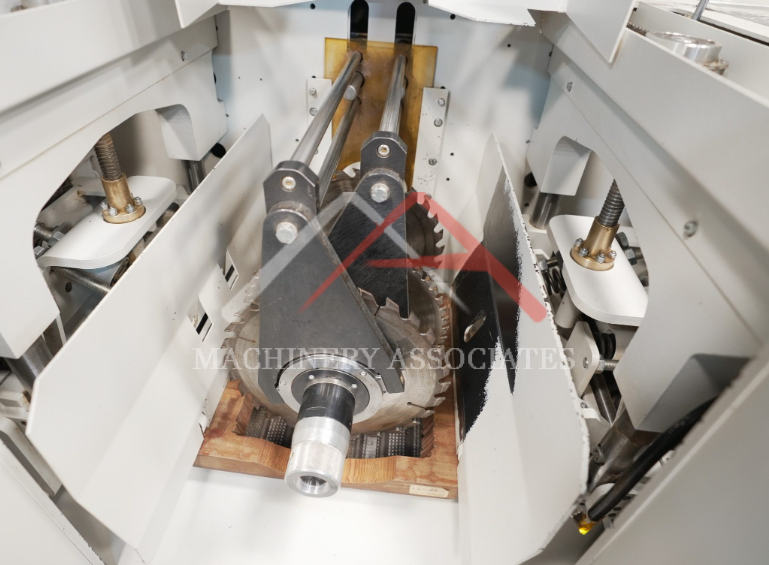

Arbor: RAIMANN “QUICK FIX” arbor with two (2) movable blades and one fixed. Dia. 3.14”.

Motor: 50 HP

Saws: Depth of cut with movable blade 3-1/2” with pressure shoe; 4-4/8” with out pressure shoe.

Chain: 13-3/8" wide; Oil lubricated with “auto shut”: spikes every 3rd link.

Pressure rollers: (4) total with protection against kickback to operator.

Blade positioning: (2) multifinctional joysticks; (1)for each movable blade. Auto fence positioning for standard widths.

Feed speed: Up to 157 FPM Chain: 13-3/8" wide; Oil lubricated with “auto shut”: spikes every 3rd link. Pressure rollers: (4) total with protection against kickback to operator.

RAIMECH E5 Infeed system for untrimmed and unedged boards.

Infeed: Conveyor 48” x 16’0”. The operator positions the board for the “best”  optimization. Auto-Fence positioning for standard widths, lasers position for maximum yield.

TIMBERMAX 3.0 Optimizing Software

3.0 Optimization Software: Optimizes throughput vs. yield, value added and production amounts. Calculation based on widths, quality of board and price yield based on operators input. All production data is recorded.

Includes: Blades and spacers. RAIMECH E5 Infeed system for untrimmed and unedged boards. Infeed: Conveyor 48” x 16’0”. The operator positions the board for the “best” optimization. Auto-Fence positioning for standard widths, lasers position for maximum yield. TIMBERMAX 3.0 Optimizing Software 3.0 Optimization Software: Optimizes throughput vs. yield, value added and production amounts. Calculation based on widths, quality of board and price yield based on operators input. All production data is recorded. Blade positioning: (2) multifinctional joysticks; (1)for each movable blade. Auto fence positioning for standard widths.




Weight: 10000 lbs
All Information including Photos and Videos are supplied by a 3rd party Source.
Please confirm all data before committing to a purchase.
*Subject to credit approval. Additional programs available.
