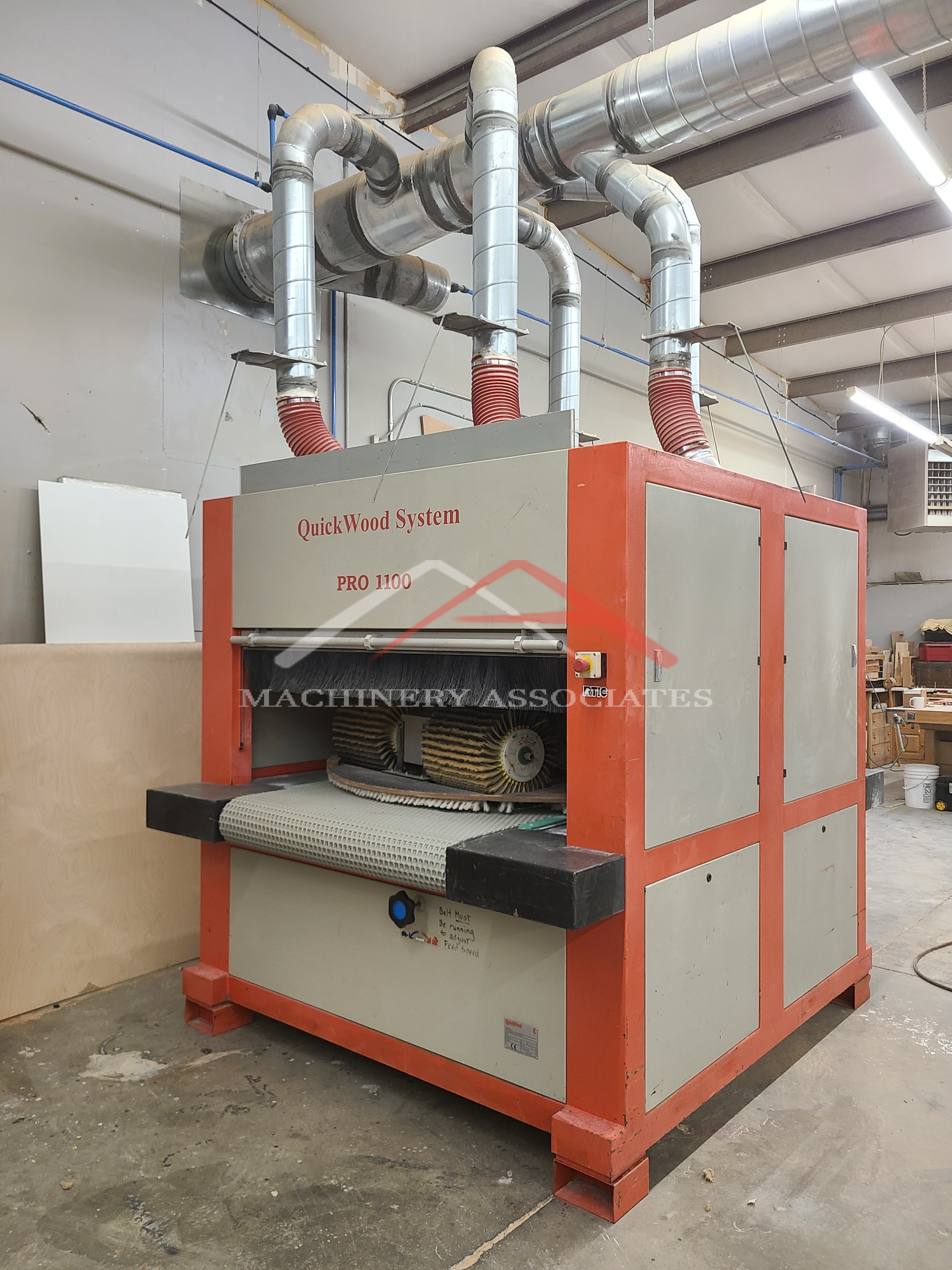

2006 QuickWood Pro 1100 Rotary Brush Finish Sander

2006 QuickWood PRO 1100 Rotary Brush Finish Sander

MA ID: FSA - 13883
Price: $14,000.00
Category:

Sand/Denib/Clean

Sand/Denib/Clean

Manufacturer: Quickwood
Model: PRO 1100
Year of Manufacture: 1998
Condition: Good
Electric: 220 Voltage 60 Cycle 3 Phase

Built for Finishing and Sealer Sanding

Alternative sanding tools can be mounted on removable spindles

Prepared for the treatment of:

Wax and oil surfaces

Structure brushing of white wood

Sanding of MDF, veneer and solid wood.

Simple operation of all adjustments

Digital display for speed of spindles, rotation, conveyor and opening height.

Cleaning and removal of fibers from the surface reducing the amount of primer needed.

43" width capacity

Rotary Carousel

Power height adjustment

Variable speed on brush head and rotation

Vaccuum parts holdown

8 spindle Brush Heads

Machine Specs:

Height max., mm 100
Width max., mm 1100

Length: infinite
Through feed width: m/min. 2-12 m/min
Spindle speed variable: 300-1150 RPM
Rotation speed variable: 3-16 RPM
Spindle length: 390 mm
Number of spindles: 8
Diameter of tool max: 350mm
Total number of QUICK-Discs/QN 256/120
Main motor: 4 kW x 1.5 SF
Frequency alternator spindles: 7.5
Conveyor motor: 1.1 kW
Rotation motor: 1.1 kW
Vacuum pump: 11 kW
Height adjustment: 0.45 kW
Dust collection duct: 4 x 140 mm
Exhaust capacity: 5600m³/h
Net weight: appx 1800kg

Note: Multiple operational videos available on request.


Shipping Footprint: 80" (length) x 95" (width) x 81 (height)
Weight: 4000 lbs
Rigger: Required on selling end
