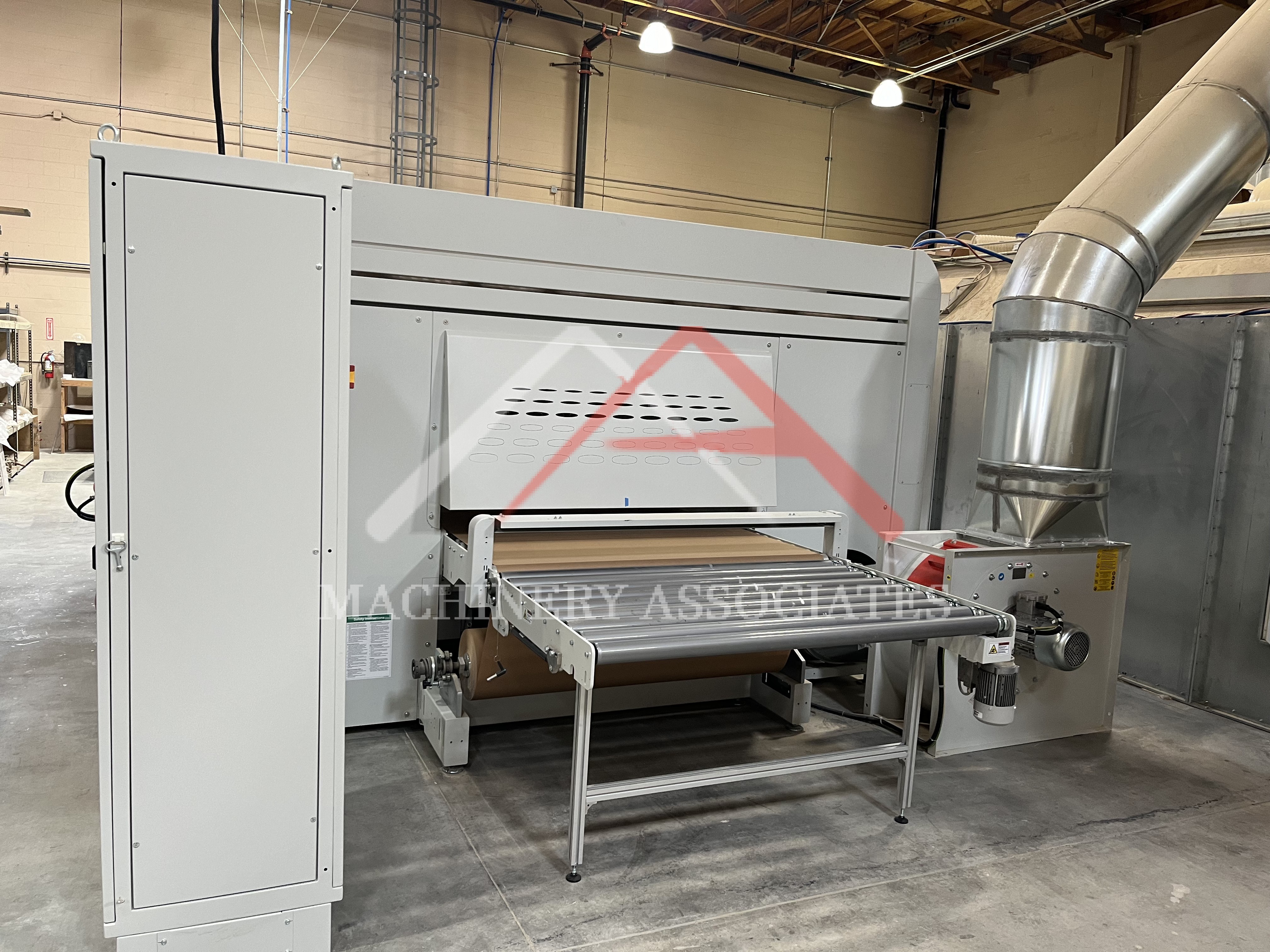

2021 Cefla Prima Recip Spray Machine

LIKE NEW CONDITION 53" Reciprocating Spray Machine complete with pumps and guns

MA ID: FCP - 13880
Price: $115,000.00
Category:

Coaters/Printers

Systems & Automated Lines

Manufacturer: Cefla
Model: Prima
Year of Manufacture: 2021
Condition: Excellent
Electric: 480 Voltage 60 Cycle 3 Phase

Machine Description:



Wide glass access doors.
lnfeed reading system by means of scanning barrier W/68 photodiodes.
Working width 1300 mm
Free rollers (at machine infeed / outfeed) L= 500 mm
Vacuum belt conveying system with continuous, disposable paper belt.
Paper tension controlled by pneumatic system.
Easy removable paper spools with 2500 m max
Ambient air inlet from the machine roof.
Overspray exhaust through double downdraft filtration dry filters on conveyor sides and mounted on ex-tractable tank.
Spraying axis driven by brushless motor and timing belt with ball bearings.
The central axis holds a removable one gun supporting arm, equipped with quick
release complete of manual height adjustment.

Predisposed for max. 4 guns, spraying equipment and predisposition
excluded),
5-way manual valve for the management of the color/product change, placed directly on the arm for the minimum waste of product.
The control of the valve and the cleaning time are supervised directly by the operator.
3 x Lacquer feeding circuits with recirculating element and washing circuit with
solvent.
Stainless steel fittings
Electronic control cabinet, pressurized, placed at in-feed of the machine from the
service side with connecting wiring system to all the users, UL version.
The management of the spraying parameters is made by means of PLC, with:
- 12.1" color touch screen display

- equipped with Ethernet RJ45 and USB port enables file import/export and the alarms/diagnostic history on PC
- Working programs set up, the receipts file can be saved in compatible Excel format
which can be visualized and modified from an external PC
- Import/export, by means of USB port, are possible by connecting a USB Pen Drive
directly to operator panel
- Measurements of the lacquered surface, of the workpieces quantity and of the
lacquer consumption. Possibility to export these data as per scheme.
- possibility to exchange data from and to centralized line control systems
- The panel is equipped with a Web Gate function to execute a remote control of
Cefla North America the panel by means of a PC connected to the Ethernet port and of a Internet Explorer Browser.



TECHNICAL FEATURES:

Machine total length: 3400 mm - 11'-2"

Machine total width: 4100 mm - 13'-5"

Machine structure height: 2400 mm - 7'-11"

Conveyor speed, adjustable by inverter: 1-3 m/min. - 3' to 10'

Maximum speed of guns holding unit: 140 m/min. - 450'

Drive motor power (flameproof execution): 0.37 kW

Guns handling system motor power: 2.2 kW

Suction motor power: 4.0 kW

Installed electric power (any complementary equipment: excluded): 7.6 kW

ATEX 2G execution, with explosion-proof motors.

Compressed air consumption (fluid management; guns+ pumps: excluded): 300 NI/min. - 11

Air mixed up with solvents exhausted outside: 8000 mc/h – 4700

Air to be made up in the room: 8000 mc/h - 4700

Paper width 1520 mm - 5'

Paper spool max. diameter 550 mm - 1'-9"

Driven infeed/ outfeed tiltable roller section; length 1000 mm

Cefla pump stand for Kremlin package




All Information including Photos and Videos are supplied by a 3rd party Source.
Please confirm all data before committing to a purchase.
*Subject to credit approval. Additional programs available.
