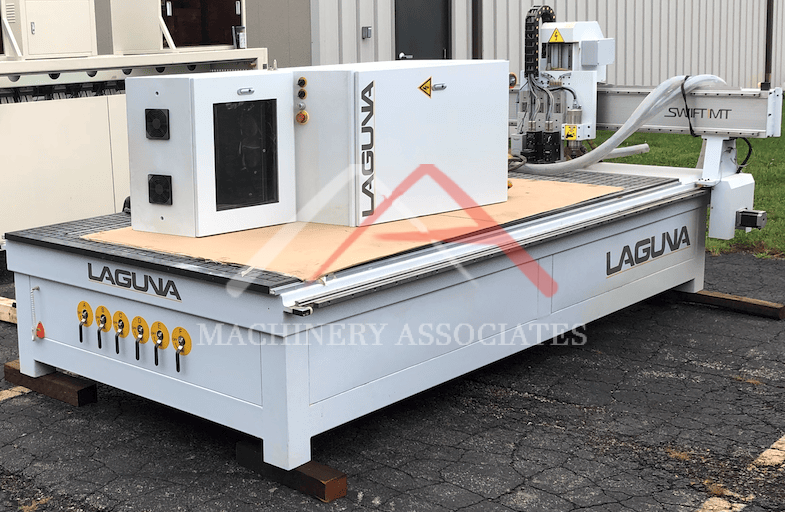

Laguna MCNC Swift MT 5X10 CNC Router

Great, late model CNC router

MA ID: RC3 - 13772
Price: $50,000.00
Category:

CNC Router (3-axis)

Manufacturer: Laguna Tools
Model: MCNC Swift MT
Year of Manufacture: 2022
Condition: Excellent
Electric: 220 Voltage 60 Cycle 3 Phase
Laguna CNC Router

Specifications:

Table Size: 60″ x 120″

Gantry:
Rapid Travel: 900″/min
Max Cut Speed: 600″/min
Gantry Height: 12″
Gantry Clearance: 7″
20mm Heavy Duty Linear Bearing On All Axes
Helical Rack-And-Pinion Drive System X & Y Axes

Spindle:
3HP Liquid-Cooled Spindle
RPM: 6,000 – 24,000
Dust Port Diameter: 4″

Equipped With:
Laguna Vision System
Tangential Knife System
Optiscout Vision System
Oversized Welded Tubular Steel Frame
6-Zone Phenolic Vacuum Table
Centralized Lubrication
WinCNC Industrial Control System
Oversized Z-Plate for Additional Working Units Extended Gantry for Full Table Coverage of All Units Helical Rack and
Ground Ball Screw in Z
Heavy Duty 25mm Linear Guides in All Axes
USB, Ethernet and WiFi File Transfer


Shipping Footprint: 69 (length) x 160 (width) x 78 (height)
Weight: 10000 lbs
